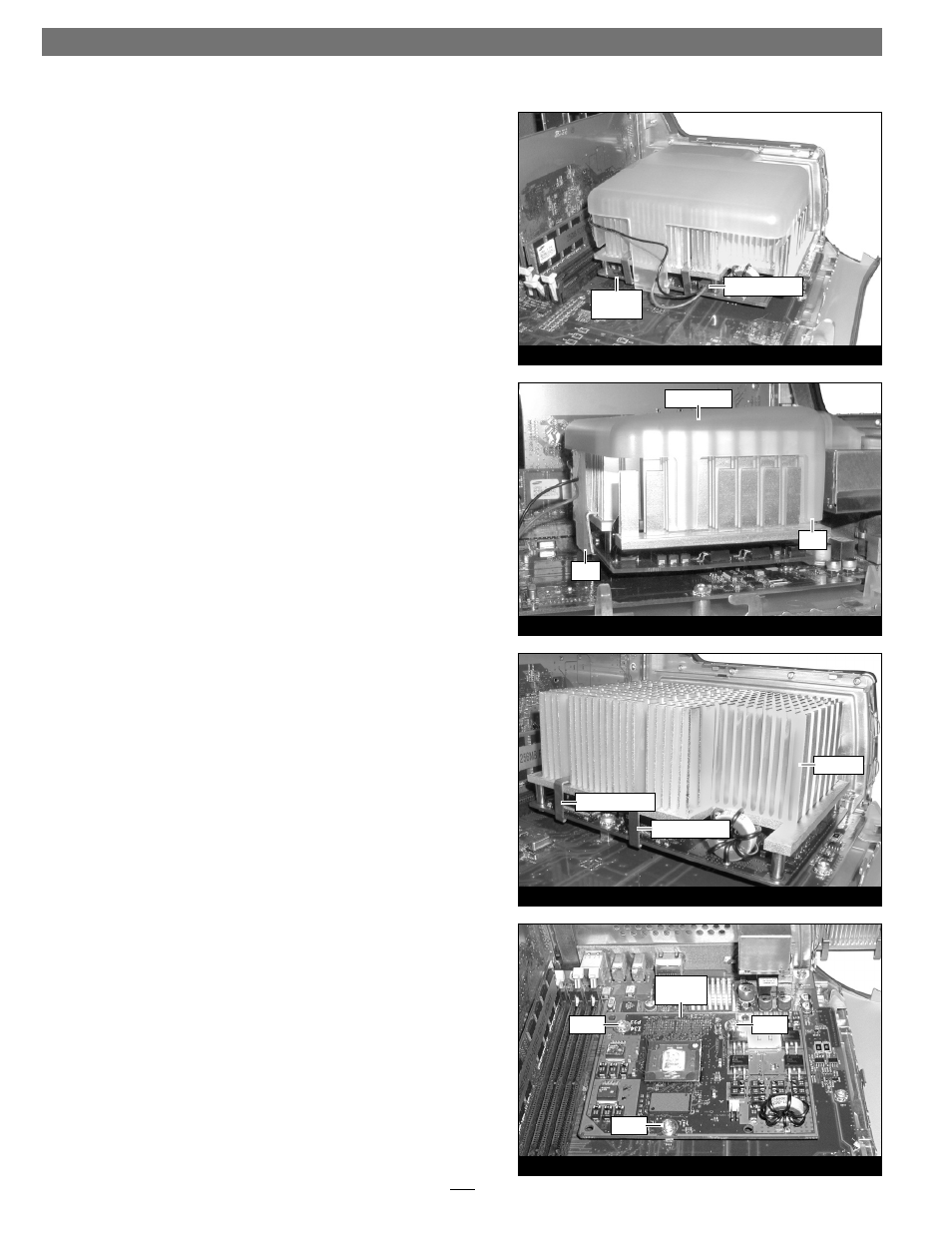

Installation—Digital Audio Models
Remove Fan Assembly
This section covers the removal of the fan assembly found on some
Digital Audio models. If your machine does not have a fan assem-
bly covering the processor heat sink, skip to “Remove Heat Sink”
below.
1. Locate and carefully disconnect the 2-pin connector from the
processor card (Figure 23).
2. Unlatch the fan assembly’s clips from the processor card and
the heat sink, then lift the fan assembly out of the case and set it
aside.
Remove Heat Sink
Locate the clips securing the processor heat sink to the processor card
(Figure 25); your heat sink may appear different from what is pic-
tured. Using caution to avoid touching the processor card, grasp one
of the clips securing the heat sink with needle-nose pliers, between
the heat sink and processor card. Pull down and away to unhook
one side of the clip from the processor card (Figure 25). Push the clip
away from you to unhook it from the other side. Repeat these steps
with the other clip. Once the clips have been unhooked, gently lift
the heat sink and clips away from the processor and set them aside,
but not on the logic board.
Remove Processor Card
Remove the three screws securing the processor card to the logic
board (Figure 26). Grasping the processor card by its edges, carefully
lift it straight up and away from the logic board.
