Installation—QuickSilver 2001 and 2002 Models

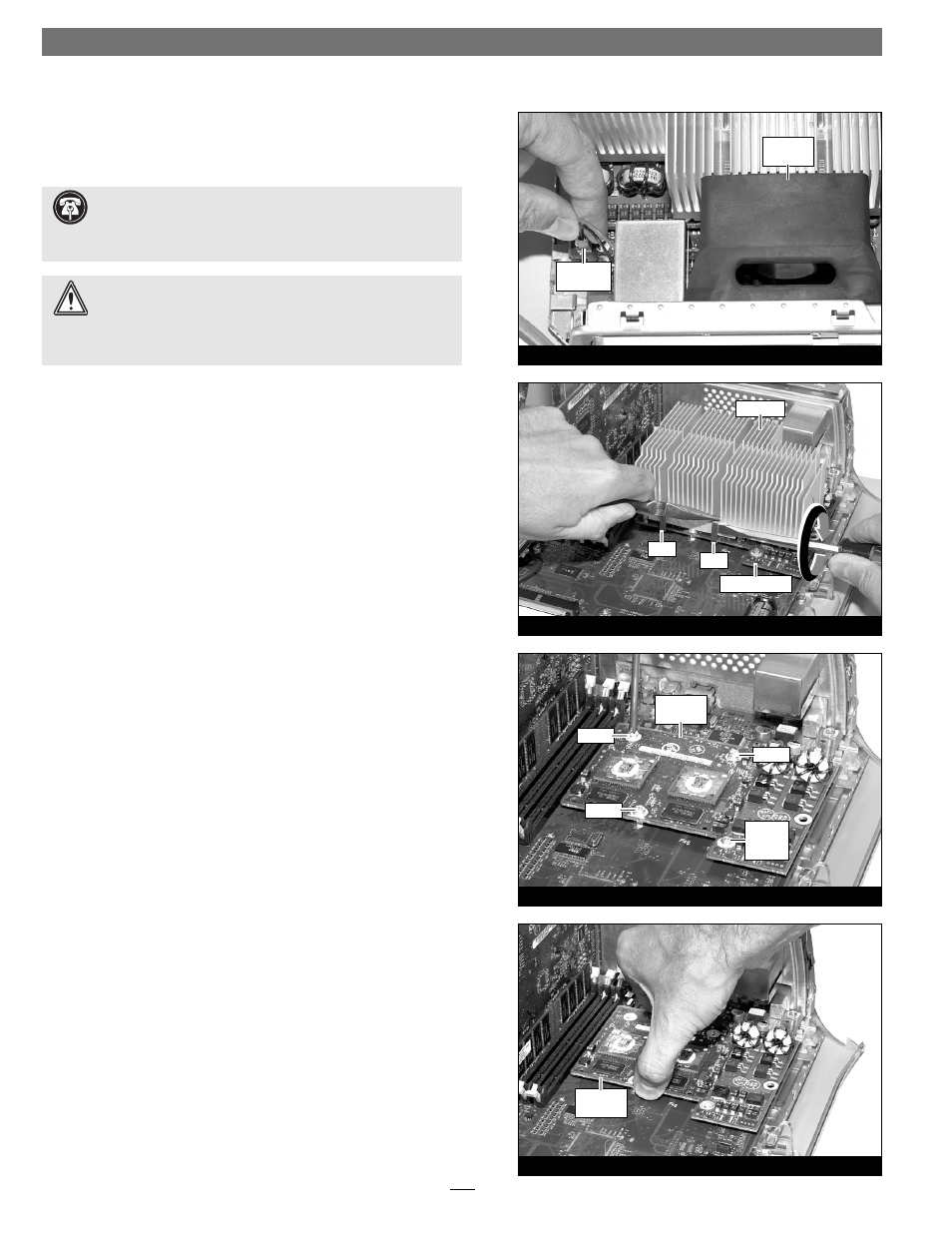

2. Locate and carefully disconnect the 2-pin fan power connec-
tor from the logic board, and then lift out the fan assembly
(Figure 42).
Remove Heat Sink
With the front of the computer facing you, locate the clips securing
the heat sink to the processor card (Figure 43). Carefully insert a fl at
blade screwdriver between the right clip and the edge of the heat sink;
do not touch the edge of the processor card. Using extreme cau-
tion, press down on the edge of the clip with needle-nose pliers, and
twist the screwdriver to unhook one side of the clip from the proces-
sor card (Figure 43). Push the clip away from you to unhook it from
the other side. Repeat these steps with the left clip. Once the clips
have been unhooked, gently lift the heat sink and clips away from the
processor card and set them aside, but not on the logic board.
Remove Processor Card
1. Remove the four screws securing the processor card to the logic
board (Figure 44); set aside the indicated screw and do not reuse it.
2. Grasping the processor card by its edges, carefully lift it straight
up and away from the logic board (Figure 45).
Support Note: The following steps address the removal of
your system’s processor card heat sink. Please note, the dual
processor heat sink from a QuickSilver 2001 model is pictured, but
the procedure to remove the single processor heat sink is identical.
WARNING: Verify that the power cord is disconnected from
your Power Mac before you remove the heat sink and proces-
sor card. The original processor card is secured to the logic board
with four screws, one of which carries +12V and could spark if it is
grounded when the system is on.
