11

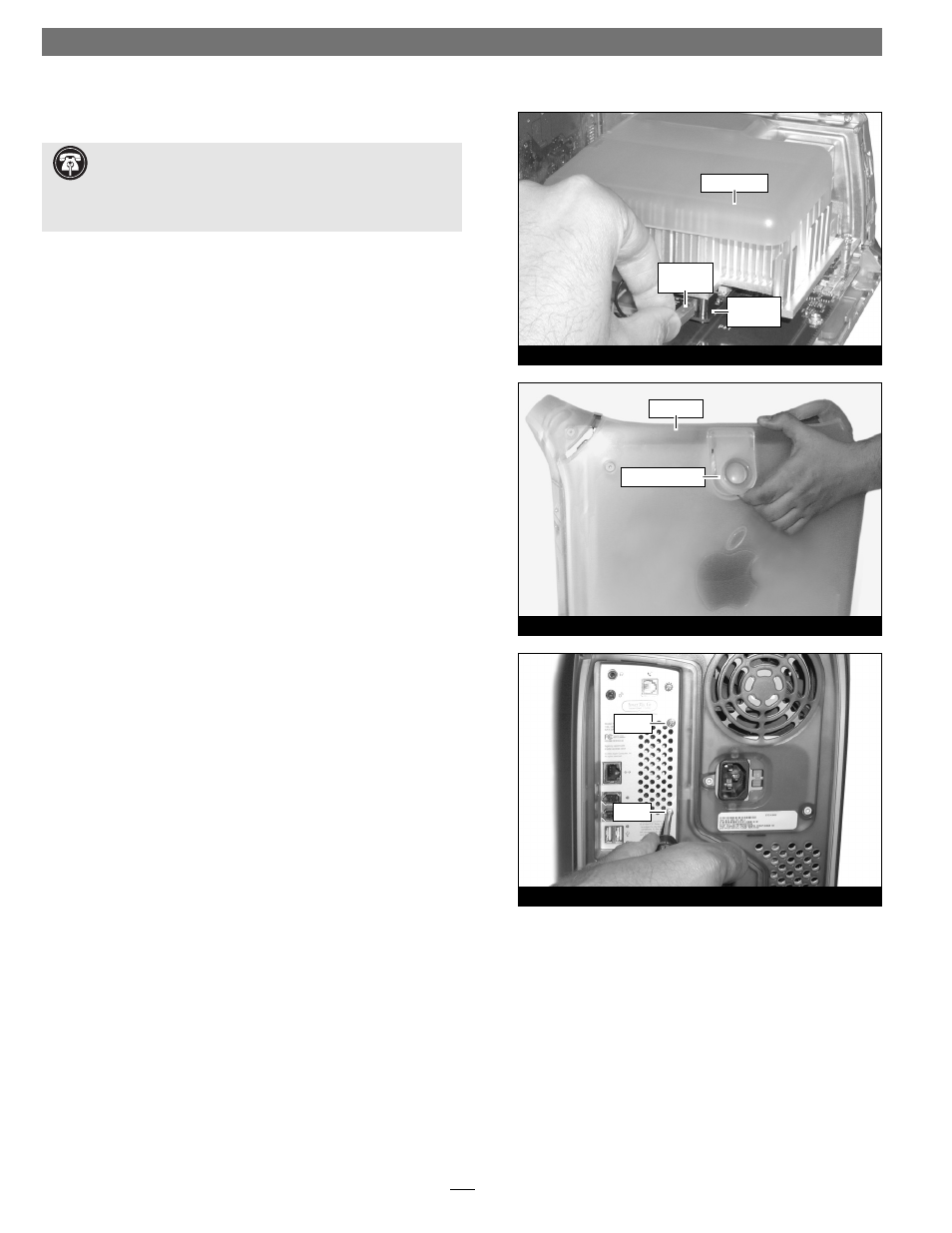

Reinstall Fan Assembly and Close Computer
1. Slide the fan assembly back over the heat sink, making sure the
fan assembly’s clips engage the Encore/ST card and the heat sink
(Figure 35). Remove the foam covering the 2-pin connector on
the edge of the Encore/ST card, and then carefully plug in the
fan’s 2-pin connector (Figure 35).
2. Raise the side panel back into place (Figure 36).
3. Using the two screws you removed previously, secure the fan
assembly to the back plate of the computer (Figure 37).
4. Return the computer to your computing area if necessary, and
reconnect the power cord and peripheral cables to the computer.
Turn On Computer
Turn on your Power Mac; your accelerated machine should boot nor-
mally. Your installation is now complete.
Figure 37
Figure 36
Figure 35
screw
side panel
2-pin
connector
Encore/ST
card
fan assembly
raise release latch
screw
Installation—Digital Audio Models
Support Note: The Encore/ST processor card operates reli-
ably in Power Mac G4 Digital Audio models with or without a
fan covering the heat sink. If your system does not have a fan assem-
bly, leave the piece of foam covering the 2-pin connector on the edge
of the Encore/ST card in place; skip steps 1 and 3 below.
