2. X11CA Hardware Setup
Hardware Control-© 2002 Ronan Engineering 10
2.1.4 Binalarm Module: Part NO: X11CA-2000
The double window Bialarm Module contains two channel alarm logic with 2-
watt incandescent or optional LED type indicators illuminating a 3.00-inch
(76.20 mm) high by 3.00-inch wide window.

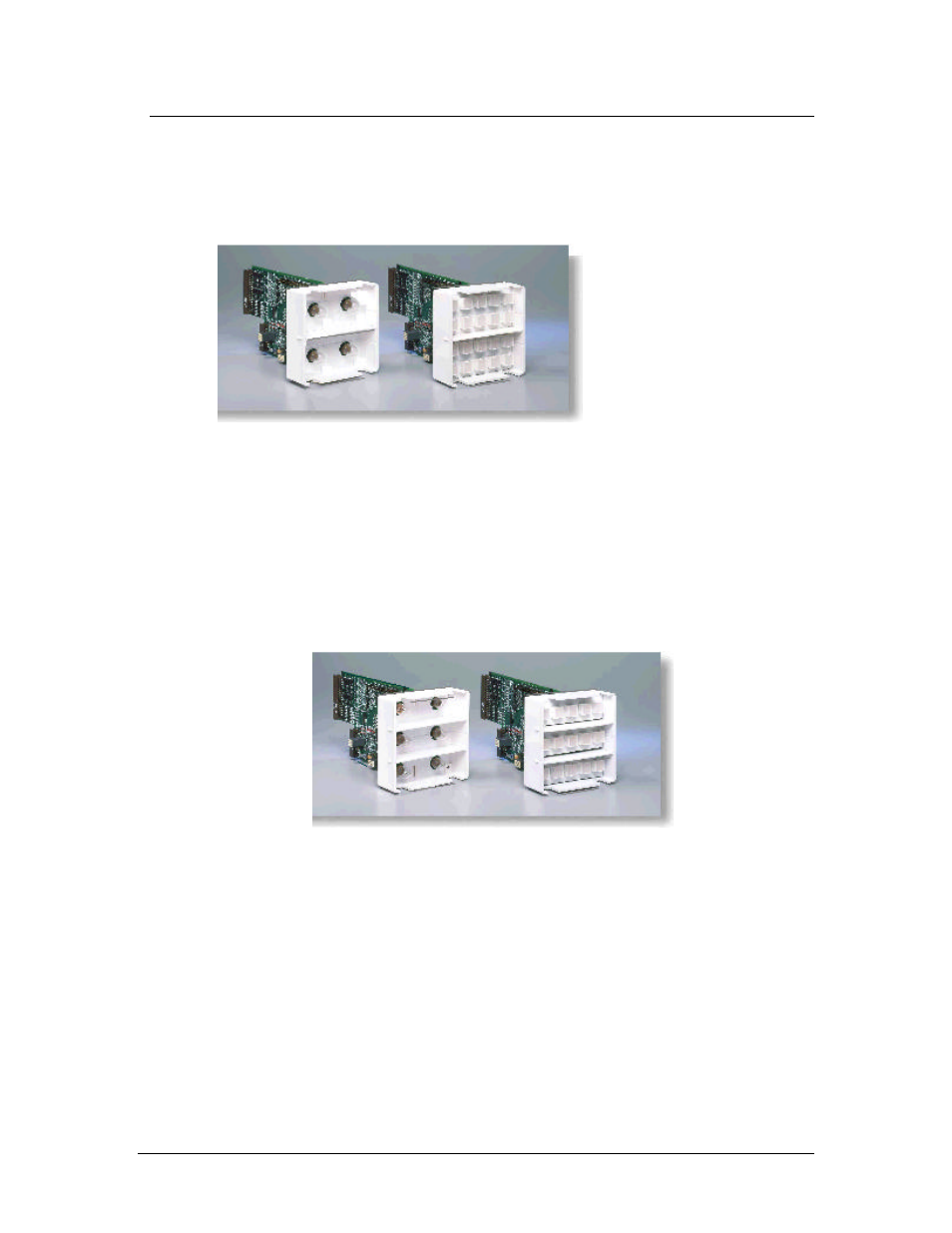

Figure 2-4 Bialarm plug in module
2.1.5 Trialarm Module: Part NO: X11CA-3000
The three window Trialarm Module provides three 0.86 inch (21.84 mm) high
by 3.00 inch (76.20 mm) wide nameplates and is illuminated by three sets of
two 2-watt lamps or LED type indicators. Each set is driven by one channel of
the three-channel alarm logic.
Figure 2-5 Trialarm plug in module
2.1.6 Quadalarm Module: Part NO: X11CA-4000
The four windows Quadalarm Module represent the highest density of
annunciation in the X11CA series. The 1.40 inch (35.56 mm) high by 1.40
inch wide window is illuminated by two 1-watt lamps or LED indicators.
