Installing item 9610 thermostat – Robertshaw 9610 User Manual
Page 3

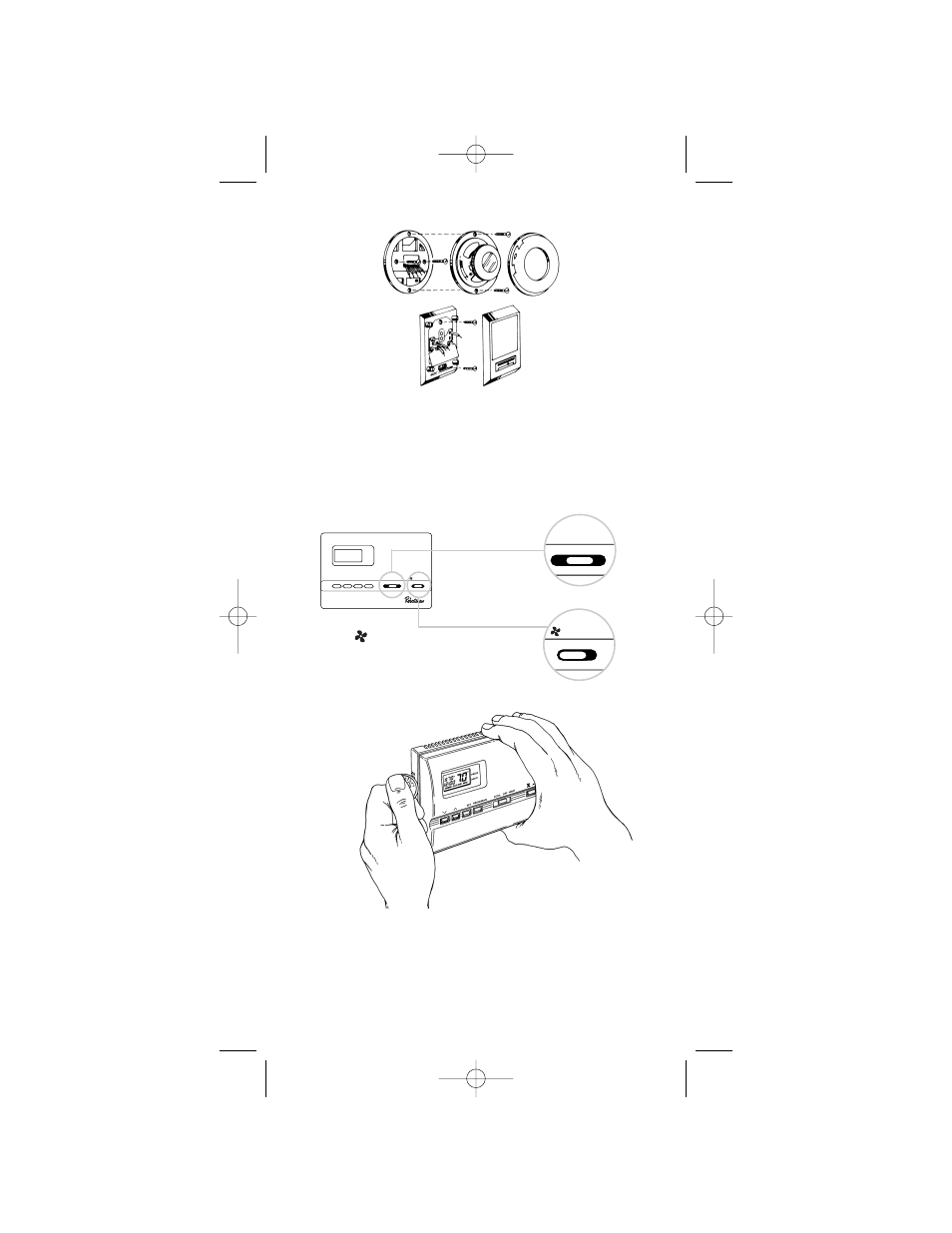

Figure 1
Installing Item 9610 Thermostat
NOTE: F
OR NEW INSTALLATIONS
,
MOUNT THERMOSTAT ON INSIDE WALL
, 4-5
FEET ABOVE THE FLOOR
.
D
O NOT INSTALL BEHIND A DOOR
,
IN A CORNER
,
NEAR AIR VENTS
,
IN DIRECT SUNLIGHT
,
OR NEAR ANY
HEAT OR STEAM GENERATING FIXTURES
. I
NSTALLATION AT THESE PLACES WILL AFFECT THERMOSTAT OPERA
-
TION
.
1. Turn power off to the heating and cooling systems.
2. Place COOL/OFF/HEAT In OFF position.
3. Place AUTO-ON
switch
Into AUTO position.
4. Remove the cover using a coin
or screwdriver.
Figure 2
5. Place thermostat against the wall at desired location. Make sure
wires will feed through opening on base of thermostat.
6. Mark placement of mounting holes. See Fig. 3. Set base aside.
3
PROG
MAN
SET PROG/MAN
COOL-OFF-HEAT
AUTO - ON
>
>
COOL-OFF-HEAT
AUTO - ON
110-655B.qxd 11/27/06 4:38 PM Page 3
