RMA-303 Indirect Charge - Parts Identification
89
LN-9268-11.4

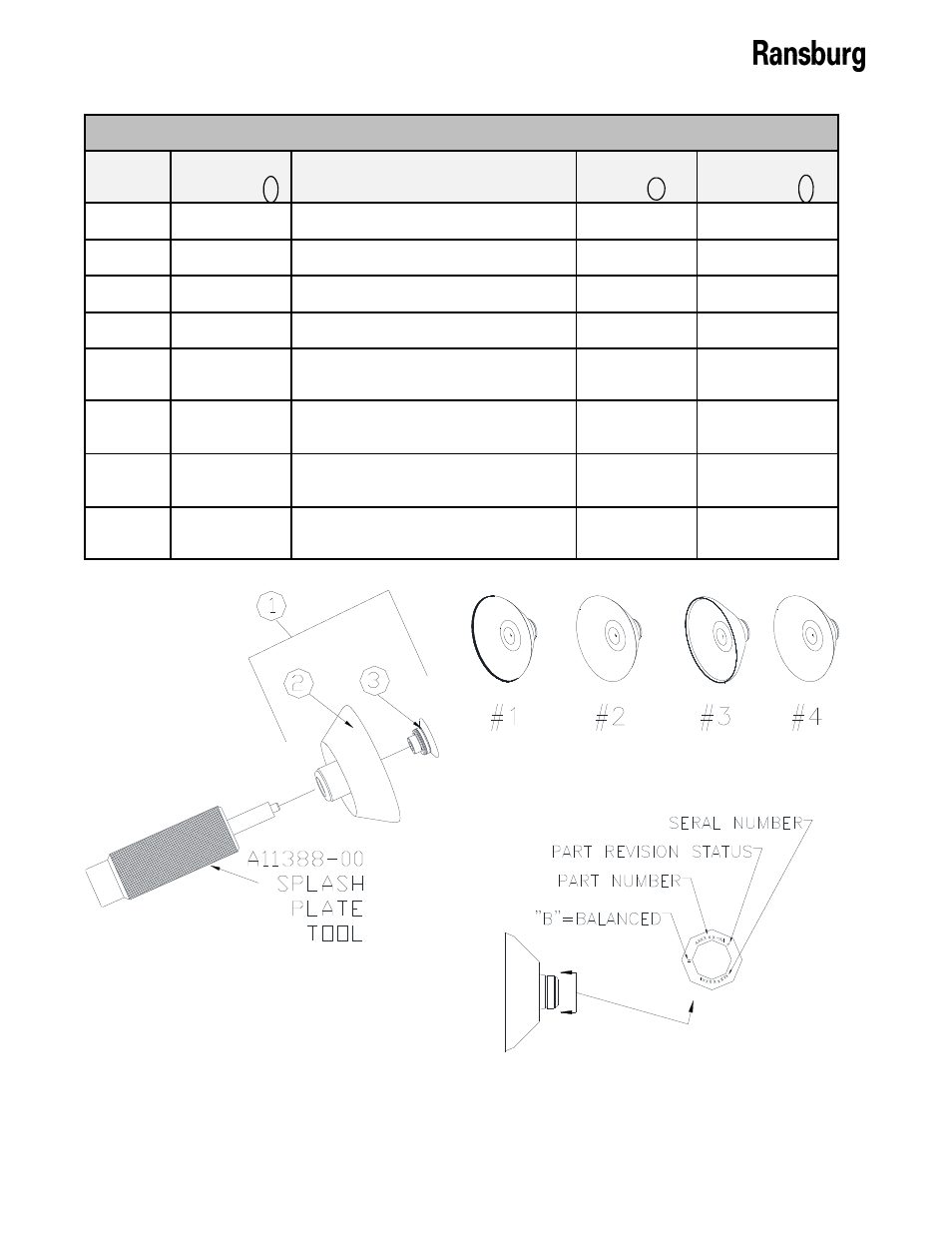

Figure 60: Bell Cup Parts Breakdown
Figure 62: Bell Cup Part Numbers/Styles
(Part number is bell cup only - no splash
plate included)
Figure 61: Bell Cup Styles
TYPICAL BELL CUP PARTS BREAKDOWN (Figure 60)
Item #
Complete
Assembly 1
Description
Cup
Only 2
Splash Plate
Assembly 3
1
A13114-00
55mm Serrated, 55mm (TISF)
A13113-00
A11269-00
2
A13114-01
55mm Non-Serrated, 55mm (TIF)
A13113-01
A11269-00
3
A12900-00
65mm Serrated, 65mm (TISF)
A12886-00
A12071-00
4
A12900-01
65mm Non-Serrated, 65mm (TIF)
A12886-01
A12071-00
5
A12900-02
65mm Serrated, 65mm W/Long Life
Splash Plate (TISF)
A12886-00
A13004-00
6
A12900-03
65mm Non-Serrated, 65mm W/Long
Life Splash Plate (TIF)
A12886-01
A13004-00
7
A12900-04
65mm Serrated, Aluminum W/plastic
Splash Plate
A12886-02
A12071-00
8
A12900-05
65mm Non-Serrated, Aluminum W/
Plastic Splash Plate
A12886-03
A12071-00
