Page 103
RMA-303 Indirect Charge - Parts Identification
LN-9268-11.4
98
A11678-XXXXX TUBING BUNDLE ASSEMBLY

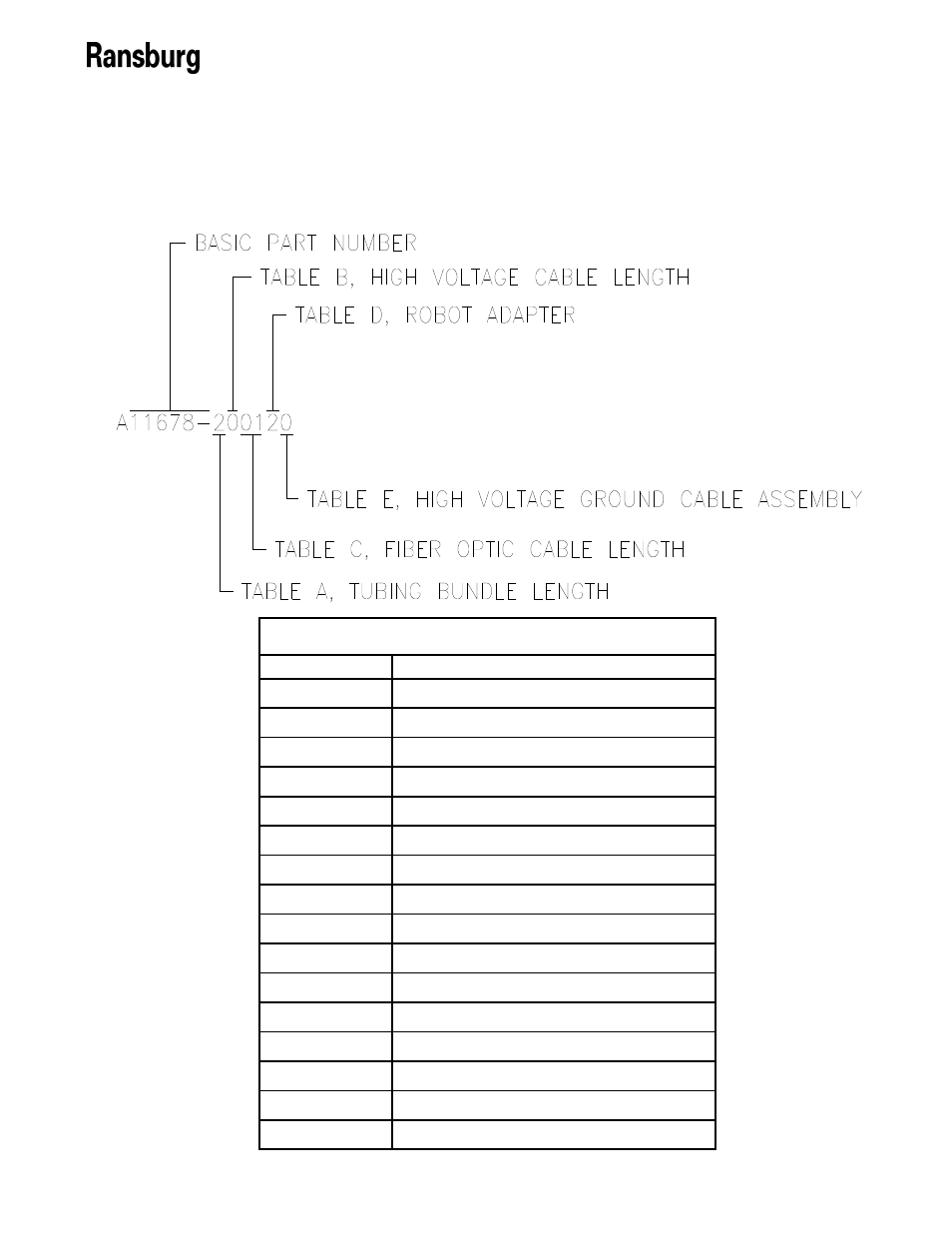

MODEL IDENTIFICATION
When ordering, use A11678-ABCD and E as indicated by Tables A, B, C, D, and E Five (5) digits
must follow the basic part number, for example:
Tubing Bundle Nomenclature
SAO
Outer Shaping Air (Outer Air)
SAI
Inner Shaping Air (Inner Air)
BA
Bearing Air Supply
BRG, RTN
Bearing Air Return
PD
Dump Trigger
DL
Dump Out
PT
Paint Trigger
P
Paint Supply
ST
Solvent Trigger
SOL
Solvent Supply
TA
Turbine Air Supply
LV
Low Voltage Cable Port
FO
Fiber Optic Cable Port
CWA
Cup Wash Air
ATI
Cup Wash Air Trigger
BRK
Brake Air
GND
Ground Cable
