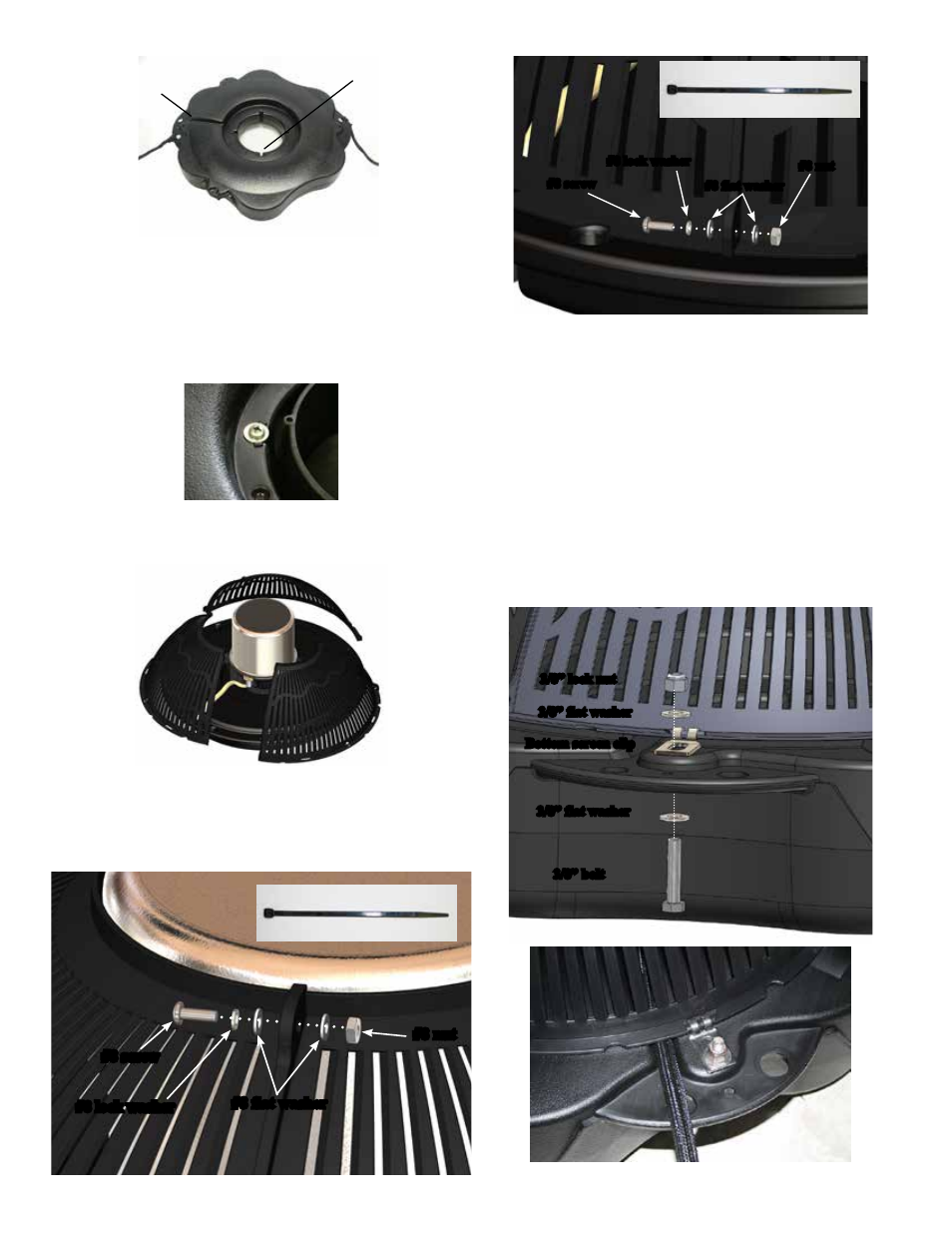

Kasco Marine VFX Series User Manual

Page 5

#8 screw

#8 lock washer

#8 flat washer

#8 nut

For quicker assembly:

Use cable tie instead

8. Make sure the cord is coming out of the power cord

guide in the float before attaching the screen to the float.

9. Use a stainless steel Bottom Screen Clip, 3/8”-16 x

1-3/8” Bolt, two 3/8” Flat Washer, and 3/8”-16 Nylon Lock

Nut to secure the screen to the float. Align a clip so the two

prongs overlap the rim of the screen as seen in the picture.

Insert bolt with washer so the top of the bolt is facing the

top of float (now in down position). Place the second

washer and the locking nut with nylon insert on the end of

the bolt and tighten using the 9/16” (14mm) Socket and

Ratchet on the nut end and the 9/16” (14mm) Wrench on

the bolt end. Tighten until snug and repeat with remaining

clip.

3/8” lock nut

3/8” flat washer

Bottom screen clip

3/8” flat washer

3/8” bolt

Bolt

holes

power cord

guide

5. Use one of the 1/4”-20 x 3-1/2” Phillips Pan Head

Screws (Part 3), one 1/4” split washer (Part 4), and a 1/4”

Flat Washer (Part 5) to secure the float. Make sure the split

washer goes between the bolt head and the flat washer.

Insert screw with washers through bolt hole in float

Tighten until snug with a Phillips Head screw driver and

repeat for 3 remaining screws.

6. Turn secured assembly upside down so the top of the

float (logo side) is face down on the flat surface. Bring the

3 bottom screen sections (part 9) together.

7. Secure the 3 sections of the screen together in 6 places

using #8 screw (Part 15), #8 lock washer (part 14), two

#8 flat washers (part 13), and #8 nut (part 12). Do not

overtighten. Alternately, use cable ties instead of hardware

for a quicker assembly of the screen.
