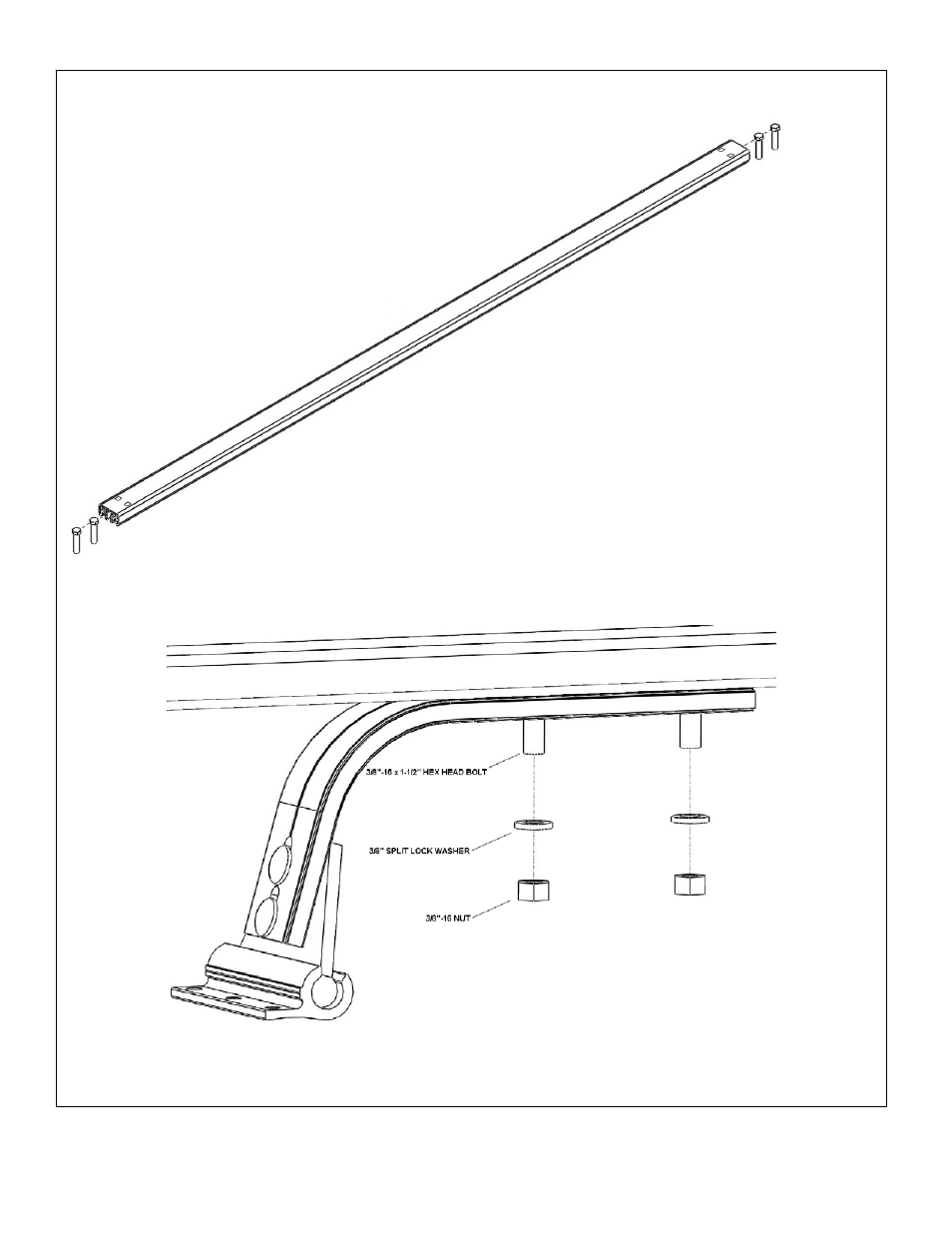

3. Crossbar assembly
Slide (2) 3/8”-16 x 1-1/2” bolts into the center channel of the rear cross bar on each end.
Remove the (4) 3/8” split lock washers and (4) 3/8”-16 nuts from the middle front and middle rear crossbar assemblies.
Loosely attach the G-mount assembly to the ribbed crossbar using (2) 3/8” split lock washers and (2) 3/8”-16 nuts for each G-
mount. Repeat for other end.
Repeat for remaining ribbed crossbars.
