HAULER RACKS, INC.
7109 31

st

Avenue North

Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM

Toll Free: 1-800-843-5445

Phone: 763-546-5620

Fax: 763-546-0933

7. Rack assembly

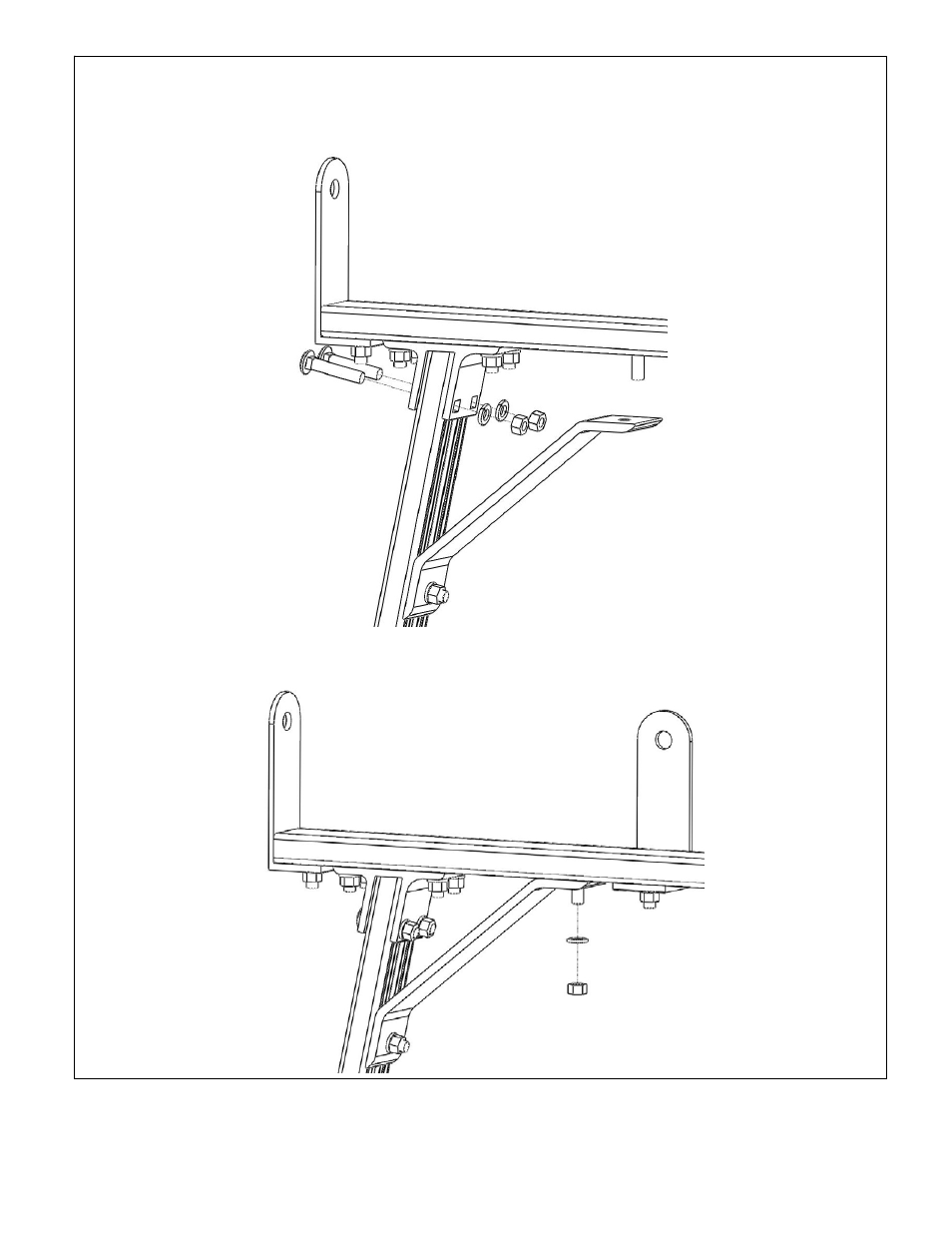

Slide the leg into the ‘T’ bracket.

Join the leg to the ‘T’ bracket by installing (2) 3/8”-16 x 2” carriage bolts, (2) 3/8” split lock washers and (2) 3/8”-16 nuts. Leave the bolts
loose. Repeat for other legs.

Slide the HD brace along the leg towards the crossbar. Align the 3/8”-16 x 1-1/2” bolt in the crossbar with the top bolt hole on the HD brace.

Loosely secure the HD brace with a 3/8”-16 nut and a 3/8” split lock washer. Repeat for other legs.
