HAULER RACKS, INC.
7109 31

st

Avenue North

Minneapolis, MN 55427-2848
WWW.HAULERRACKS.COM

Toll Free: 1-800-843-5445

Phone: 763-546-5620

Fax: 763-546-0933

4. Load Secure Post assembly

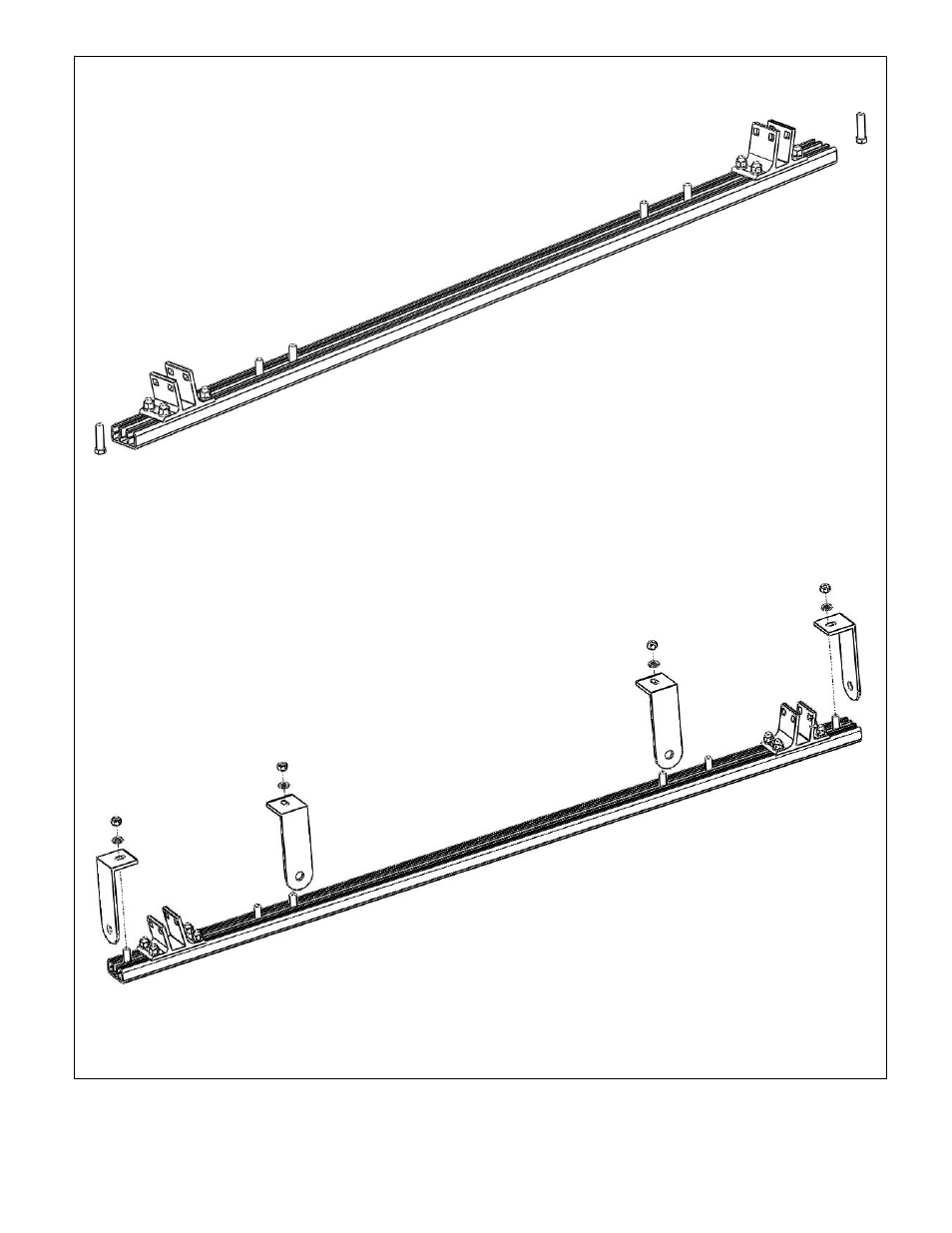

Slide in (1) 3/8”-16 x 1-1/2” bolt into the center channel of the crossbar on each end as shown below. Repeat on other crossbar.




Install the load secure posts as shown. Place the end load secure posts so they are flush against the crossbar.

Tighten the load secure posts with 3/8” split lock washers and 3/8”-16 nuts and tighten hardware. Repeat for other crossbar.
