Page 65
A-6
Technical Specifications

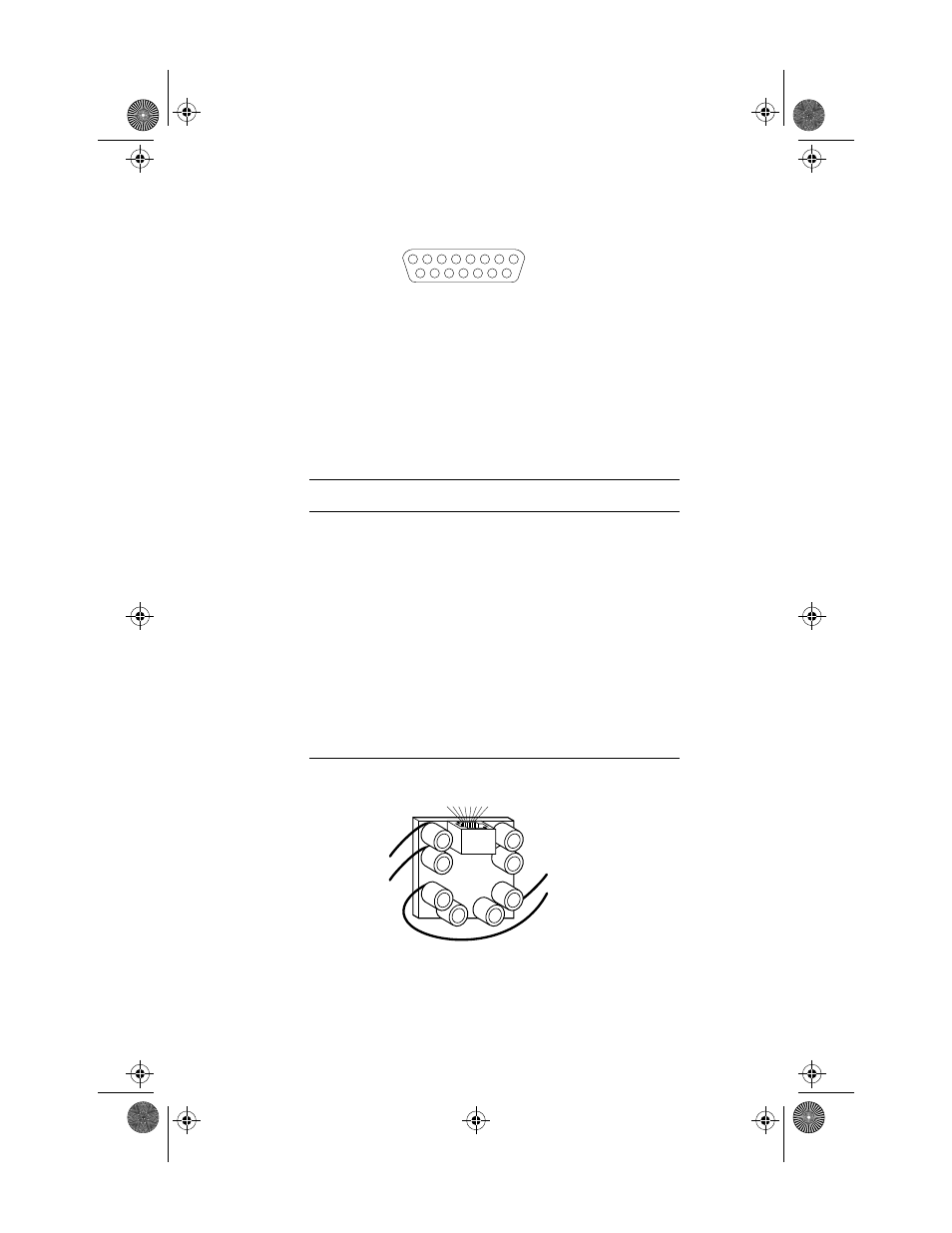

Figure B-1
AUI connector pin number assignments
RJ-45 Connector
The RJ-45 connector’s pin numbers listed below are for an Asanté
10BaseT card positioned correctly with the notch on the 8 pin mod-
ular jack oriented down. Pin 1 is the left-most pin, and Pin 8 is the
right-most pin.
Figure B-2
RJ-45 connector and biscuit block pin-outs
Pin
Circuit
Signal name
Color code
1
TD+
Data Transmit +
white-blue
2
TD–
Data Transmit –
blue-white
3
RD+
Data Receive +
white-
orange
4
Not used
5
Not used
6
RD–
Data Receive –
orange-
white
7
Not used
8
Not used
8
15
7 6 5 4 3 2 1
14 13 12 11 10 9
4
5
7
8
1 2 3 4 5 6 7 8
RJ-45
2
1
6
3
orange-white
white-blue
blue-white
white-orange
