Installing Asanté MacCon Cards 2-13
Installing the MacCon3 IIsi and MacCon 30i Cards
If you have a Macintosh IIsi or a Macintosh SE/30, use a MacCon3 IIsi
or a MacCon+ 30i to connect to the Ethernet. (The cards are not
designed for a Macintosh SE.)
Each card consists of two parts:
❏ The larger controller card, which plugs into the expansion
slot in the Macintosh.
❏ The smaller daughter card, which is mounted on the rear
access port to enable a connection to the Ethernet cable.
You connect the two cards with a ribbon cable after installing them.
Setting the Cable Type on the Daughter Card
With the MacCon+ 30iET and MacCon+ 30iE, set the cable type by
pressing the switch in the lower left corner on the daughter card.
Select the switch position, as specified in the table below, by press-
ing the switch with a pointed tool. With the MacCon+ 30iET, select
TPL if your hub supports link integrity; select TPN if it does not.
The MacCon3 card has autosensing ports and does not require a
switch to be set.

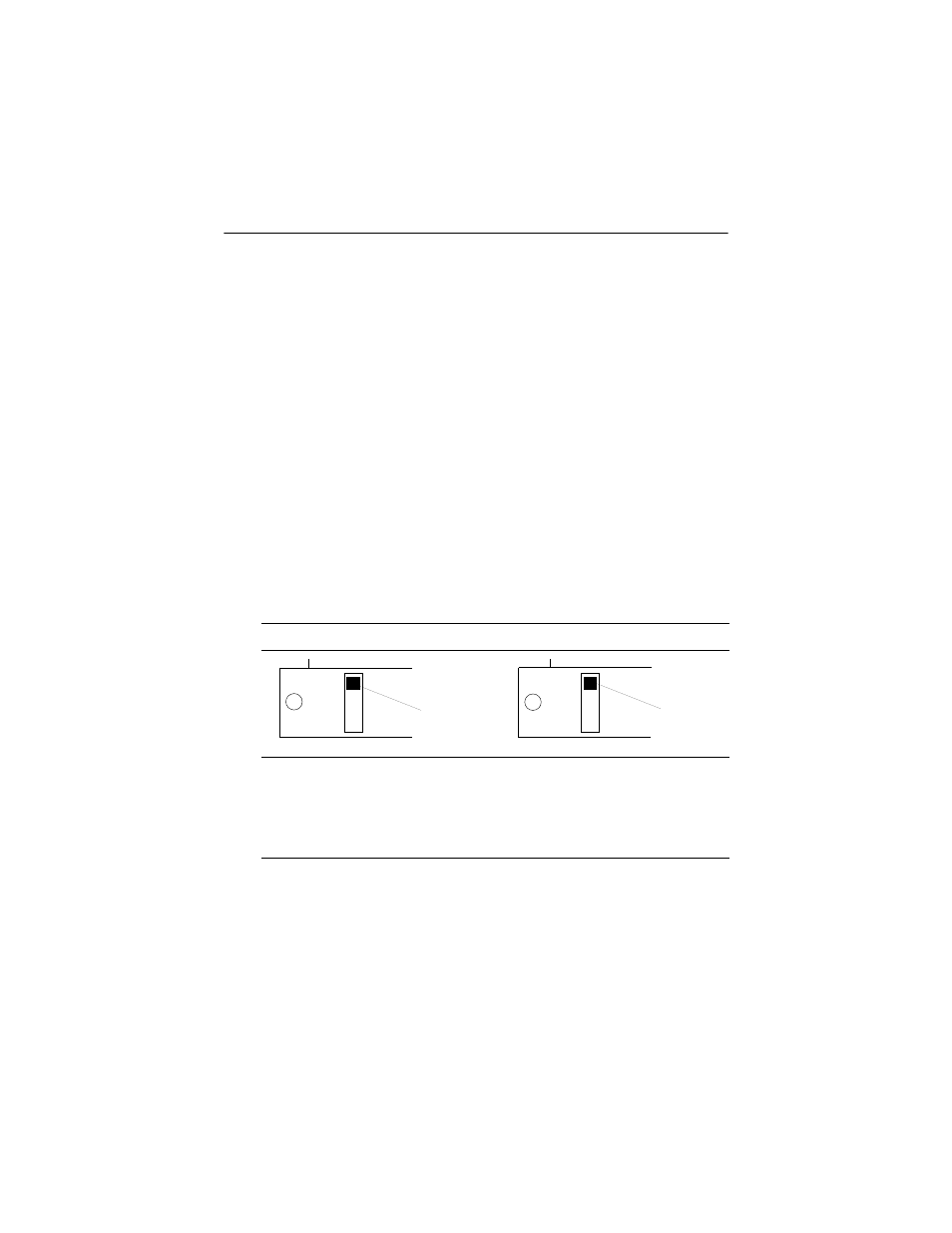

MacCon
+
30iET MacCon+ 30iE
TPL 10BaseT
Link integrity enabled
TPN 10BaseT
Link integrity not enabled
TK Thick
TN Thin
TK Thick
TPL
TPN
TK
TN
TK
Switch Switch
