Installing Asanté MacCon Cards 2-21
Installing a MacCon+ SE Card in a Macintosh SE
The MacCon+ SE network interface card allows you to connect a
Macintosh SE to an Ethernet network.
The card consists of two parts.
❏ The larger controller card, which plugs into the expansion
slot in the Macintosh.
❏ The smaller daughter card, which is mounted on the rear
access port to enable a connection to the Ethernet cable.
You connect the two cards with a ribbon cable after installing them.
∆
Note: The MacCon3 IIsi or the MacCon 30i cards are not
designed for the Macintosh SE.

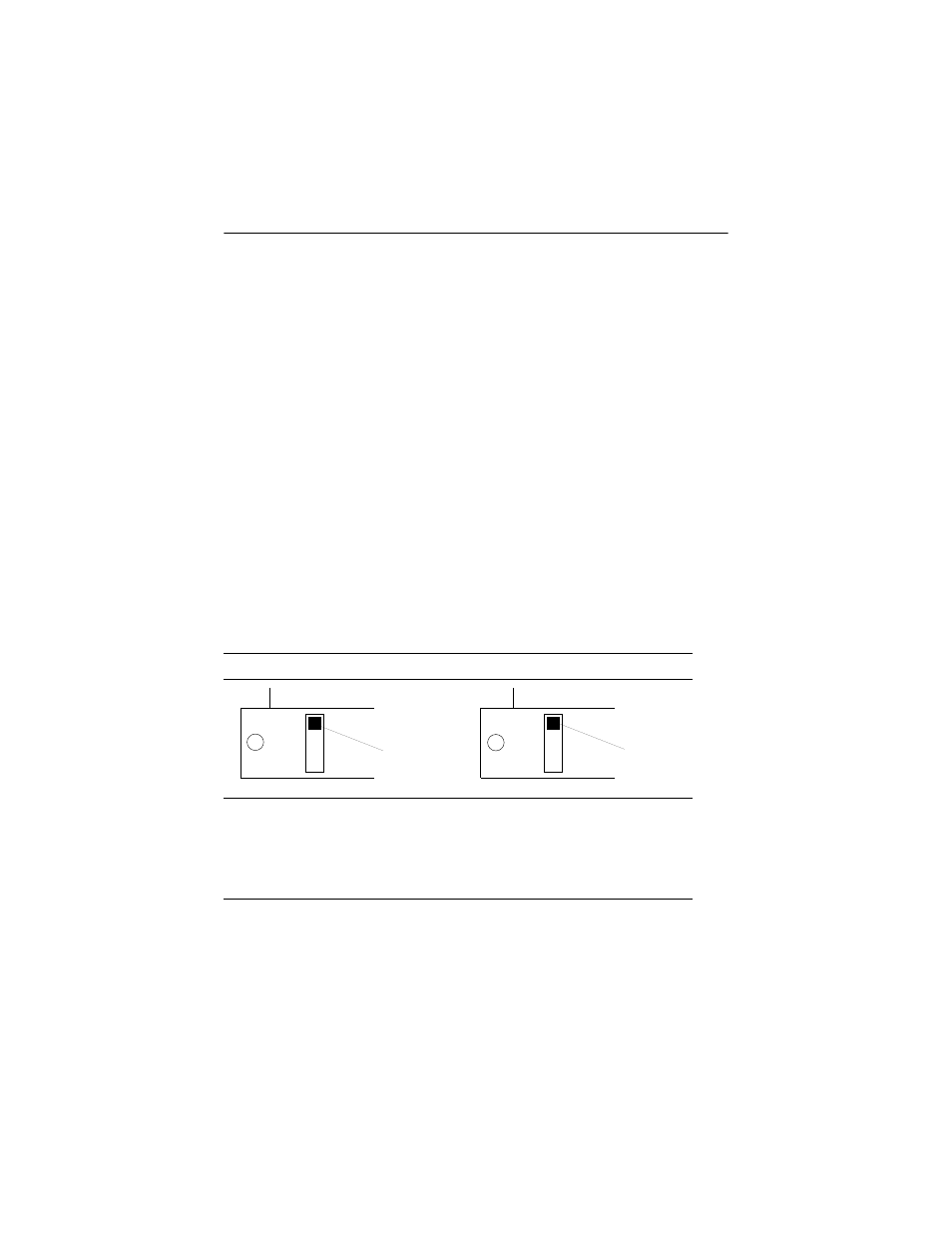

Setting the Cable Type on the Daughter Card
With the MacCon+ SEET and MacCon+ SEE, set the cable type by
pressing the switch on the daughter card (lower left corner). Select
the switch position, as specified in the table below, by pressing the
switch with a pointed tool. With the MacCon+ SEE only, select TPL if
your hub supports link integrity; select TPN if it does not.
The MacCon3 SE card has auto-sensing ports and does not require a
switch to be set.
MacCon + SEET MacCon+ SEE
TPL 10BaseT
Link integrity enabled
TPN 10BaseT
Link integrity not enabled
TK Thick
TN Thin
TK Thick
TPL
TPN
TK
TN
TK
Switch Switch
