2-14 Installing Asanté MacCon Cards
Video Options
Even though the Macintosh IIsi has only one expansion slot, you can
install both a MacCon3 IIsi card and the Radius video card. An exter-
nal interface device is not needed and high performance is main-
tained. The following table shows which MacCon cards you can
install with the Radius and SuperMac video cards and which ports are
available for connecting to the Ethernet.

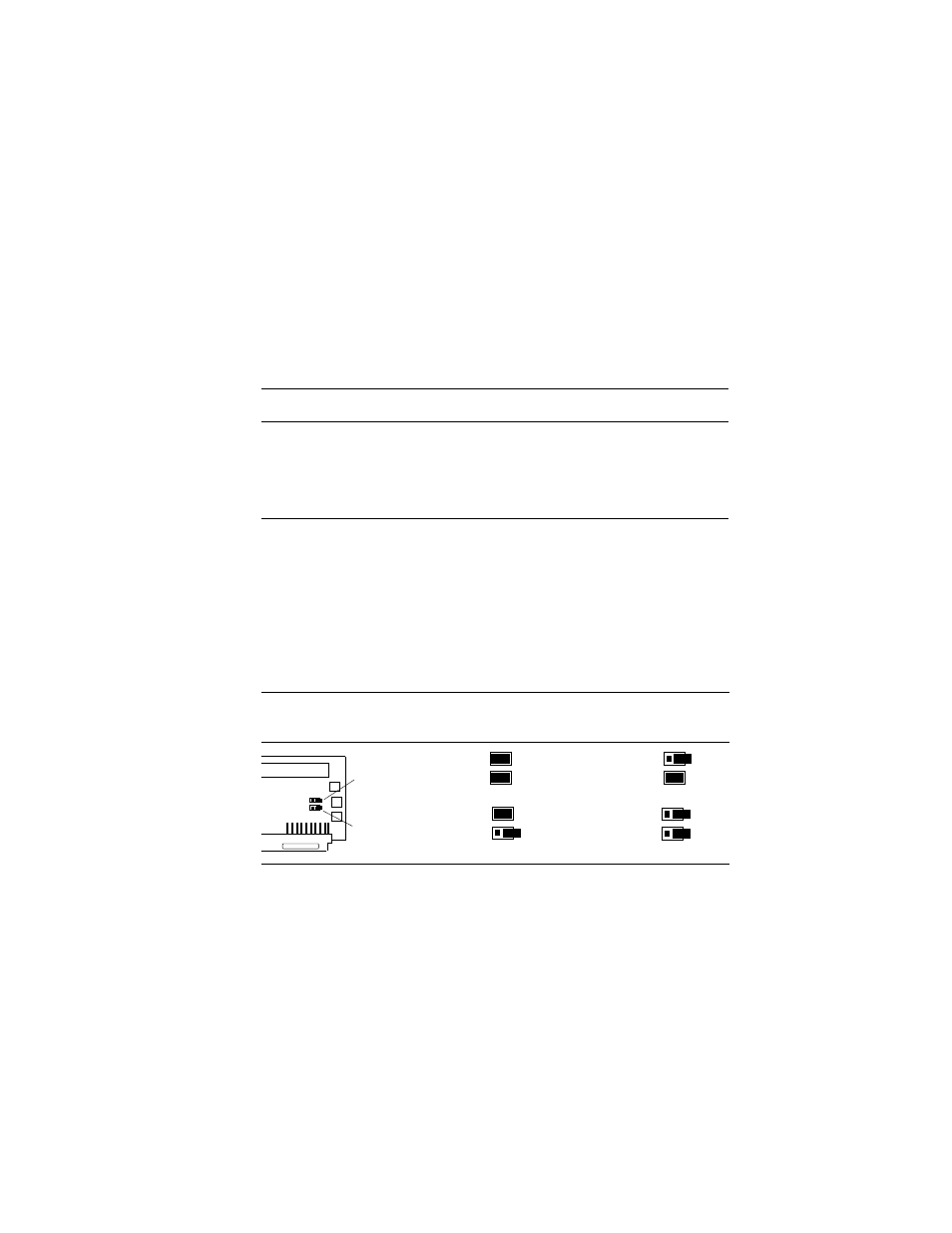

Setting the Slot Address for Two Cards
Since the two cards cannot use the same slot address, change the slot
address for the Asanté card by setting the JP1 and JP2 jumpers on the
larger controller card. If you keep the default slot address of 9 for the
video card, you can set the Asanté card address to A, B, or E, as
shown in the following table.
MacCon compatibility with third-party video cards
Video card Asanté card Ethernet ports available
Radius Pivot IIsi MacCon3 IIsi RJ-45 and BNC
SuperMac
Spectrum/8
●
24 PDQ
Spectrum/8
●
24 PDQ si
FriendlyNet IIsi AAUI with FriendlyNet
Media Adapter for
10BaseT/Thin/thick
JP1 and JP2
jumpers
Address Set Address Set
9 A
E
B
JP2
JP1
ON
ON JP2
JP1
ON
OFF JP2
JP1
OFF
ON JP2
JP1
OFF
OFF JP2
JP1
