PRODUCT OVERVIEW
Fig. 1 shows the labels and positions of the controls, indicators and
connectors on the front and top of the GT310. Familiarize yourself with
their functions, as explained below, before moving on to the Setup
Instructions and Operating Instructions.
1. Replaceable 2.4GHz transceiver module (on top of unit)
2. NCCD sensor (on top of unit)
3. NCVD sensor (on top of unit)
4. Two-line, 7-segment LCD
5. Flashing red/green indicator of operation in NCVD/NCCD mode
8
GT310

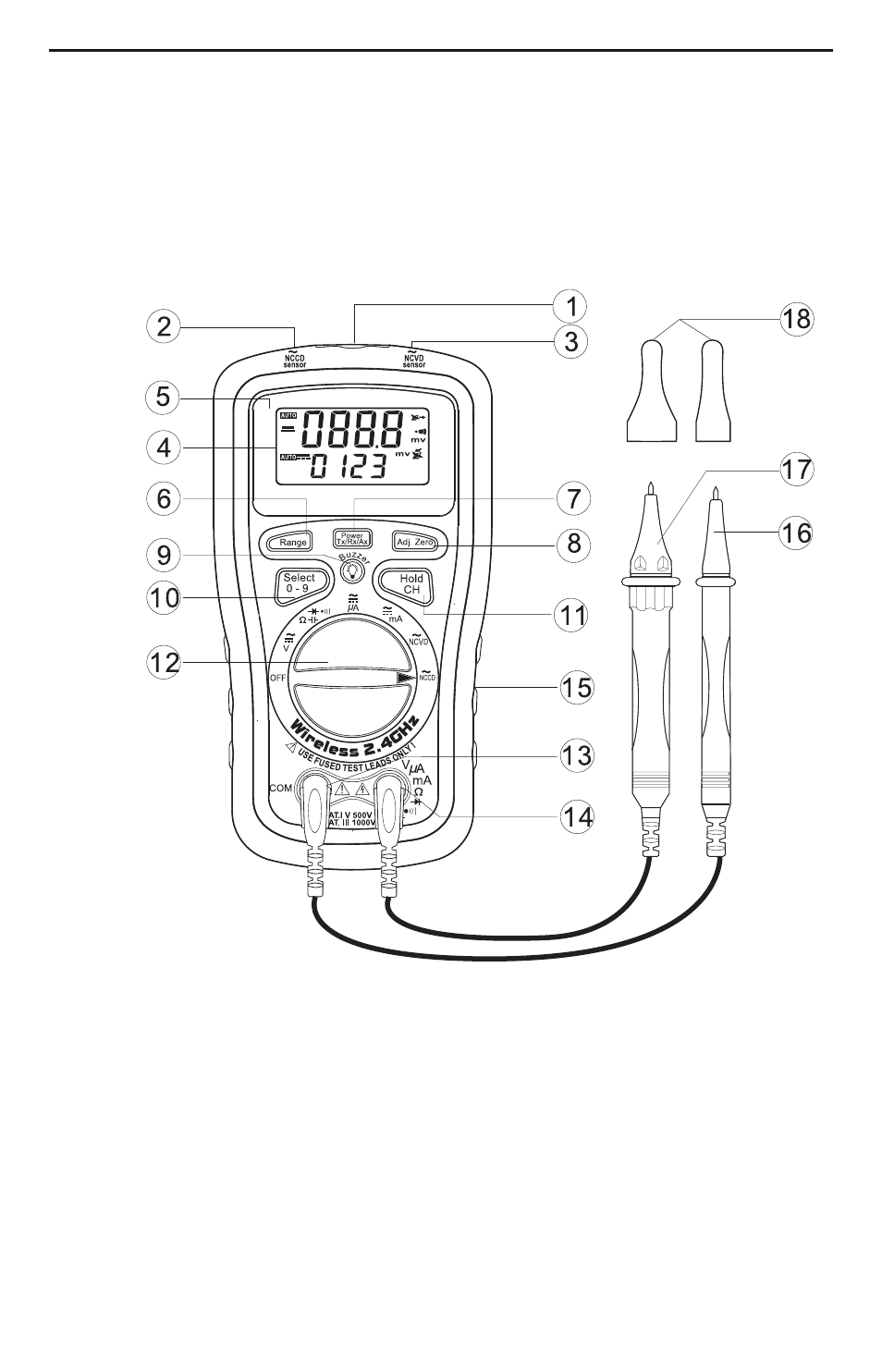

Fig. 1. The
GT310’s controls,
indicators and
connectors
