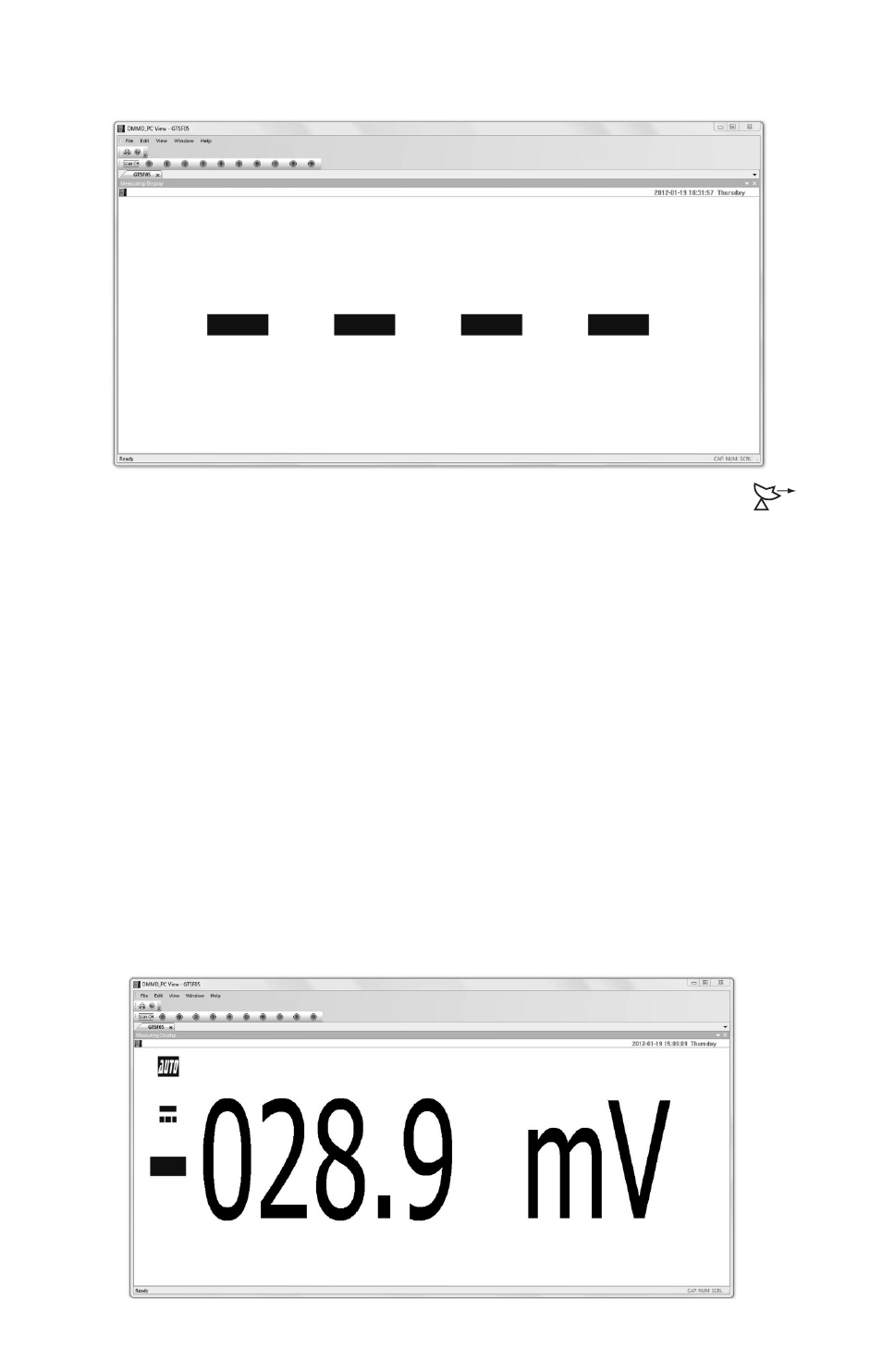

15. Plug the dongle into any open USB port on your computer. Doing so
will cause the following screen to appear.
16. On the meter, press the Power/Tx/Rx/Ax button once. The
icon will appear at right. You will next choose CH-1 as the meter’s
transmitting channel. To do so, press and hold the Hold/CH
button. When a flashing “0” (the default channel number) appears
at the right of CH- on the upper readout, quickly (within 10
seconds) press the Select/0-9 button once to advance the channel
counter to “1”. Quickly save the setting by pressing and holding
the Hold/CH button.
17. On the “DMMD_PCView GTSF05” screen, click the Scan CH
button. The program will begin scanning Channels 0 through 9.
Scanning will stop when the GT310’s transmission on Channel 1 is
detected, causing the
ᕃ button to turn green.
18. Click again on the green
ᕃ button to produce a display like the
following:
17
