To enable transmission and reception,
briefly press the Power/Tx/Rx/Ax
button a third time. This will cause both
“satellite dish” icons to appear at the right
of the display. The upper readout will
display data from your GT310 and the
lower readout will display data from the

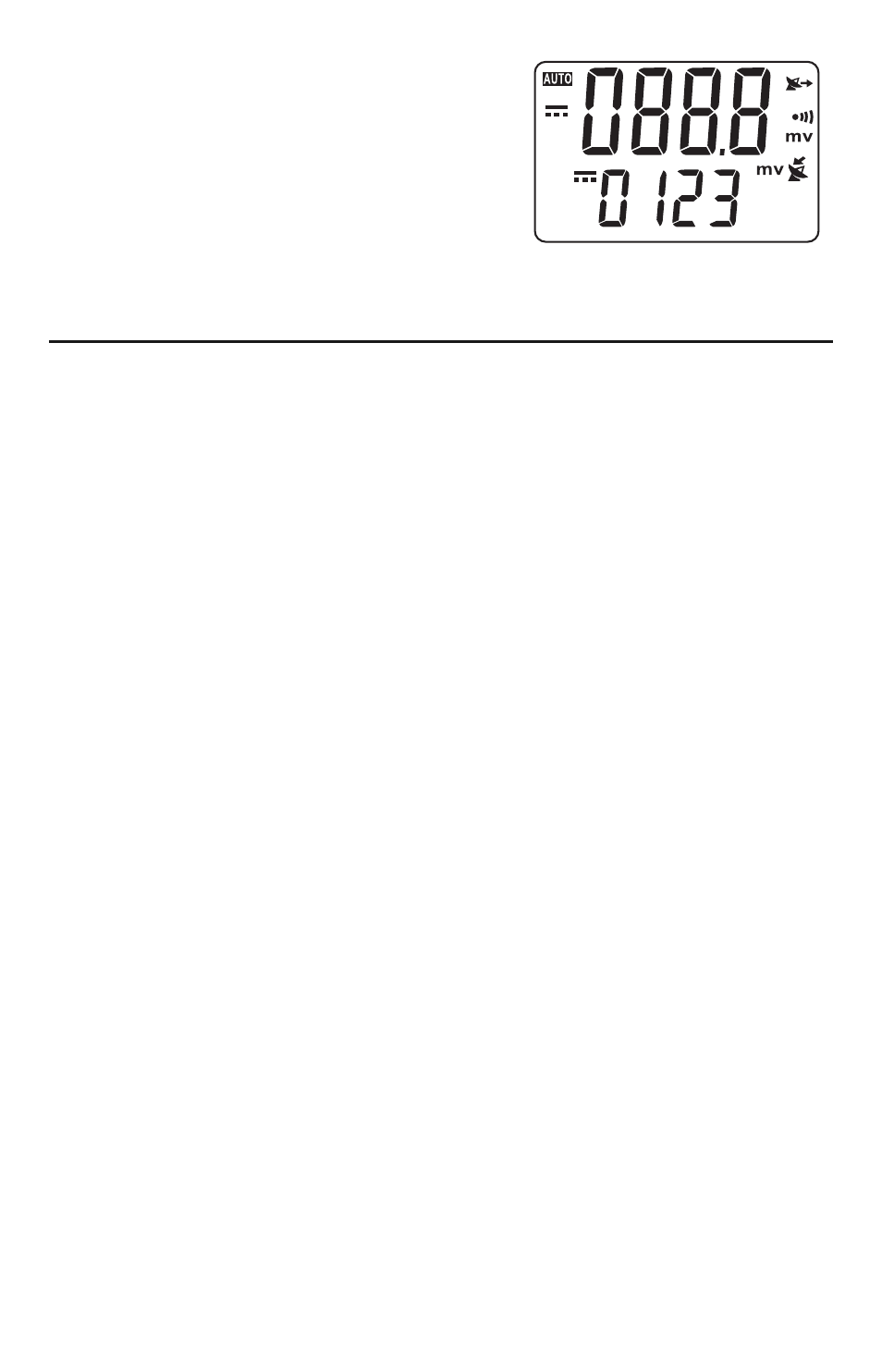

second multimeter. The composite display will look like this:
SPECIFICATIONS
GENERAL SPECIFICATIONS
• Maximum Voltage between Terminal and Ground: CAT III 1000V,
CAT IV 500V
• Test Leads Characteristics: Double sheath, soft PVC wire fitted with
500mA/500V fast-acting ceramic fuse measuring 6mm across
x 32mm long. Red lead also has unique square plug compatible with
(+) jack on meter.
• Display Type: Two-line, 3-3/4 digit (4000 count), 7-segment LCD
with 0.67 in. (17mm) high digits on the upper readout
• Sampling Rate: 3 times 1 sec.
• Maximum Voltage Measurement: DC 1kV , AC 750V
• Input Impedance in Voltage Measurement Mode: >10M
Ω
• Maximum AC/DC Current Measurement: 400mA
• Maximum Resistance Measurement: 40M
Ω
• Maximum Capacitance measurement: 100uF
• Diode Integrity Test Voltage: 1.5V
• Continuity Check Threshold: <30
Ω
with beeper
• Non-contact AC Voltage Detection Range: 50V to 1 kV or higher;
100 to 250V in “Live or Ghost” mode
• Non-contact AC Current Detection Range: 100mA to 1000A or higher
• Transmission/Reception: Half-duplex; Ten channels centered on
2.4GHz
