• A 4GB full-size SD memory card

• An analog cable for connecting the DCS800 to a TV monitor. The cable has

a male RCA plug at one end and a mini-stereo plug at the other end.

• A USB cable with a mini-USB plug on one end and a full-size USB plug on

the other end.

• Four “AA” Alkaline batteries

• An adjustable padded hand strap

• This user’s manual

PRODUCT OVERVIEW

Fig. 1 shows the names and
locations of all of the controls,
connectors and physical structures
of the DCS800. Table 1 details
how the function of each
front-panel button changes
with the console’s operating
mode. Familiarize yourself
with the labels, positions and
functions of all buttons and
connectors before moving on
to the Setup Instructions and
Operating Instructions.

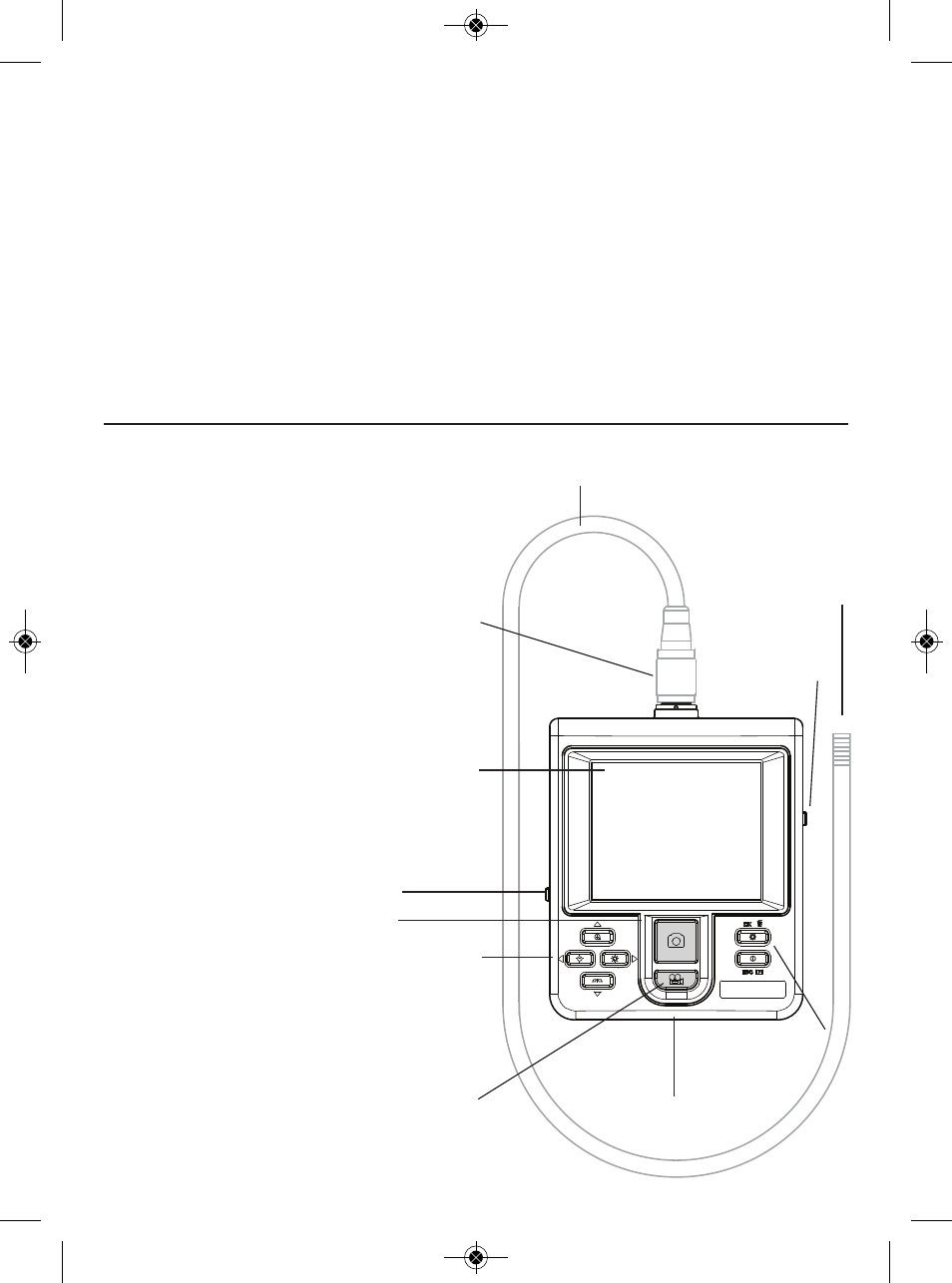

Fig. 1. The controls and

connectors of the
DCS800 console.

6

PROBE
CONNECTOR

P16181SR-M PROBE

ANALOG VIDEO
OUT JACK & SD
CARD SOCKET

CAMERA
HEAD

TWO MULTI-
FUNCTION
BUTTONS

START/STOP
VIDEO
RECORDING
BUTTON

LCD

BATTERY
COMPARTMENT
IN BACK

USB OUT JACK

SNAPSHOT BUTTON

FOUR MULTI-
FUNCTION
BUTTONS
