Page 31
Section 4: Input/Output (I/O)
02/10
31
51220 Rev. 1
4.3. 20 MA SERIAL CURRENT LOOP PROGRAMMING
Procedure steps skipped or omitted during this process may cause certain features to
not operate or function as expected. The 20 mA output is passive.
Note:
The PC104 Weight Controller Kit (27104) must be installed for this output to
be available.
Procedure:

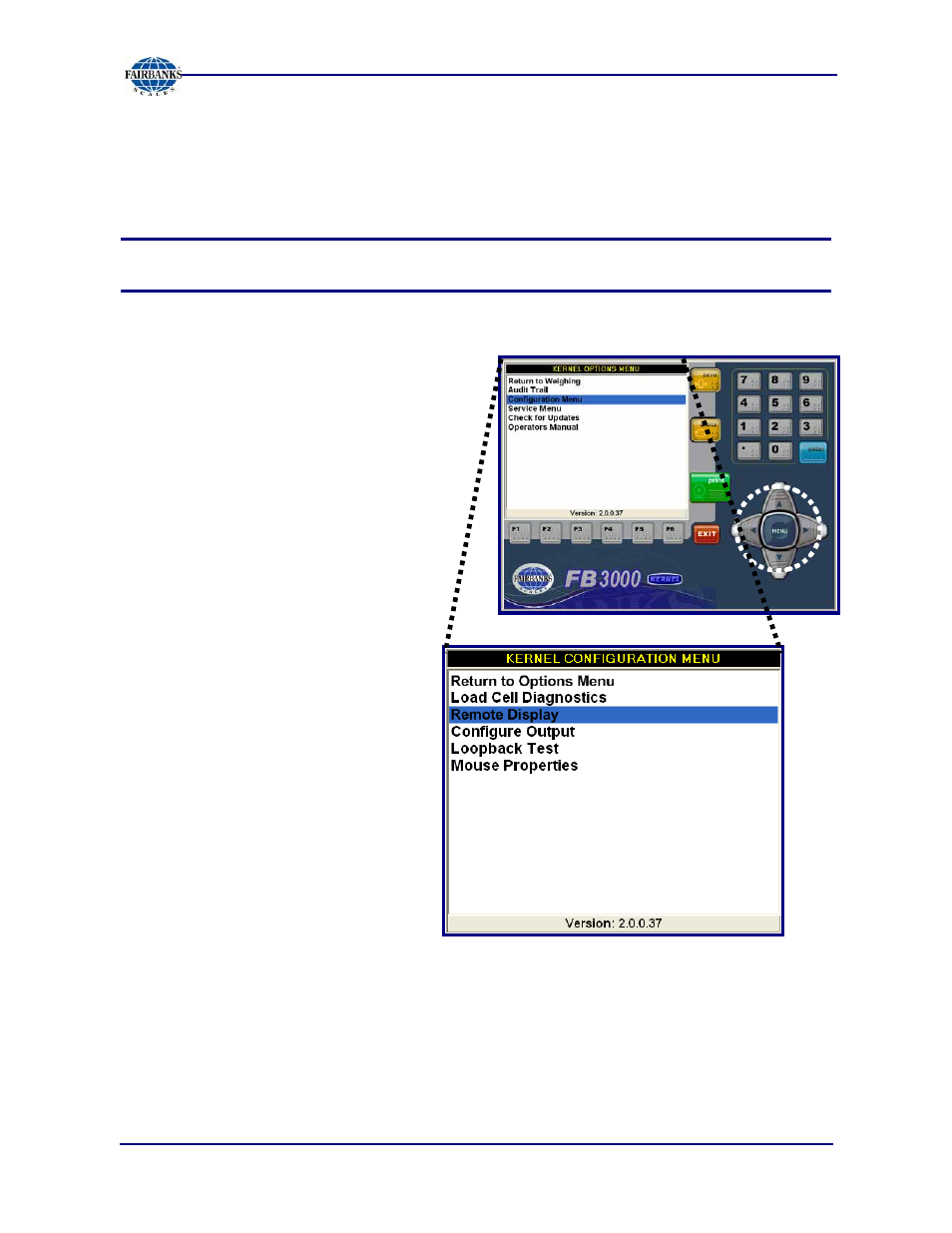

1. In the Kernel Weighing
Program, click the
MENU
button to open the Configuration
Menu.
2. Open the
Remote Display
.
