Section 4: Input/Output (I/O)
02/10 25 51220 Rev. 1
4.2.9. Other Data String Customization
Window Name Description

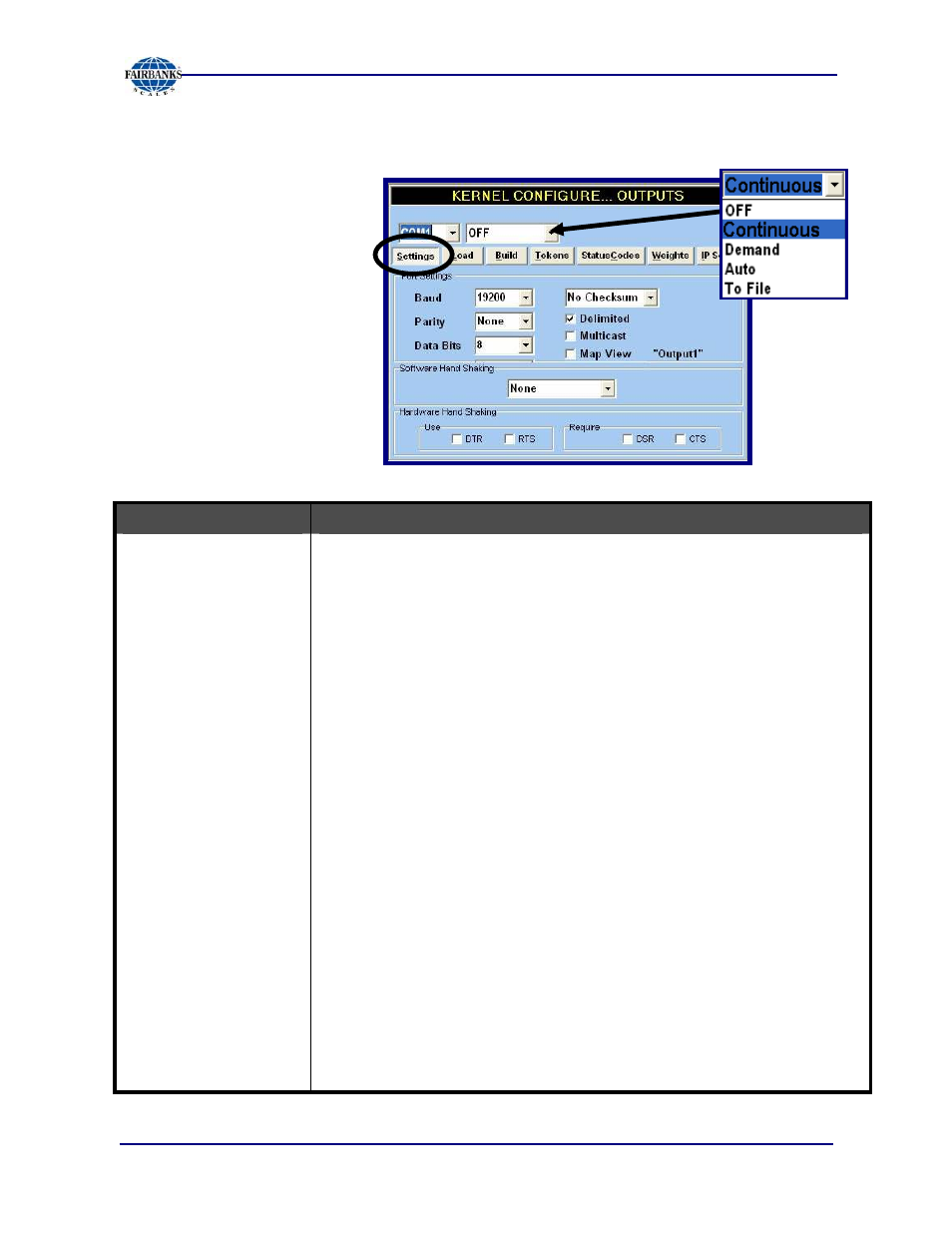

CONFIGURE OUTPUT
─ Settings Tab
RS232 COM Port Drop-down – Selects COM Port with its settings.
Data Transmission Options*
─ Continuous [transmission]
─ Demand – Upon demand as a poll character is received
─ Auto – A transmission is sent when requested or when the
transaction is completed.
─ To File – The message is not transmitted, but written to a file instead.
─ Network – Transmission via IP over a network.
Port Settings*
─ Baud Rate, Parity, Data Bits and Stop Bits.
─ Checksum – Returns a confirmation of transmission message
between computers.
─ Delimited – Transmits data in Comma Delimited Format.
─ Multicast – Method of networking scale weight information to other
FB3000 II instruments across a Network.
─ Map View – Displays data in a memory mapped location.
ƒ
The
Testapp.exe ,
located in th e Kernel folder , is used to verify
memory mapped data,
─ Output to PC104 – Sends data to optional PC 104 Weight Controller
Card using the 20mA or 4-20mA outputs.
Software Hand Shaking – A means to control data flow using software
functions for communication between two or more devices.
─ None – Bits are sent to source computer constantly without waiting for
available receiving modem.
─ Both, Receive or Transmit – Determines which computer(s) wait
to accept the message packets.
