5 Maintenance Model 3010 TA Oxygen Analyzer
5-2: Part I
3. Replace fuse as shown in Figure 5-2.
4. Reassemble Housing as shown in Figure 5-1.
American Fuses European Fuses

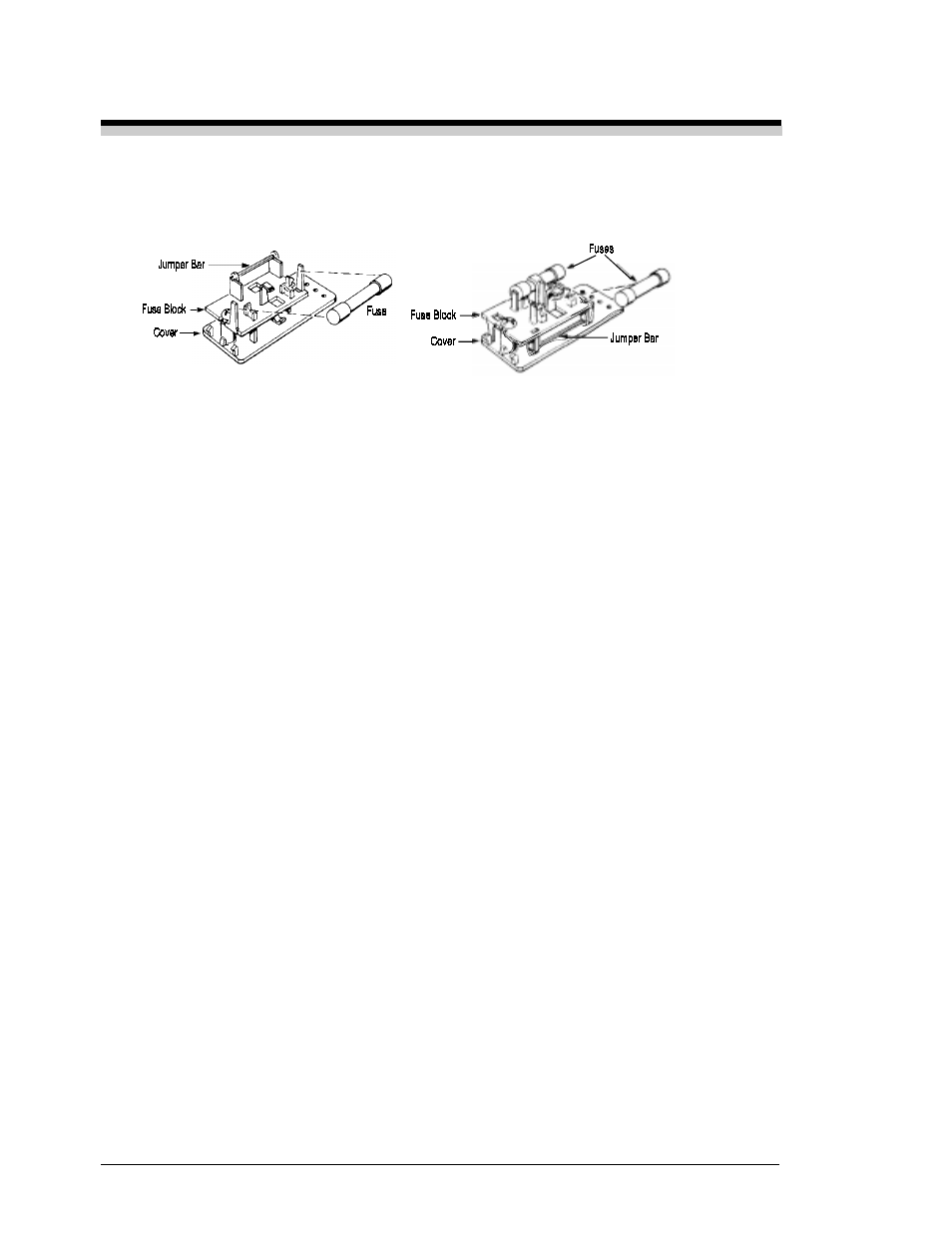

Figure 5-2: Installing Fuses
5.2 System Self Diagnostic Test
1. Press the System button to enter the system mode.
2. Use the < > arrow keys to move to More, and press Enter.
3. Use the < > arrow keys to move to Self-Test, and press Enter .
The following failure codes apply:
Table 5-1: Self Test Failure Codes
Power
0 OK
1 5 V Failure
2 15 V Failure
3 Both Failed
Analog
0 OK
1 DAC A (0–1 V Concentration)
2 DAC B (0–1 V Range ID)
3 Both Failed
Preamp
0 OK
1 Zero too high
2 Amplifier output doesn't match test input
3 Both Failed
