1-4: Part I
1 Introduction Model 3010 TA

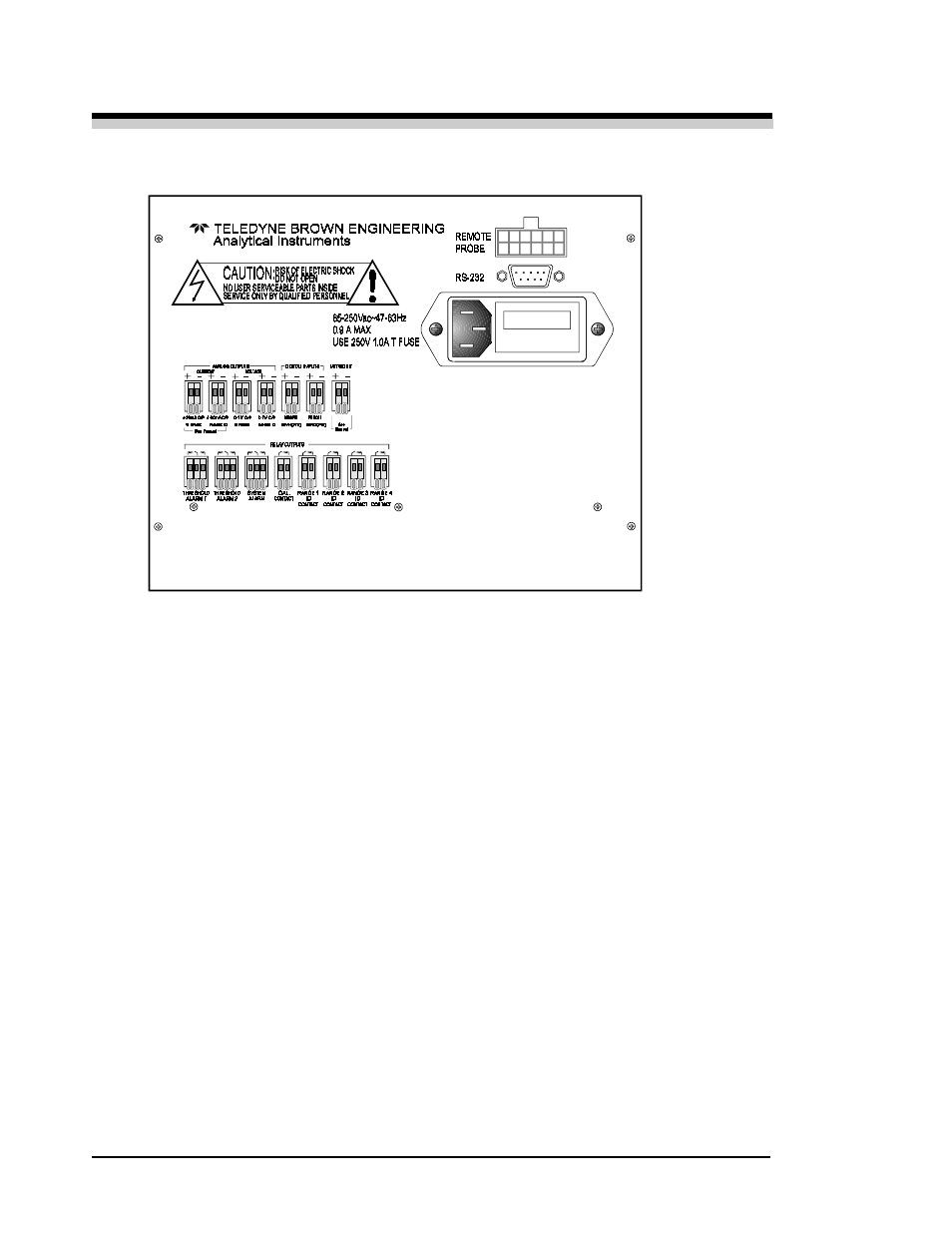

Figure 1-2: Model 3010TA Rear Panel
• Power Connection Universal AC power source.
• Analog Outputs 0-1 V dc concentration and 0-1 V dc
range ID. Isolated 4-20 mA dc and 4-20
mA dc range ID.
• Alarm Connections 2 concentration alarms and 1 system
alarm.
• RS-232 Port Serial digital concentration signal output
and control input.
• Remote Probe Provides all electrical interconnect to the
Analysis Unit or Remote Probe.
• Remote Span/Zero Digital inputs allow external control of
analyzer calibration.
• Calibration Contact To notify external equipment that
instrument is being calibrated and
readings are not monitoring sample.
• Range ID Contacts Four separate, dedicated, range relay
contacts. Low, Medium, High, Cal.
