3 Installation Model 3010 TA
3-2: Part I

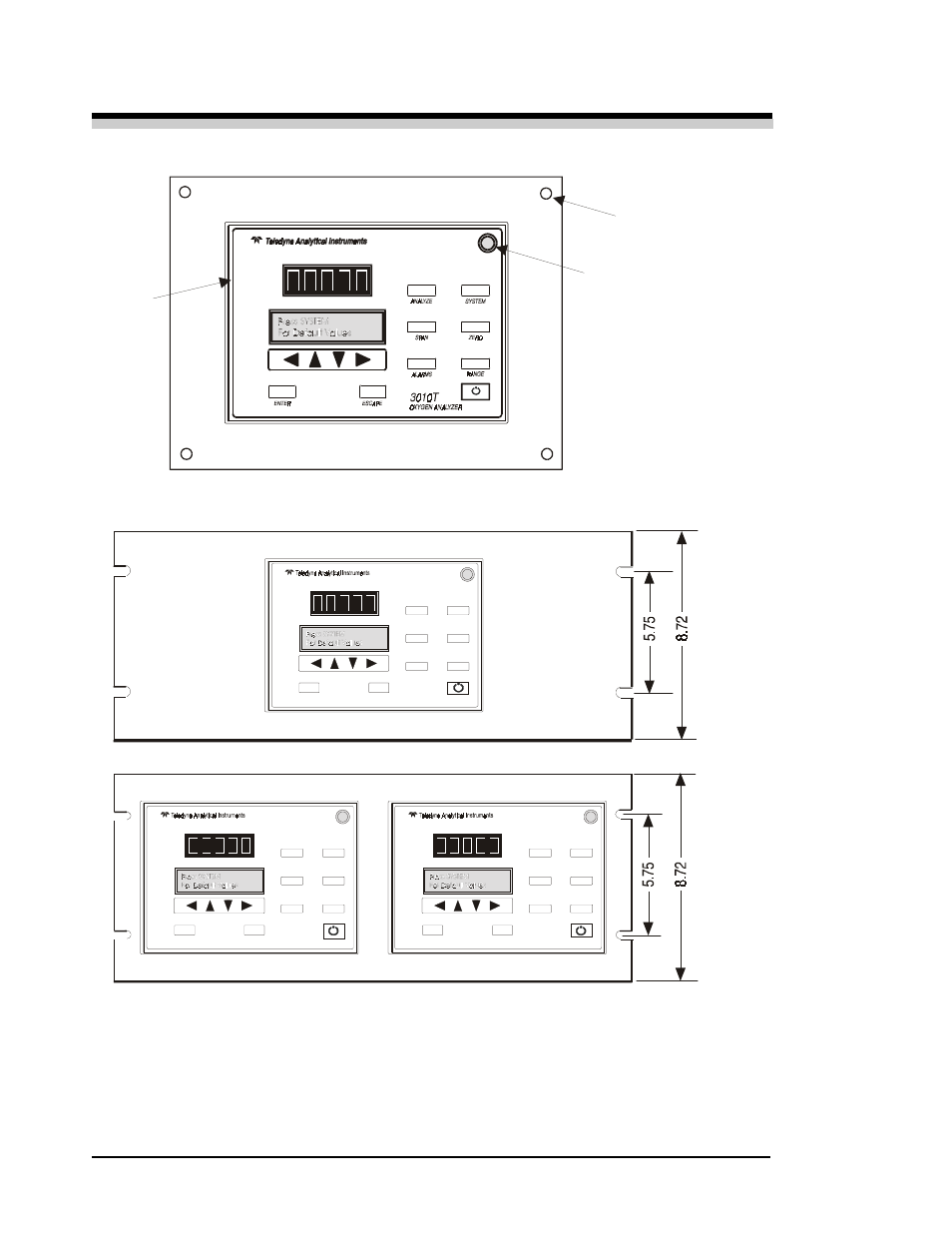

Figure 3-1: Front Panel of the Model 3010 Control Unit
Figure 3-2: Single and Dual 19" Rack Mounts
All operator controls are mounted on the control panel, which is hinged
on the left edge and doubles as a door to provide access to the internal
components of the instrument. The door is spring loaded and will swing
Hinge
Latch
Mounting
Holes (4)
