3 Installation Model 3010 TA
3-8: Part I
The RS-232 protocol allows some flexibility in its implementation.
Table 3-2 lists certain RS-232 values that are required by the 3010TA.
Table 3-2: Required RS-232 Options
Parameter Setting
Baud 2400
Byte 8 bits
Parity none
Stop Bits 1
Message Interval 2 seconds
Remote Probe Connector: The Models 3010 are split architecture
(dual-chassis) instruments, which have a Remote Probe, or Analysis Unit.
The Remote Probe connector is used for controlling the Analysis Unit
internal sample, zero, and span gas valves, and for receiving the oxygen
sensor and thermistor signals. See Figure 3-7. The connections at the Analy-
sis Unit are covered in detail in Part II, section 3.4, of this manual.

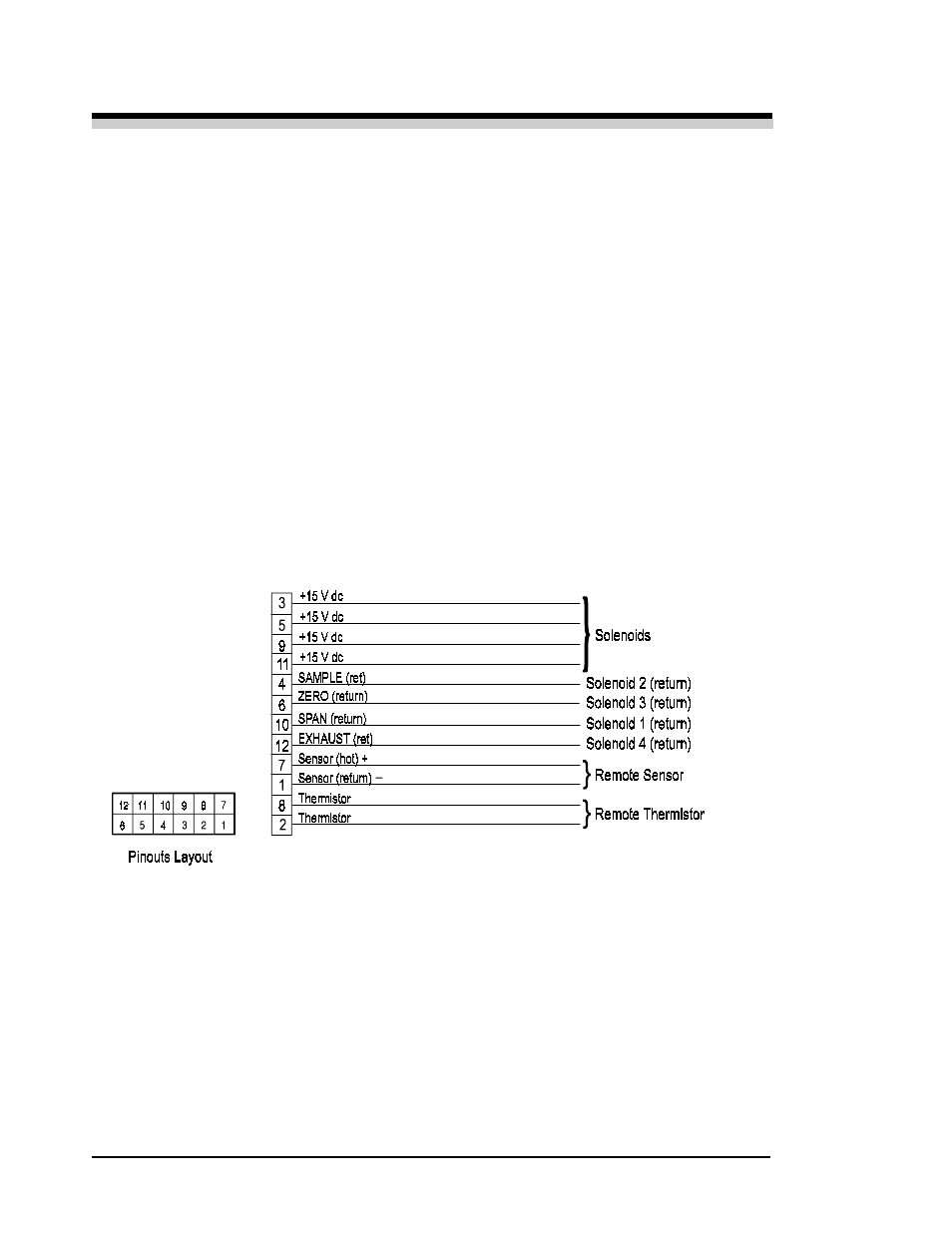

Figure 3-7: Remote Probe Connector Pinouts
If you use your own gas control valves, use the interconnect diagram in
Figure 3-8. (See drawing D-64950 for wire recommendations.)
