5. FAULT FINDING GUIDE
Disconnect suction hose
Blank off suction entry
Fit vacuum gauge
Pump Fails to Prime
Reading
between
85 - 89 .5 kpa
(28.5 0 30 ft H20)?
Are
all plugs
tight?
Lift< or =
8.53m (28ft) for
ACE80/100
Check vertical
suction lift
Are hoses
leaking, collapsed
or blocked?
Is intake
blocked?
Test the Vacuum
Pump directly
Fit vacuum gauge
Reading
between
85 - 89 .5 kpa
(28.5 0 30 ft H20)?
NO YES
Move
Pump
NO
Rectify
NO
NO
Is impeller
blocked?
Rectify
Rectify
F
Rectify &
re-test YES
YES
YES
YES
YES
NO
YES
Rectify
C
NO
Is
Reflux Valve
Ball seating
properly?
NO
Is belt drive
tension OK?
Rectify
D
NO
YES
Excessive wear.
Remove Vacuum
Pump & either
overhaul or fit new or
exchange pump
YES
Rectify
A
Is the
pump or NRV
blocked or
damaged?
YES
NO
Rectify
B
YES
Are all
joints sound &
leak free?
NO
Rectify
C
NO
Is Main
Valve float
gear free and
intact?
YES
Is pump
casing free from
holes?
Check impeller wear
plate clearances
and rectify F
NO
Rectify
F
YES
Is Vacuum
Pump filter
blocked?
NO
Rectify
F

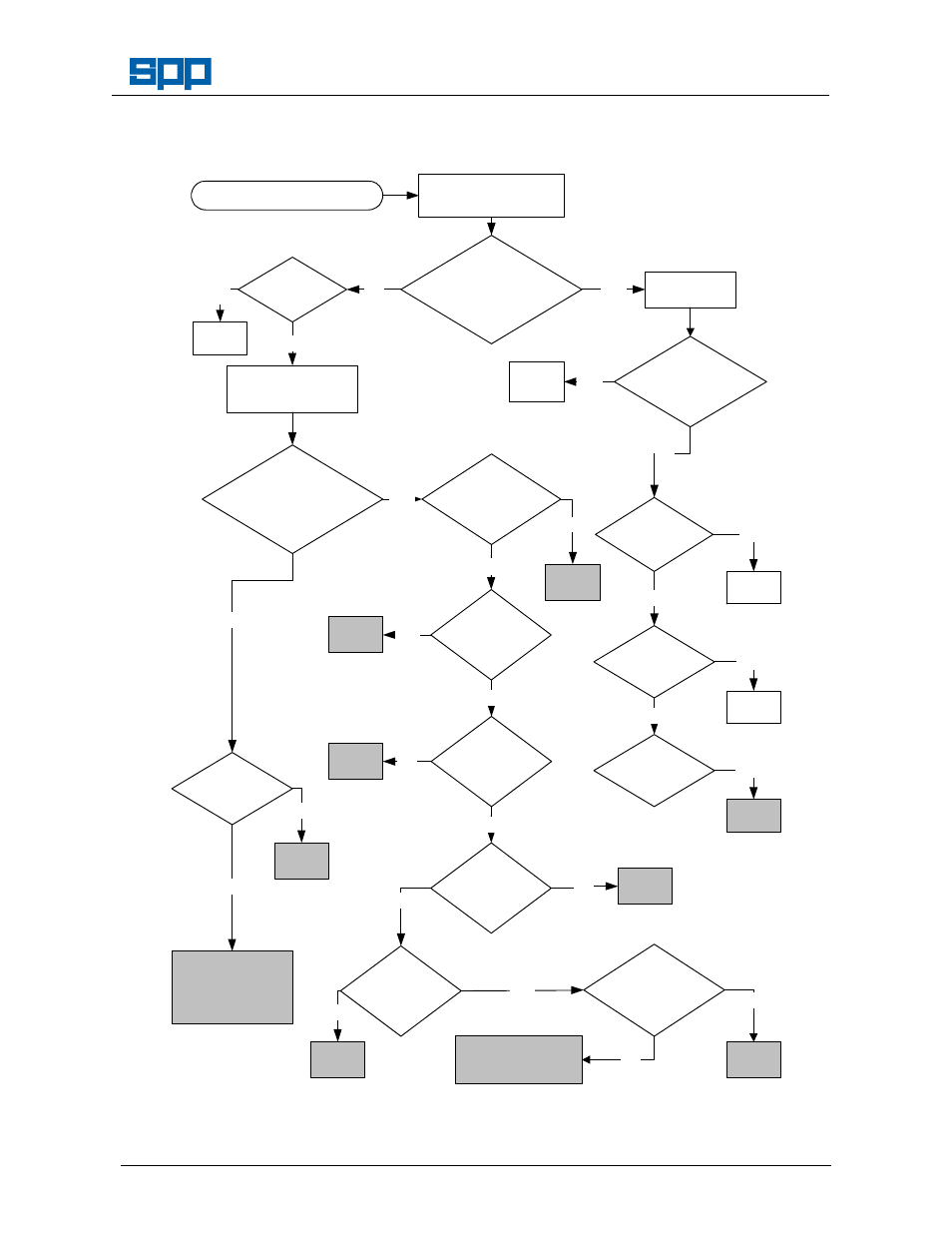

ACE80-100 Fault Finding Chart
