Manual No/Rev
W72-020E / 1
Workshop Manual for
ACE80/100 Diesel Driven Centrifugal Pumps
Our policy is one of continuous improvement and we reserve the right to alter specifications at any time
Page 16 of 21
9.

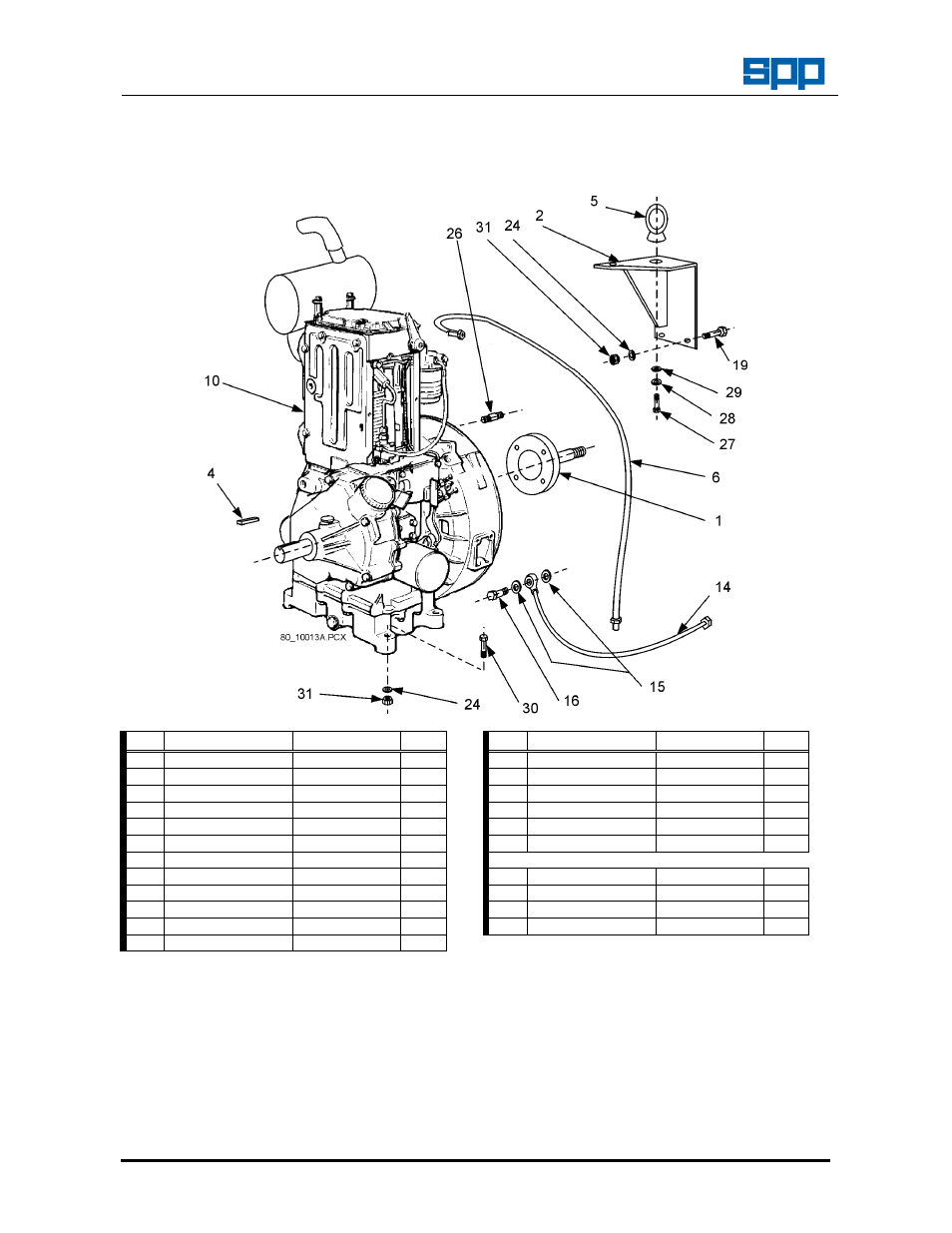

6.1 ENGINE, DRIVE, BATTERY & FITTINGS
ITEM
DESCRIPTION
PART No
QTY
1
Stub shaft
SY3874015
1
2
Bracket: lifter
13756
1
4
Key
SY3874036
1
5
Eye nut
SY3874040
1
6
Fuel pipe: return
SY3354065
1
10
Engine: TR1
13757
1
14
Fuel pipe: suction
SY3804064
1
15
Joint: copper
SYK01322350
2
16
Union bolt
SYK35121610
1
19
Screw: M12 x 35
21863-220-347-0
2
24
Washer: spring M12
SY9509808
4
26
Stud: 3/8"UNC x 1 ½”
SY9019093
12
ITEM
DESCRIPTION
PART No
QTY
27
Screw: M20 x 40
21863-392-959-2
1
28
Washer: M20
SY9509684
1
29
Washer: spring M20
SY9509812
1
30
Bolt: M12 x 70
SY9509556
2
31
Nut: M12
SY9509654
4
37
Washer
SY3874103
2
NOT ILLUSTRATED
38
Shim: 0.25
SY3804141
8
39
Shim: 0.5
SY3804142
12
46
Spacer
SY3804084
1
47
Exhaust lagging
11260
1
