SPP Pumps Auto Prime Medium Head Open Set ACE80-100 Workshop Manual - Manual (Page 17)

Workshop Manual for
ACE80/100 Diesel Driven Centrifugal Pumps
Manual No/Rev
W72-020E / 1
Our policy is one of continuous improvement and we reserve the right to alter specifications at any time
Page 17 of 21
This manual is a preliminary issue
for information only,
pending formal issue of
the complete manual.

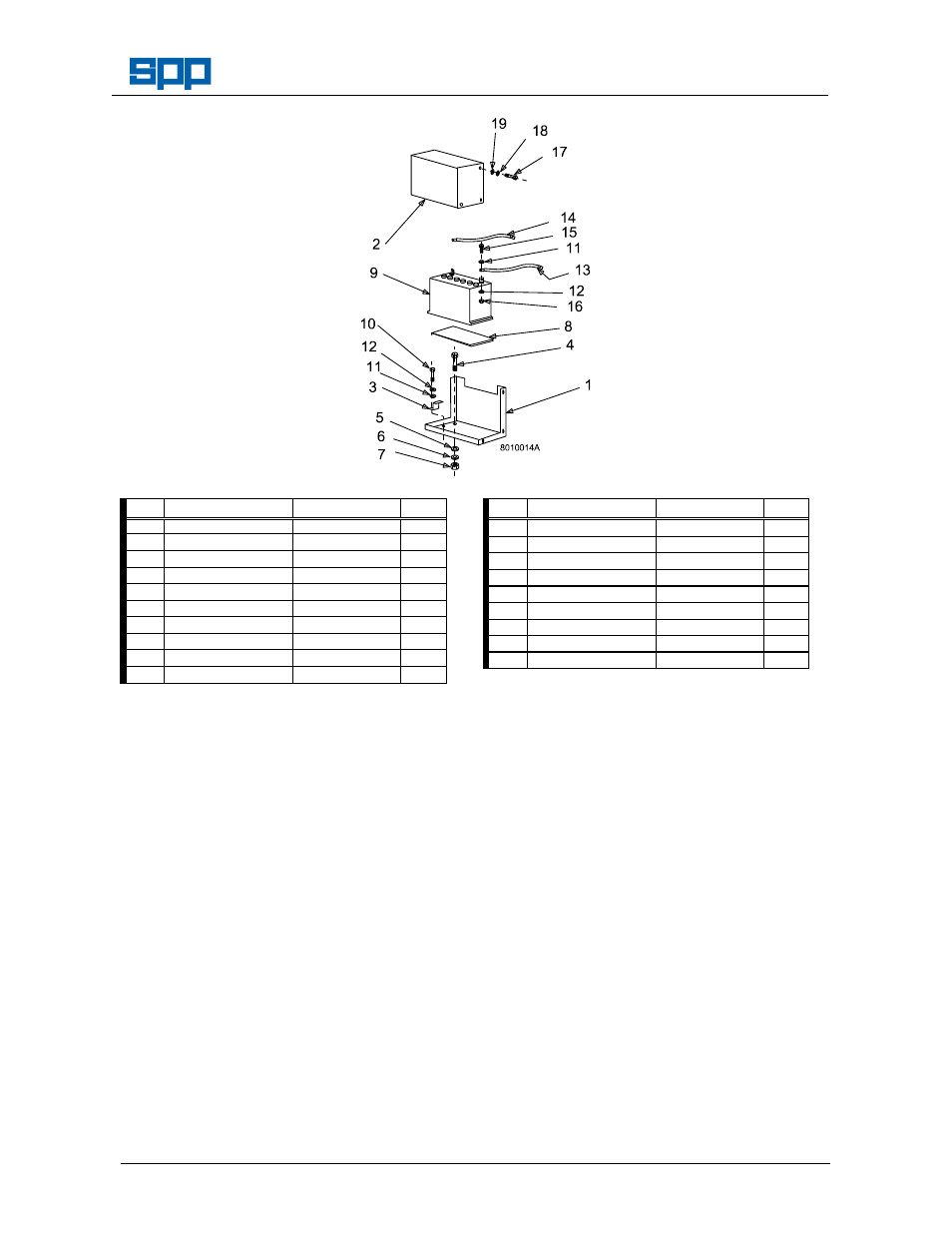

ITEM DESCRIPTION PART No QTY
1 Battery box 13165 1
2 Battery box lid 13166 1
3 Battery clamp 12483 2
4 Screw: M12 x 35 21863-220-347-0 2
5 Washer: M12 SY9509680 2
6 Washer: spring M12 SY9509808 2
7 Nut: M12 SY9509654 2
8 Battery mat SY3874047 1
9 Battery: 12v SY7004404 1
10 Screw: M8 x 16 21863-132-347-6 2
ITEM DESCRIPTION PART No QTY
11 Washer: spring M8 SY9509806 4
12 Washer: M8 SY9509678 4
13 Lead: battery +ve 13761 1
14 Lead: battery -ve SY3872002 1
15 Screw: M8 x 20 SY9519097 2
16 Nut: M8 SY9509652 2
17 Screw: M6 x 16 21863-102-422-1 6
18 Washer: spring M6 SY9509805 6
19 Washer: M6 SY9509676 6
