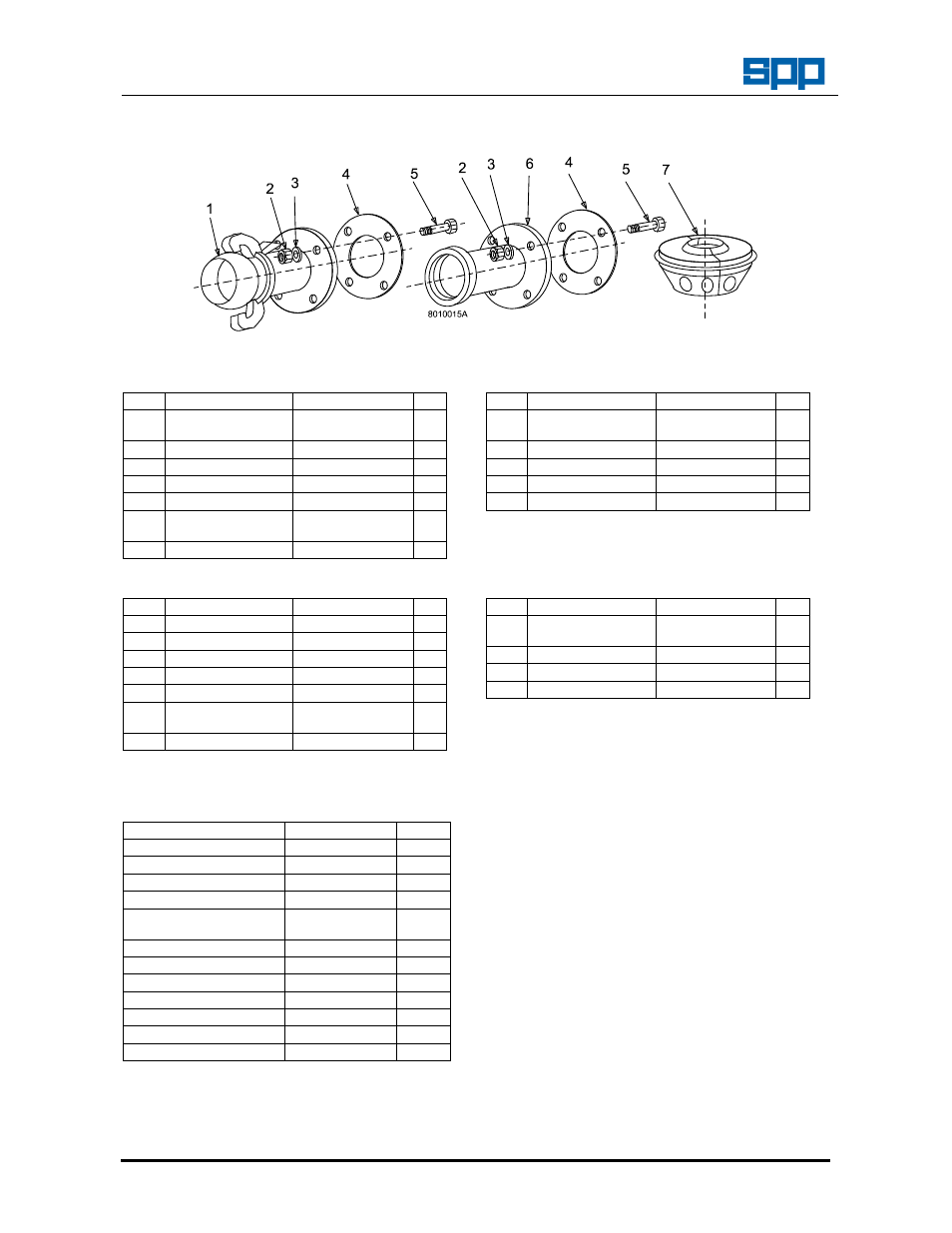

6.2 BAUER FITTINGS
9.1 80-18
ITEM DESCRIPTION PART No QTY
1
3" Bauer male/4"
flange
13502 1
2 Nut: M16 SY9509656 8
3 Washer: spring M16 SY9509810 8
4 Gasket SY5004418 2
5 Bolt: M16 x 55 21867-315-959-9 8
6
3" Bauer female/ 4"
flange, includes
13503 1
3" Sealing ring SY3194288 1
ITEM DESCRIPTION PART No QTY
7
3" Split intake assy.
comprises:
14697 1
3" Intake half SY1814187 2
3” Restrictor 14675 1
4" Sealing ring SY3194289 1
9.1 100-18
ITEM DESCRIPTION PART No QTY
1 4" Bauer male, SY3194022 1
2 Nut: M16 SY9509656 8
3 Washer: spring M16 SY9509810 8
4 Gasket SY5004418 2
5 Bolt: M16 x 55 21867-315-959-9 8
6
4" Bauer female,
includes
SY3194023 1
4" Sealing ring SY3194289 1
ITEM DESCRIPTION PART No QTY
7
4" Split intake assy.
comprises:
14696 1
4" Intake half SY1814185 2
4” Restrictor 14674 1
6" Sealing ring SY3194284 1
9.1 LABELS & TRANSFERS
(not illustrated)
DESCRIPTION PART No QTY
Weight plate 12628 1
Label: frost warning SY2994128 1
Transfer - pump guard SY2994065 1
Transfer - Lift here SY2994109 1
Transfer - Surge control
valve SY2994092 1
Label - warning oil tank SY2994147 1
Label - oil tank SY2994148 1
Label - oil cap SY2994149 1
Transfer: safety 12627 1
Transfer: 100-18 12253 1
Transfer: A/prime SSPP 12263 1
Transfer: Chevrons 12264 2
