Machine Cycle Definition and Operation
F8138801 24
Speed, Temp and Water Level Menu
The Speed, Temp, and Level Menu will display the
actual RPM, temperature and level, and program
values of the temperature and level during run mode.
The top portion of the display contains the same
information listed in the Run Menu detailing Cycle,
Segment, and Step operation.
Press keypad to enter Run Mode Diagnostic
Menu. Press keypad to stop the cycle, the
control will enter Cycle Stopped if there is rotation or
the Unlock Door page if there is not rotation. Press the
keypad to advance the cycle one step. The
Control cannot advance into a Spray Rinse Extract or
an Extract Cycle Step. Advancing the steps within a
cycle also depends on whether this option has been
changed to on or off in the Rapid Advance Menu.
Cycle Aborted Retry Menu
The Cycle Aborted Retry Menu will be displayed for a
fill, drain or heater alarm time error. The display will
toggle this page with the Run Menu every three
seconds. Press to resume the cycle.
PHM1083R
1 Cycle Name 7 Programmed Water Temperature
2 Segment Name 8 Actual Water Level
3 Step Name 9 Programmed Water Level
4 Segment Time Elapsed 10 Actual RPM
5 Step Time Remaining 11 Run Screen Indicator
6 Actual Water Temperature 12 Cycle Time Remaining

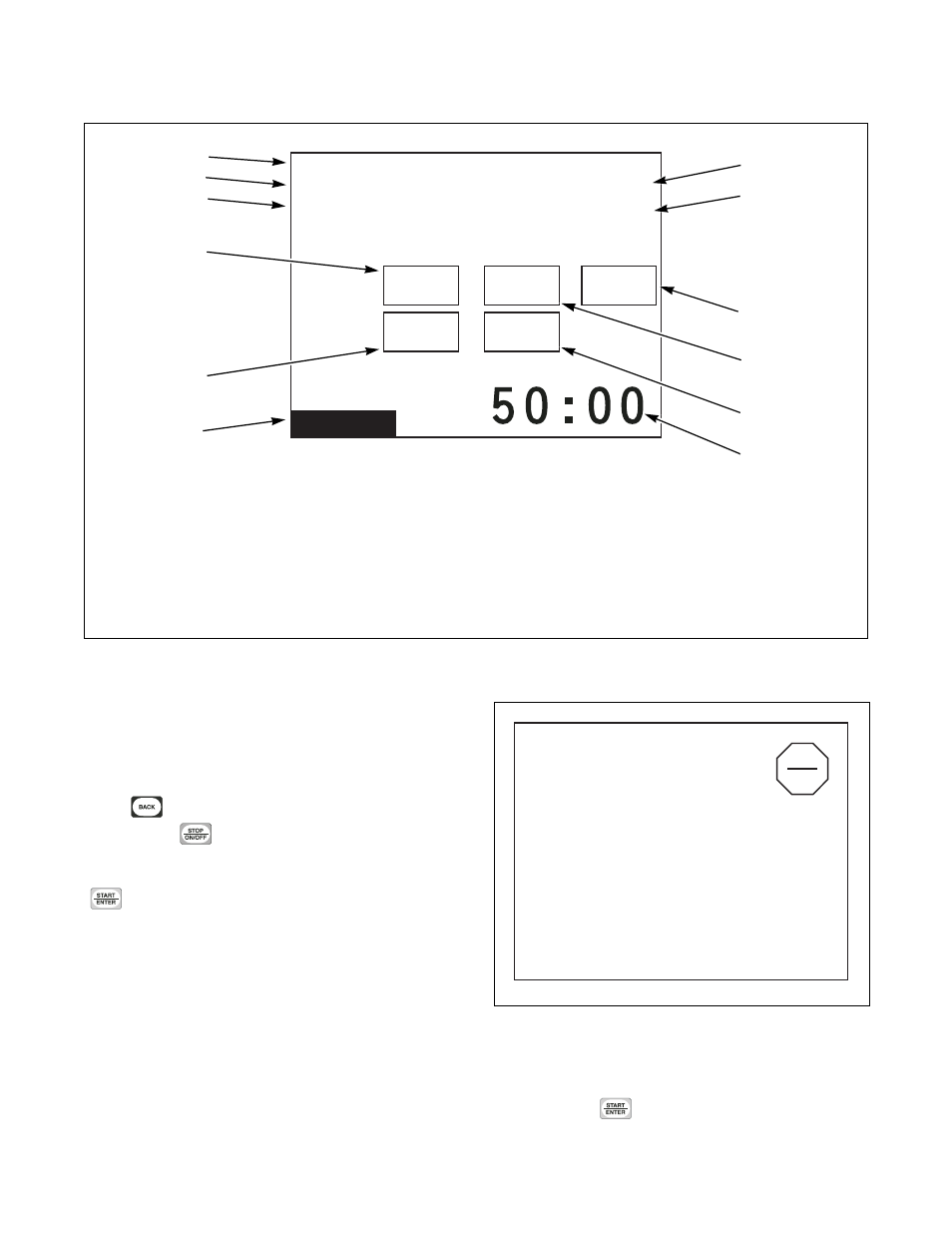

Figure 13
Cycle01: Towels White Bleach
Segment01: Wash
Fill
Actual
Temp
138 F
140 F Program
01:42
01:42
Run Menu
PHM1083R
Level
01
01
RPM
40
9
7
11
3
1
6
2
5
8
10
4
12
PHM1011R
Figure 14
Cycle Stopped
Heater Alarm Time Exceeded
Press START Key to Retry
Press STOP Key to Abort Cycle
