M a g n e t ic D e m o n s t r a t io n S y s t e m

A b o u t t h e E q u i p m e n t

4

EM-8642A Magnetic Force Accessory

The Magnetic Force Accessory consists of the following components:

Aluminum eddy current blades (solid, with slots, and with slits) for demonstrating magnetic induction and
magnetic braking

Mounting rod for supporting the blades or the swing assembly

Swing assembly for demonstrating the magnetic force on a current-carrying wire

Aluminum tube (paramagnetic material)

Glass rod (diamagnetic material)

Thread for suspending the aluminum tube and glass rod

Eddy Current Theory

Eddy currents are currents induced in a conductor when the conductor is exposed to a changing magnetic field due
to the relative motion of the conductor and the source of the magnetic field, or due to variation of the magnetic
field over time. A circulating flow of electrons will form in the body of the conductor. These circulating eddies of
current generate a magnetic field that opposes the change of the original magnetic field as described by Lenz’s law.
The opposing magnetic fields cause drag forces between the conductor and the magnet. The drag forces cause
“magnetic braking”.

Magnet Positioning

The Variable Gap Magnet may be used in four different free-standing positions or can be mounted on a support
rod. The following diagrams show the various positions. The threaded hole in the base accepts a 1/2” (12.7 mm)
threaded rod (13 thread per inch) such as the PASCO ME-8988 25-cm Stainless Steel Rod. The hole also accepts
non-threaded rods less than 12.7 mm (1/2”) in diameter. The thumbscrew on the side of the base holds the magnet
in position on a non-threaded rod..

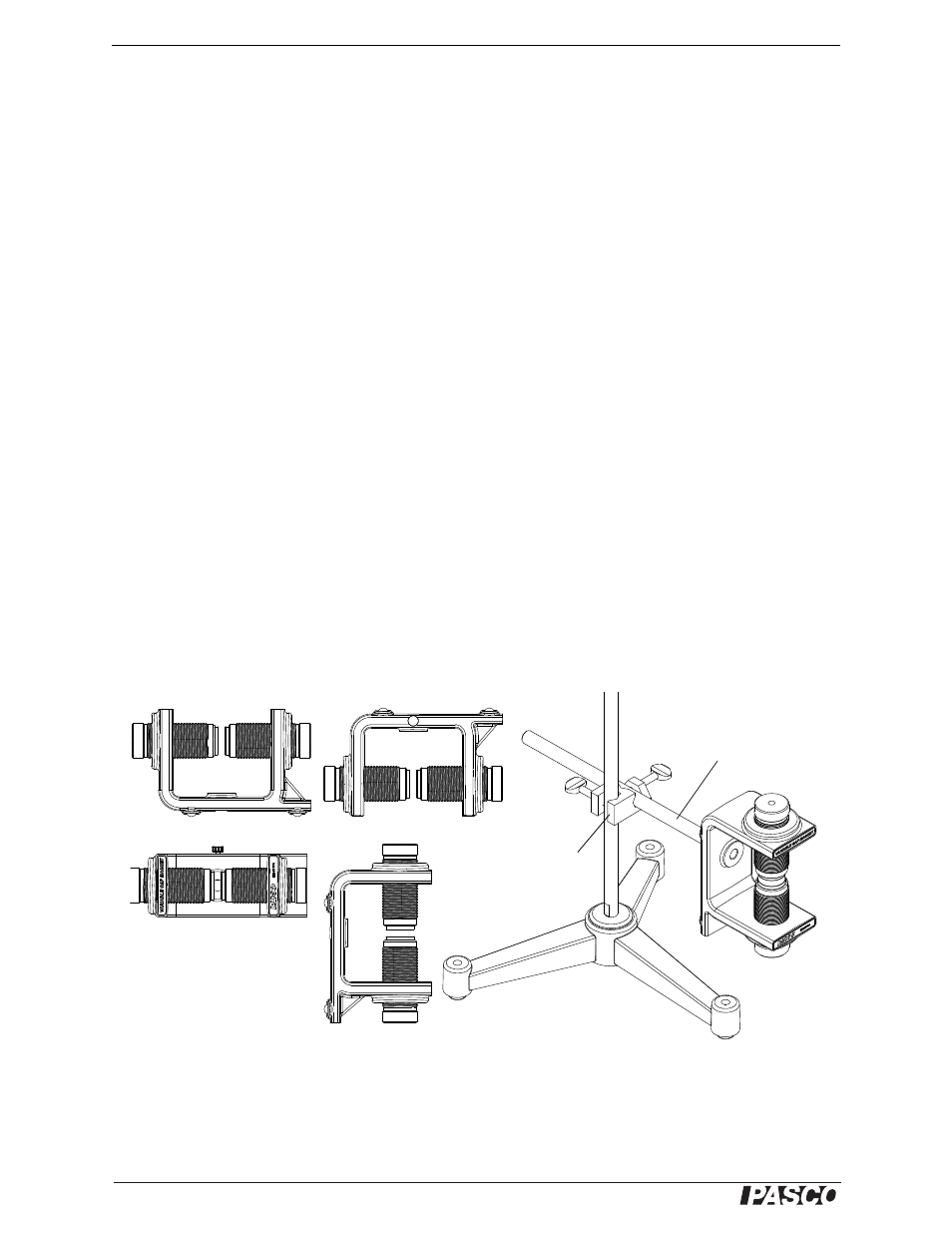

Figure: Positions for the Variable Gap Magnet

On support

rod

ME-9355 Large

Base and Rod

ME-8988 25-cm

Stainless Steel Rod

SE-9444 Multi

Clamp

Upright

Upside down

On side

On end
