Configuring the Interface
Series N5700 User’s Guide
57

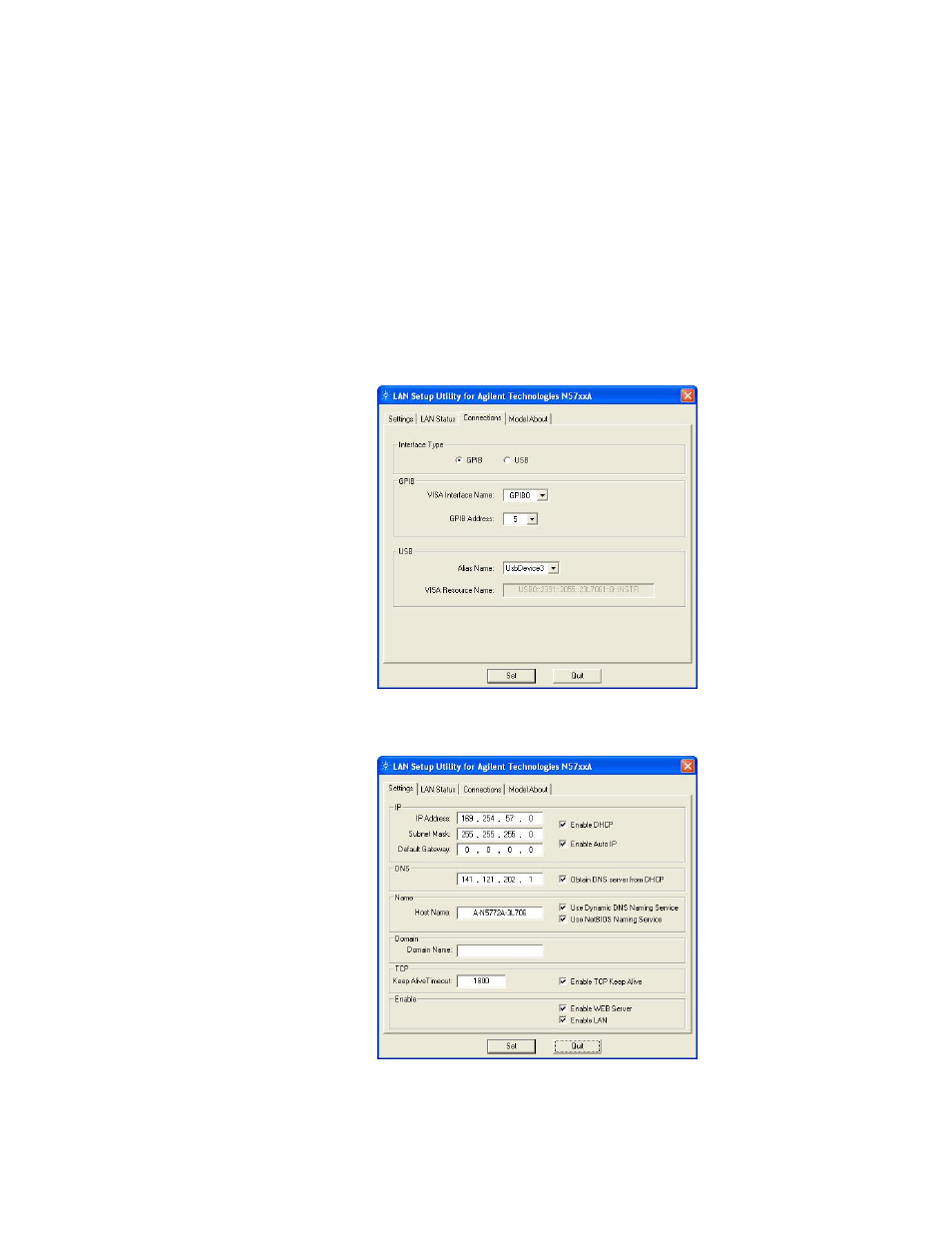

Using the Setup Utility
A Setup Utility that lets you configure the LAN settings of your
instrument is provided on the CD-ROM that is included with this
manual. Install and run this Setup Utility if you cannot configure the
LAN interface as previously described in this section.
1 Connect your power supply to your PC using either a USB a GPIB
interface as previously described.
2 Install the Setup utility from the CD-ROM onto our PC. Run the
Setup utility be clicking on its icon.
3 Select the interface you are using. Click on the Connections tab
and select either USB or GPIB.
4 Configure the following LAN address parameters. These are
located under the Settings tab. For a description of these
parameters, refer to the previous section.
5 Enable the LAN and, optionally, the built-in Web server using the
applicable check boxes.
