Connecting the Line Cord
22
Series N5700 User’s Guide
• Unscrew the base of the strain relief from the helix-shaped
body. Insert the base through the outside opening in the AC
input cover and screw the locknut securely (11-14 in-lb) into
the base, from the inside.

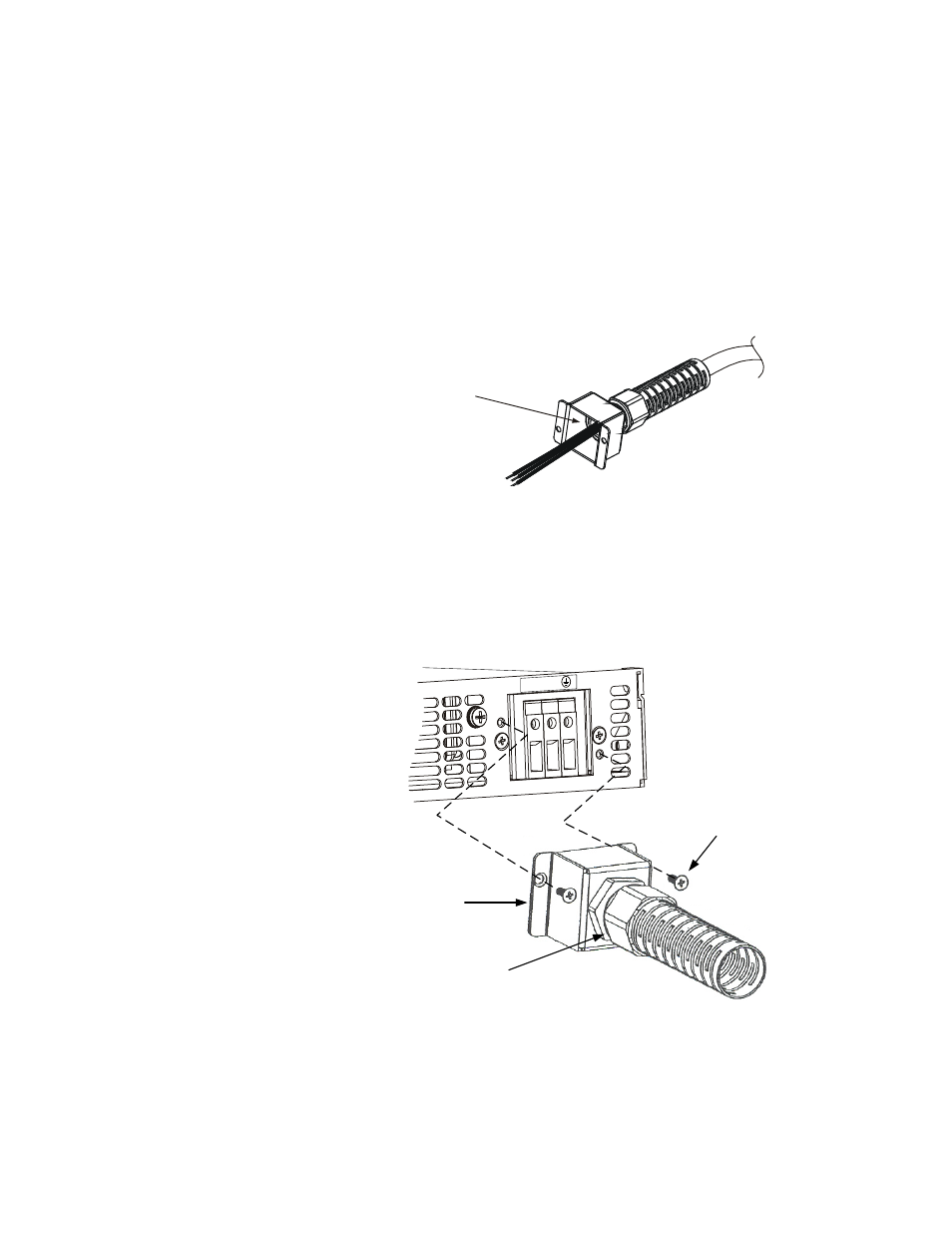

• Slide the helix-shaped body onto the AC cable. Insert the
stripped wires through the strain relief base until the outer
cable jacket is flush with the edge of the base. Tighten the
body (16-18 in-lb) to the base while holding the cable in
place. Now the cable is securely fastened inside the strain
relief. Refer to the following figure.
• Route the AC wires to the input connector terminals as
required. To connect the wires, loosen the terminal screw,
insert the stripped wire into the terminal, and tighten the
screw securely to between 4.4–5.3 in-lb.
• Route the wires inside the cover to prevent pinching. Fasten
the cover to the unit using the M3 x 8 flat head screws
provided. Refer to the following figure for details.
Screw-on
Locknut
L N
Cover
Assembled
Strain Relief
M3x8
Flat Head Screws
(2 places)
