Installing the Unit
20 Series N5700 User’s Guide
Rack Installation
CAUTION Ensure that the screws used to attach the rack slide kit do not penetrate more
than 6 mm into the sides of the unit.
Do not block the air intake at the front of the unit or the exhaust at the rear of
the unit.
The Agilent N5700 power supplies can be mounted in a standard 19-
inch rack panel or cabinet. To install the power supply in a rack:
1. Use the front panel rack-mount brackets to install the power
supply in the rack.
2. Use a support bracket to provide adequate support for the rear of
the power supply.
3. If using rack mount slides, use Agilent N5740A Rack-mount Slide
Kit
to install the unit in a standard 19-inch equipment rack. Refer to

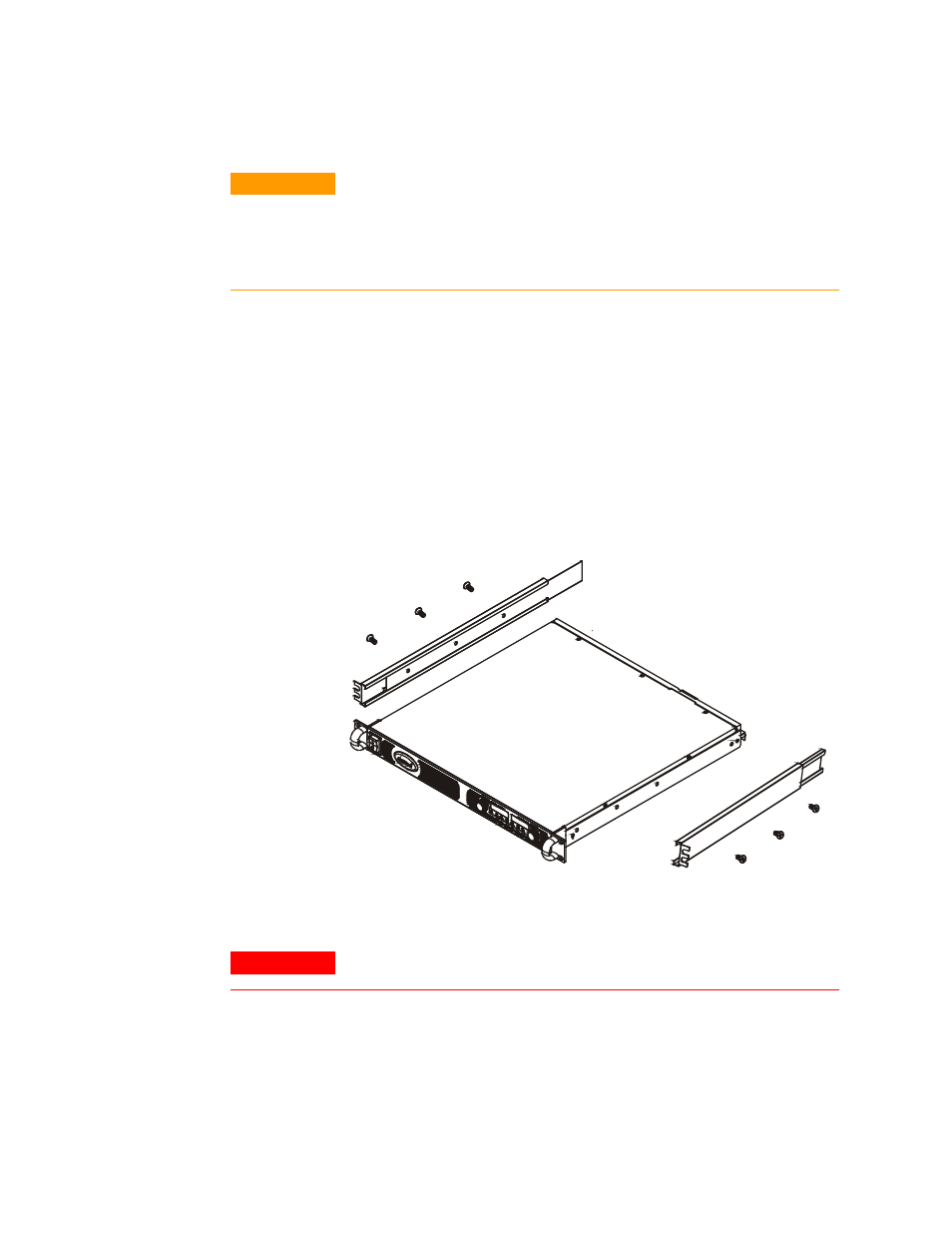

the following figure for assembly instructions. Use three #10-32 x
0.38 in (max.) screws at each side. To prevent internal damage, use
the specified screw length only.
Cleaning
WARNING SHOCK HAZARD To prevent electric shock, unplug the unit before cleaning.
Use a dry cloth or one slightly dampened with water to clean the
external case parts. Do not attempt to clean internally.
