012–06852A EKG Sensor
7
+ RED
- GRN REF BLK
EKG SENSOR (ELECTROCARDIOGRAM)
FOR REPLACEMENT EKG ELECTRODES USE P ASCO P ART NO. 535-020 OR EQUIV
ALENT
CI-6539A
Using the EKG Sensor with Science Workshop™
Interfaces
The reading from the EKG Sensor in the Science Workshop software
has been scaled to the millivolt range. The reading is adjusted so that
zero volts represents the Isoelectric line.
1. Connect the EKG Sensor unit to analog channel A, B, or C of
the Science Workshop computer interface box using the cable
with the DIN connectors (Figure 7). Alternatively, the unit can
be plugged directly into the analog channel jack.

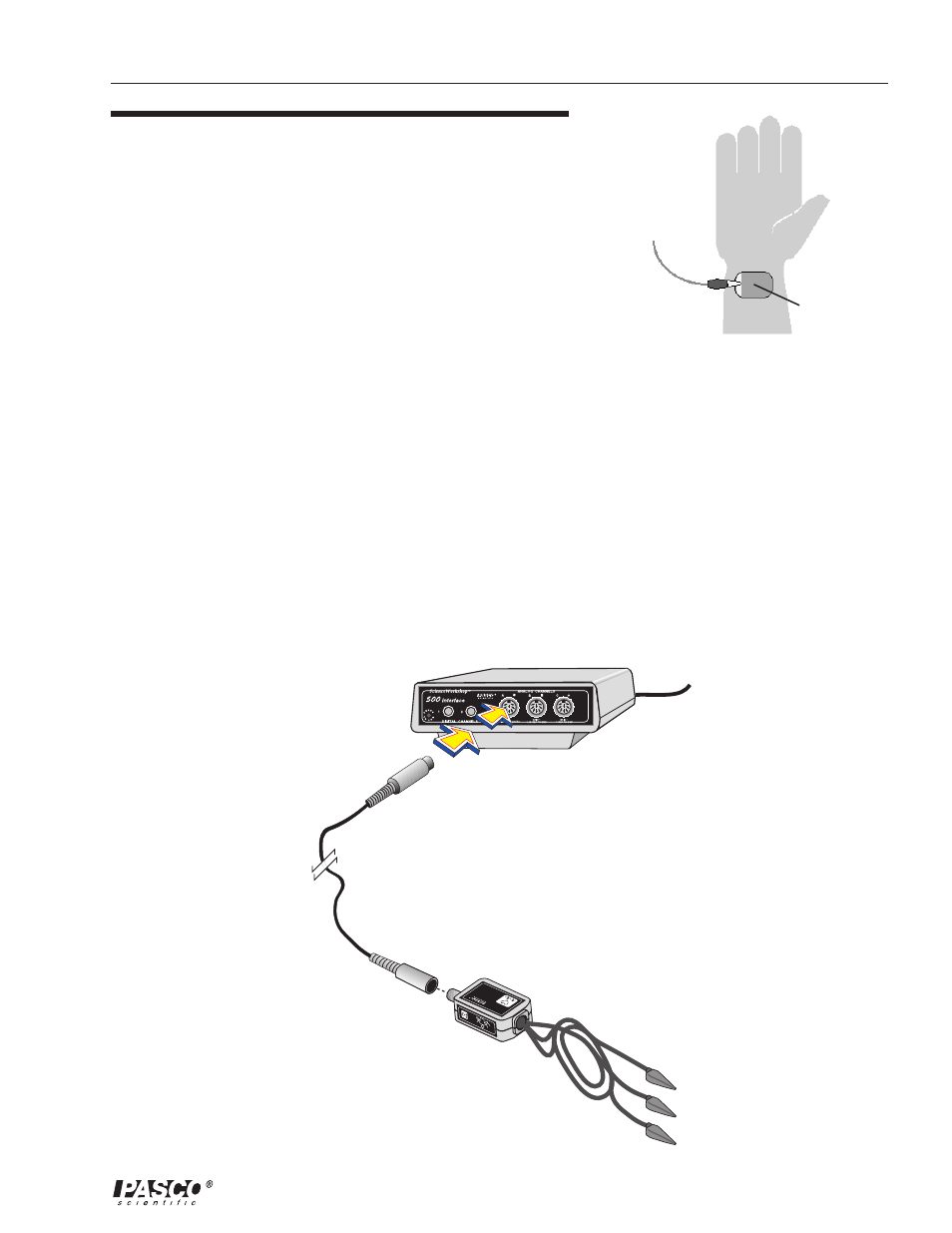

Figure 7
Connecting the EKG Sensor to the interface box
Figure 6
Connecting the micro alligator clips from the
sensor to the tabs on the edges of the
electrode patches
electrode patch
on wrist
micro alligator clip
connected to tab of
electrode patch
➤ ➤ ➤ ➤ ➤ Note: This instruction sheet was
written assuming that the user is
familiar with ScienceWorkshop. Users
can gain familiarity by working
through the tutorials provided with
ScienceWorkshop.
