Model No. ME-6810 Time of Flight Accessory
5
Introduction
The PASCO ME-6810 Time-of-Flight Accessory is for use with
PASCO Projectile Launchers. It consists of a piezo-electric speaker
circuit mounted on a 20 x 20 centimeter plastic plate. The plate has a
signal cable with a 6 mm (1/4”) stereo phone plug. When a ball hits the
plate, the speaker circuit generates a Photogate-like pulse. The cable
sends the signal to a timer. The Time-of-Flight Accessory was
designed for use with a PASCO Photogate Timer or a PASCO
computer interface (such as the ScienceWorkshop Interface
®
or a
PASPORT Photogate Port with USB link) for Macintosh
®
or
Windows
®
computers.
Setup Options
The Time of Flight Accessory can be used with a Photogate Timer or a
computer interface for time of flight or initial speed studies. If using a
computer interface, you will also need data collection software, such
as DataStudio. If you plan to measure initial speed and time of flight in
the same experiment, you will need two photogates for the setup.
ME-6800
SHOR T RANGE
PR OJECTILE LA
UNCHER
WEAR SAFETY GLASSES – WHEN IN USE.
CA UTION! DO NO T LOOK DO WN B ARREL! CA UTION! DO NO T LOOK DO WN B ARREL!
ME-6800
SHOR T RANGE
PR OJECTILE LA
UNCHER
WEAR SAFETY GLASSES – WHEN IN USE.
CA UTION! DO NO T LOOK DO WN B ARREL! CA UTION! DO NO T LOOK DO WN B ARREL!

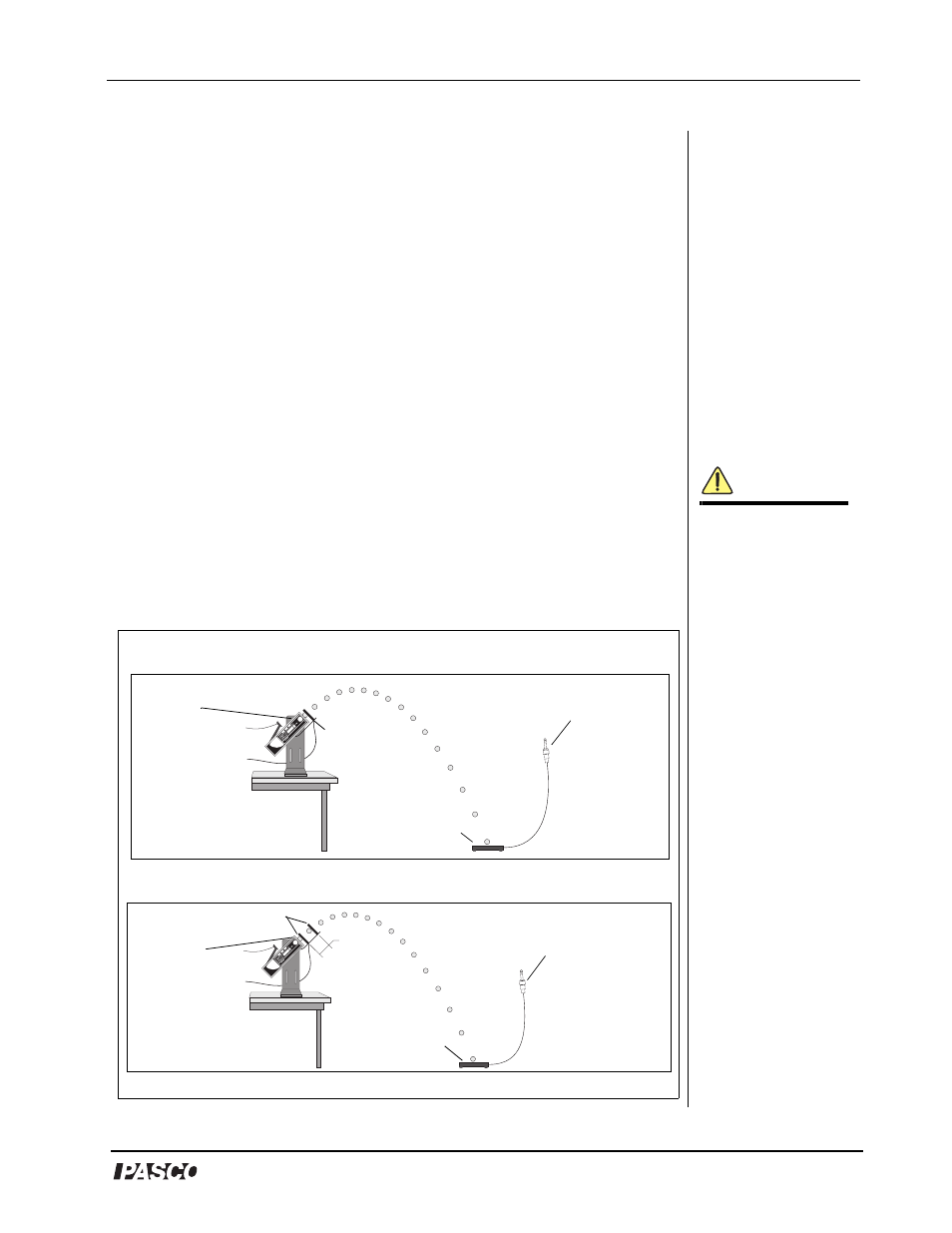

Time of Flight Study - Setup Using One Photogate
Time of Flight and Initial Speed Study - Setup Using Two
Projectile
Launcher
Plug to timer or interface
Time-of-Flight
Accessory
Accessory
Time-of-Flight
Plug to timer or interface
Photogate
2 Photogates
Projectile
Launcher
10 cm
Figure 1
CAUTION: For
projectile-based studies
with balls, use only 25
mm plastic balls or 16
mm steel balls. Using 25
mm steel balls will
damage the unit.
