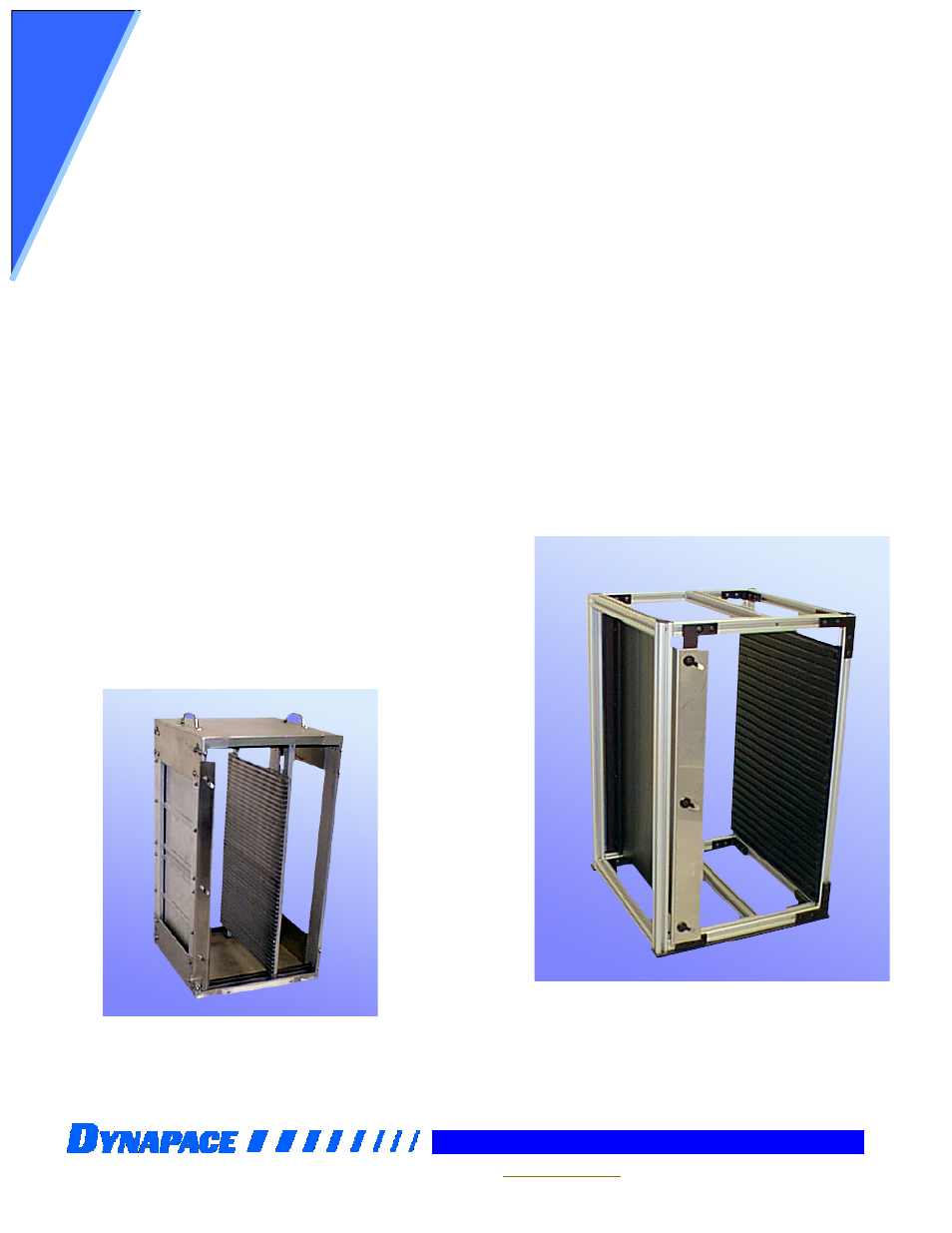

PCB MAGAZINES
P e o p l e a n d P r o d u c t s y o u c a n r e l y o n
Description:
High dimensional stability, precision and product safety are the
qualifications for using PCB magazines in an automated assembly process.
Dynapace's PCB magazines help reduce changeover time and increase
process safety due to our guaranteed parallelism of the side panels. This is
achieved via the implementation of precision spindles that allow for no
discrepancies.
S
tandard Features:
Precise and rapid adjustment to PCB width
Guide roller for fine adjustment
Transport safety gate to secure PCBs (Optional)
Consecutive numbering on the side panels
Support guides enable stacking of magazines
Various sizes available: Small 10x18” Medium 14x18” Large 16x18” plus custom sizes
PCB temperature capable to 248 F, High Temp available.
Material - Polysterol, conductive
EDS Safe
Product Handling Capability:
Edge Contact:
0.12" (3mm)
Width:
3.5” – varies (89mm – varies)
Thickness:
0.156" min. (3.96mm)
Above board clearance:
Varies by slot selection
Below board clearance:
Varies by slot selection
Total slots:
50 at .39" (top to top)
