DYNAPACE Turn Unit User Manual
Tte 300, Slide and turn unit - 90 degree
TTE 300
Slide and Turn Unit - 90 degree
P e o p l e a n d P r o d u c t s Y o u C a n R e l y O n
Module:

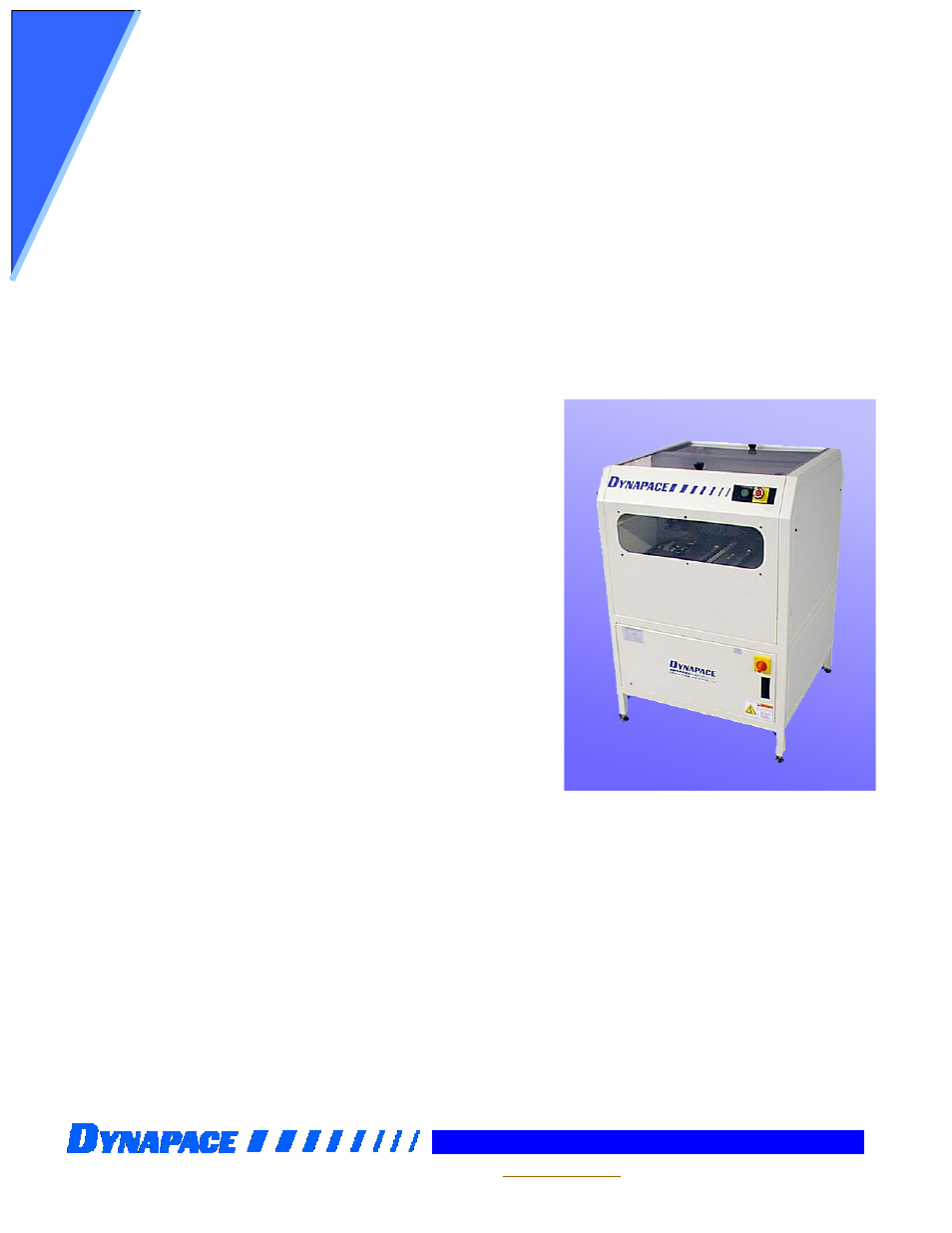

TTE-300 90 Degree Turn Unit
Frame Style:
Precision welded steel framing with painted panels
Description:
The slide and turn conveyor module is designed to accept a PCB and route as a
“pass through”, or “rotate and off-load” at 90 degrees.
Standard Features:
Programmable Logic Controller
Shuttle and turn operation
Variable speed (10-45 fpm) (3 – 13.7mpm) Other available
Precision slide, quick width adjustment
Operator controls (E-stop, Reset, ALT (0
°, 90°)
90 degree, right turn capable
Interlocked safety cover
Left to right travel, front fixed rail
Audible alarm
ESD grounding receptacle
Painted sheet metal panels, “Dynapace White”
Conforms to SMEMA Spec. 1.2 and NFPA 79
Includes 1 standard communication cable
Product Handling Capability:
Edge Contact:
0.187” (5mm) Others Available
Length:
5” – 18” (127 – 457mm)
Width:
3” – 18” (76 – 457mm)
Thickness:
0.031” minimum
Weight:
Up to 5 lbs (2.7kg) per foot
Above board clearance:
1” (25.4mm)
Below board clearance:
0.5” (13mm)
Facilities Requirements:
Electrical:
115 VAC/60 Hz 15 amp
Air:
N/A
Line height:
37” +/- 2” (940mm +/- 51mm)
with 6” above floor clearance for utility track
Footprint:
30”L x 30”W (762 L x 762mm W)
