VERTICAL MOUNTING
Installation and adjustment of the vertically mounted brake is the same as on the standard model.
Friction Disc Replacement
When replacing friction discs, follow procedure outlined on page 5 with this addition:
Care must be taken to insure proper insertion of disc separating springs. Springs are color coded for easy identification, and
reference is made to spring color (see Table 1 and Figure 9). Since the installation order of the disc springs is dependent on
brake mounting position (VO= vertical over or above motor; VU= vertical under or below motor), it is important to consult the
correct diagram for spring location.

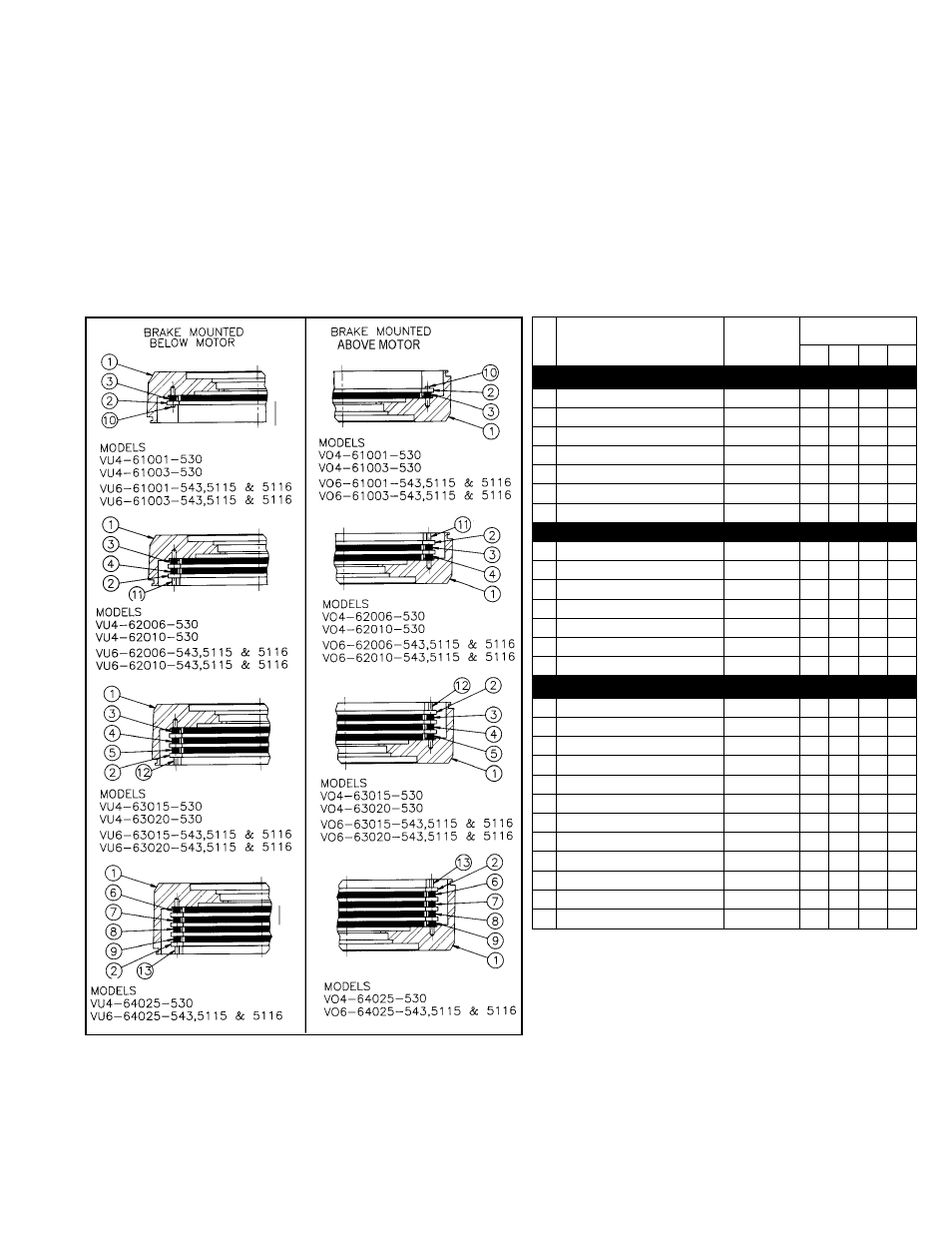

Table 1 Parts for Vertical Mounting
Figure 9
Item
No.
Description
Part No.
Qty. of Parts
(No. of rotating discs)
1
2
3
4
FOR MODELS 4-60000-530 & 6-60000-543
1 Bracket, 1 & 2 disc models, VO
L060266-011
1
1
1 Bracket, 3 disc model, VO
L060266-012
1
1 Bracket, 4 disc model, VO
L060266-013
1
1 Bracket, 1 & 2 disc models, VU
L060266-021
1
1
1 Bracket, 3 disc model, VU
L060266-022
1
1 Bracket, 4 disc model, VU
L060266-023
1
-
Cover with drain, VU (not shown)
K060465-011
1
1
1
1
FOR MODELS 6-60000-5116 & 6-60000-5115
1 Bracket, 1 & 2 disc models, VO
L060266-041
1
1
1 Bracket, 3 disc model, VO
L060266-042
1
1 Bracket, 4 disc model, VO
L060266-043
1
1 Bracket, 1 & 2 disc models, VU
L060266-051
1
1
1 Bracket, 3 disc model, VU
L060266-052
1
1 Bracket, 4 disc model, VU
L060266-053
1
-
Cover with drain, VU (not shown)
K060465-031
1
1
1
1
FOR ALL MODELS
2 Stationary disc, vertical mounting
H060203-004
1
2
3
4
3 Compression spring (silver)
G060350-001
2
2
2
4 Compression spring (black)
G060350-002
2
2
5 Compression spring (bronze)
G060350-003
2
6 Flotation spring (silver)
G060736-001
2
7 Flotation spring (black)
G060736-002
2
8 Flotation spring (bronze)
G060736-003
2
9 Flotation spring (red)
G060736-004
2
10 Roll pin, 1/8” dia. x 5/8” lg.
W005003-071
2
11 Roll pin, 1/8” dia. x 1” lg.
W005003-077
2
12 Roll pin, 1/8” dia. x 1-3/8” lg.
W005003-080
2
13 Roll pin, 1/8” dia. x 1-3/4” lg.
W005003-083
2
