60 Series End-Mount
Brake Instructions
NEMA 4 & NEMA 4X Enclosure
Bulletin No. BK4660 (8/07)
DESCRIPTION
These magnetic disc brakes are direct acting, electromagnetically released
and spring set. They use rotating friction and stationary disc contact to
supply positive brakeing action. They mount directly onto NEMA 56C,
143TC, and 145TC frame motors, on the end opposite the drive shaft.
Models 6-60000-543 and 6-60000-5115 are mounted directly to a motor
where a gasket between the brake and motor face prevents liquid media
from enering the brake.
Models 4-60000-530 and 6-60000-5116 are for TEFC motors or foot
mounting applications; brake design with hub seal prevents liquid media
from entering the brake through opeings in the motor fan cover or foot
mounting bracket.
Models 6-60000-543 and 4-60000-530 are standard end-mount series
NEMA 4 Enclosure.
Models 6-60000-5116 and 6-60000-5115 are washdown NEMA 4X end-
mount series (BISSC Std. #29).
WARNING: Do not install or use these brakes in
an explosive atmosphere.

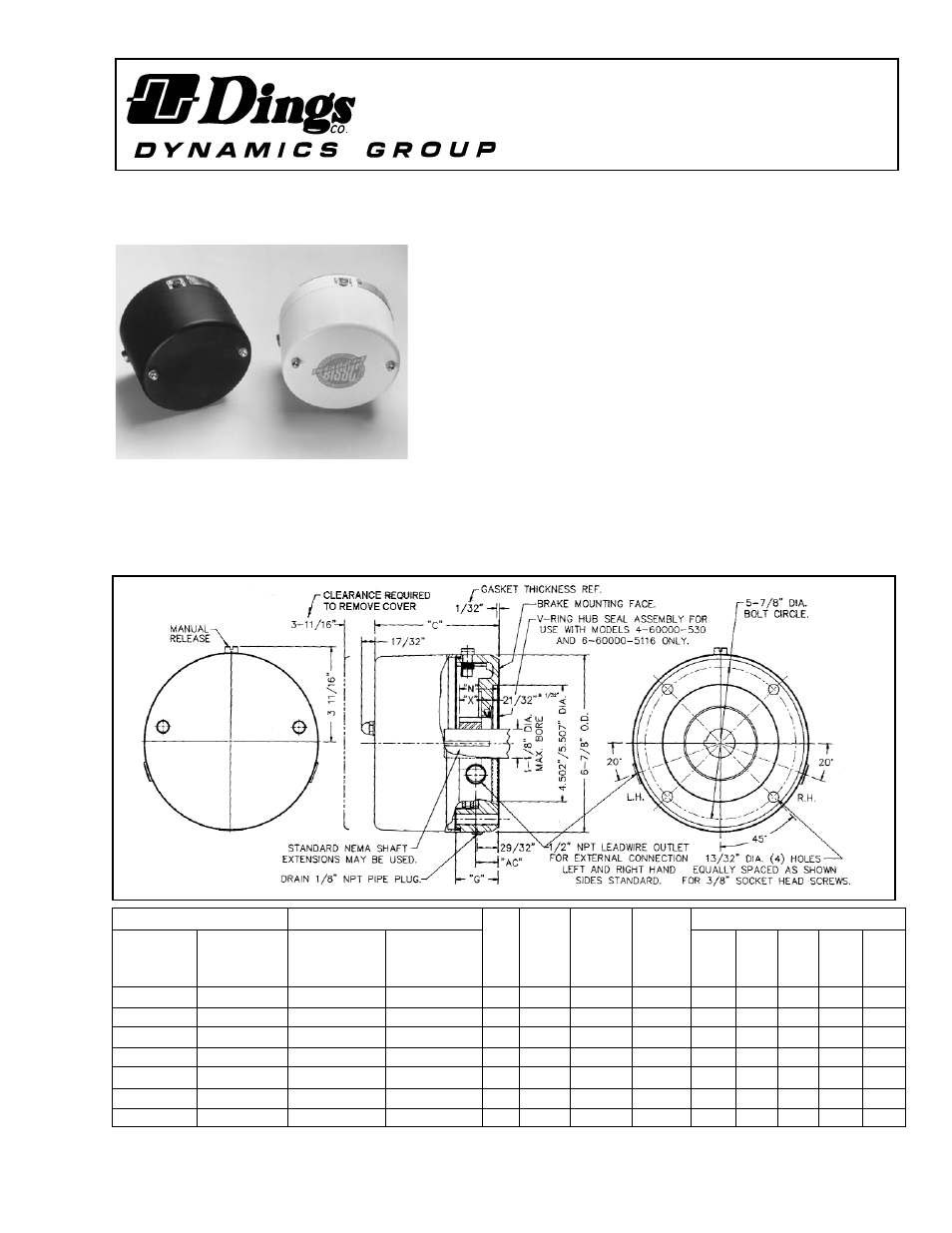

Figure 1
4740 W. Electric Avenue Milwaukee, WI 53219 414/672-7830 FAX 414/672-5354 www. dingsco.com
Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself
and others by observing all safety information. Failure to comply with instructions could result in personal injury
and/or property damage! Retain instructions for future reference.
*Thermal capacity (HPS/MIN.) was determined under the following test conditions: a) Room temperature 72 o F. b) Stopping time of one second or less.
c) Brake mounted in a horizontal position. d) Equal on and off times. e) 1800 RPM f) Coil energized with 110% of rated voltage.
**G Length of mounting hole through bracket
NEMA 4 NEMA 4X
NEMA 4 NEMA 4X
No.
of
Discs
Torque
Lb.Ft.
Thermal
Capacity
HPS/MIN*
Inertia of
Rotating
Parts
Lb.Ft. 2
Dimensions
Standard with hub seal Standard with hub seal C AC G** X N
6-61001-543 4-61001-530 6-61001-5115 6-61001-5116 1 1.5 6 .006 4.812 .937 1.625 .875 1.531
6-61003-543 4-61003-530 6-61003-5115 6-61003-5116 1 3 6 .006 4.812 .937 1.625 .875 1.531
6-62006-543 4-62006-530 6-62006-5115 6-62006-5116 2 6 6 .011 4.812 .937 1.625 .875 1.531
6-62010-543 4-62010-530 6-62010-5115 6-62010-5116 2 10 6 .011 4.812 .937 1.625 .875 1.531
6-63015-543 4-63015-530 6-63015-5115 6-63015-5116 3 15 6 .017 5.125 1.250 1.937 1.187 1.844
6-63020-543 4-63020-530 6-63020-5115 6-63020-5116 3 20 6 .017 5.125 1.250 1.937 1.187 1.844
6-64025-543 4-64025-530 6-64025-5115 6-64025-5116 4 25 6 .022 5.437 1.562 2.250 1.343 2.000
