Diamond Products CC4130E-XL - Manual (Page 56)

3
6
16
BLACK WIRE
MALE TO
SCALE 1 : 4
1
2
2
4
DETAIL A
15
FEMALE TO
RED WIRE
7
8
9
SCALE 1 : 4
DETAIL B
10
17 18
12
4
5
3
13
11
14

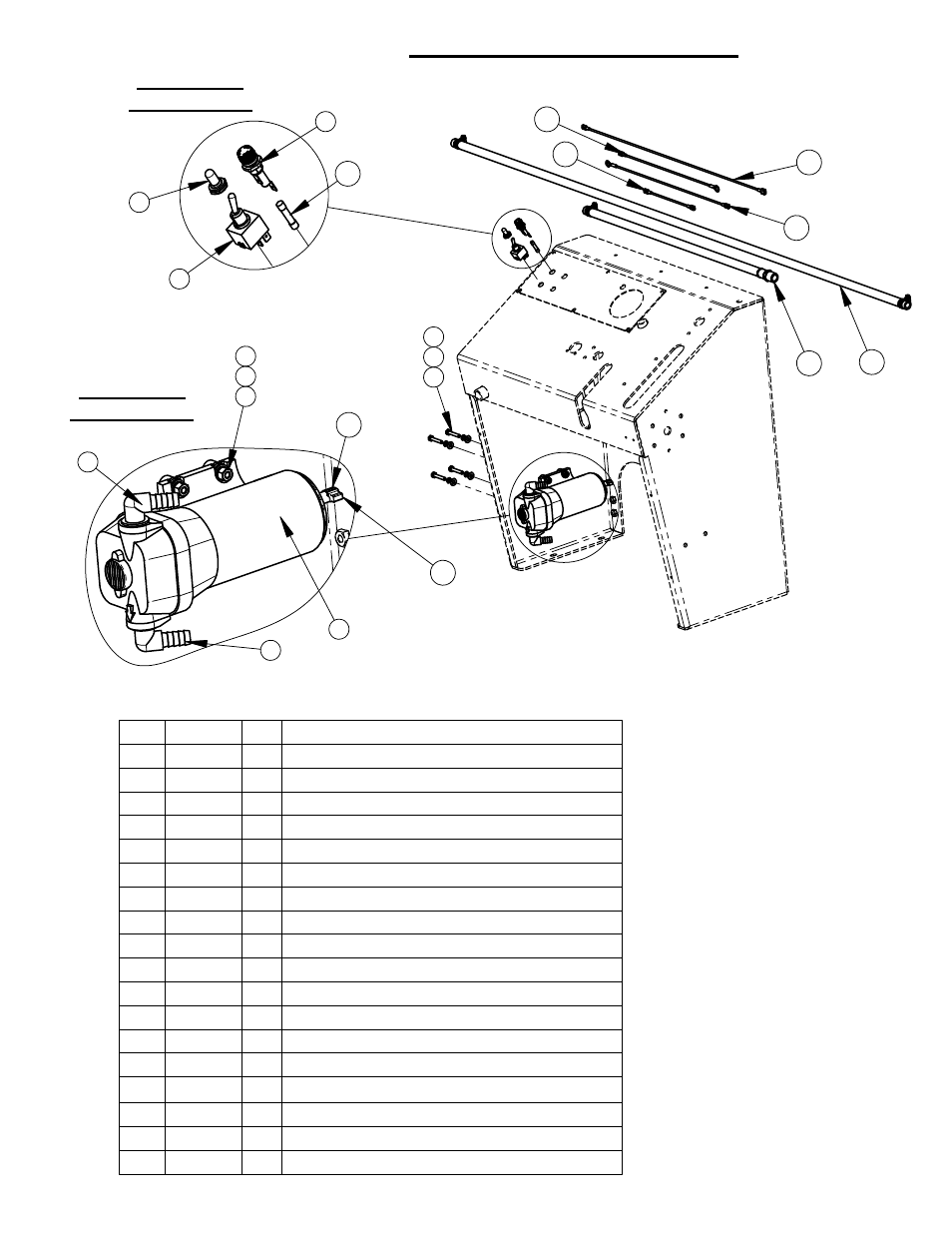

ITEM PART NO. QTY. DESCRIPTION
1 2600200 1 Water Pump, 12V Diaphragm
2 2701694 2 Port Fitting, 1/2" Barb x 90 Degree
3 2900009 8 Flat Washer, 1/4" SAE
4 2900024 8 Lock Washer, 1/4" Split
5 2900048 4 Cap Screw, Hex Hd., 1/4-20 x 1-1/2"
6 2900010 4 Lock Nut, 1/4-20 Nylon
7 2800062 1 Toggle Switch On/Off
8 2800063 1 Switch Boot
9 2800481 1 Fuse Holder
10 2800806 1 Fuse, 10 Amp
11 6011399 1 Wire Assy. Red, 14 Gage
12 4645161 1 Wire Assy., 14 Ga., Grn
13 6010999 1 Wire Assy. Red, 14 Gage
14 6011342 1 Wire Assy. Red, 14 Gage
15 2800074 1 QD Terminal, 1/4" Female (16-14 AWG) Blue
16 2800484 1 QD Terminal, 1/4" Male (16-14 AWG) Blue
17 6018255 1 Water Hose, 1/2 x 27"
18 6010992 1 Water Hose, 1/2 x 65"
6011348 WATER PUMP OPTION
56
