Diamond Products CC4130E-XL - Manual (Page 19)

19
9 13
SPRING TO
COTTER PIN
12
12
11
DETAIL A
10
3
SCALE 1 : 4
2
1
3
4
5
7
8
6
10
DETAIL B
18
14
21
17
SCALE 1 : 5
16
12
15
TO AXLE
PIVOT
SHAFT
SCALE 1 : 4
12
11
DETAIL C
10
SCALE 1 : 4
10
11
DETAIL E
20

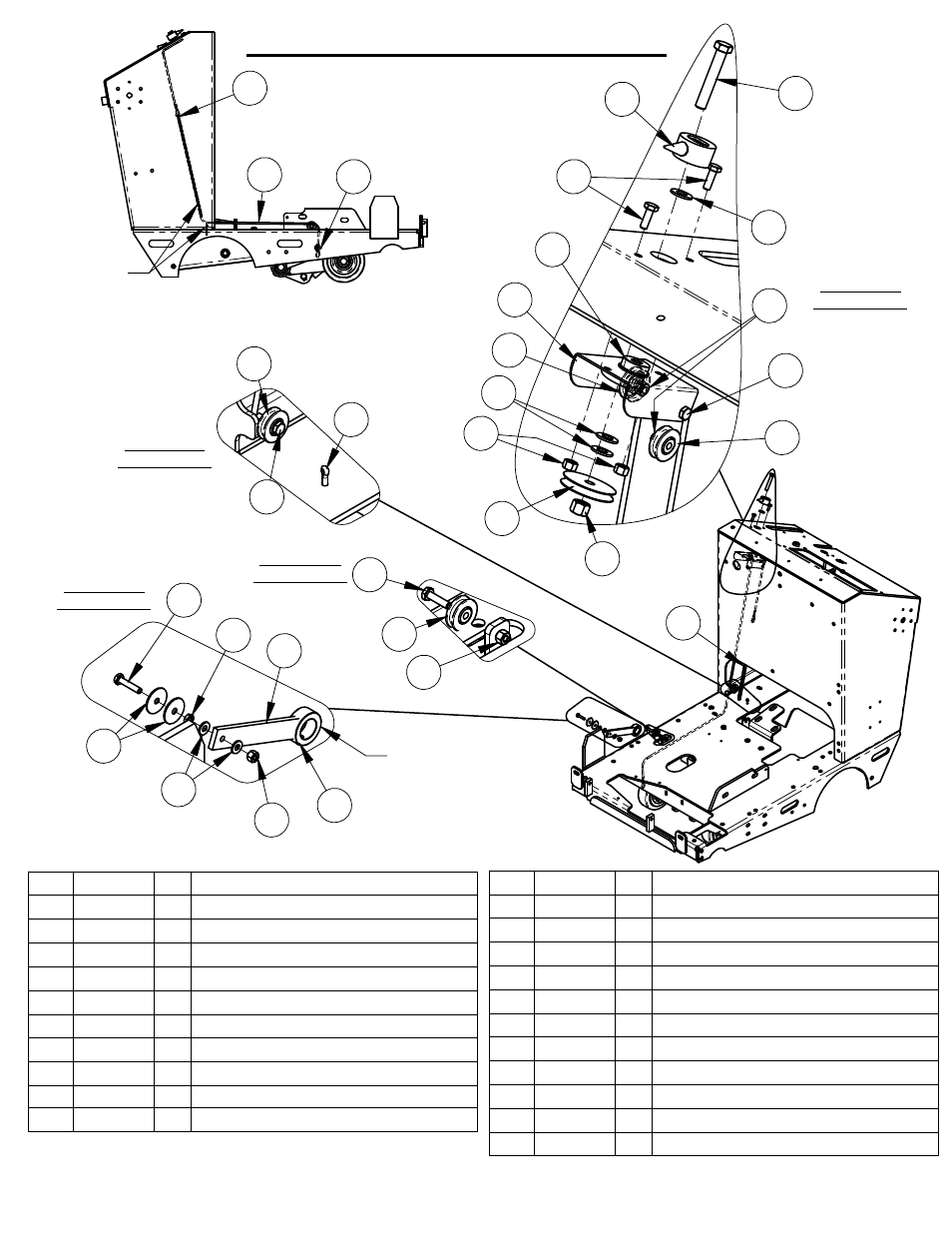

Depth Indicator Cable with Crimp, 59" 1 6010993 9
Cable Pulley, 1-1/4" 4 2500155 10
ITEM PART NO. QTY. DESCRIPTION
1 6010092 1 Depth Indicator Mount Bracket
2 2500145 1 Flange Bearing, 3/8"
3 2900014 3 Flat Washer, 3/8" SAE
4 6010091 1 Depth Indicator Pointer
5 2900079 1 Cap Screw, Hex Hd., 3/8-16 x 2-1/4"
6 2900144 2 Cap Screw, Hex Hd., 1/4-20 x 3/4"
7 6010093 1 Cable Pulley, 2"
8 2900018 1 Lock Nut, 3/8-16 Nylon
ITEM PART NO. QTY. DESCRIPTION
11 2900008 4 Cap Screw, Hex Hd., 1/4-20 x 1"
12 2900010 6 Lock Nut, 1/4-20 Nylon
13 2500214 1 Cable Clamp
14 2900083 2 Fender Washer, 1/4" x 1-1/4"
15 2900052 1 Cap Screw, Hex Hd., 1/4-20 x 1-1/4"
16 2900358 1 Jam Nut, 1/4-20
17 2900009 2 Flat Washer, 1/4" SAE
18 6045166 1 Depth Indicator Weldment
19 2500196 1 Spring, 3/8" x 15"
20 2900055 1 Cotter Pin, 3/16" x 1"
21 2900036 1 Set Screw, Soc. Hd., 5/16-18 x 1/4"
6011398 DEPTH INDICATOR ASSEMBLY
