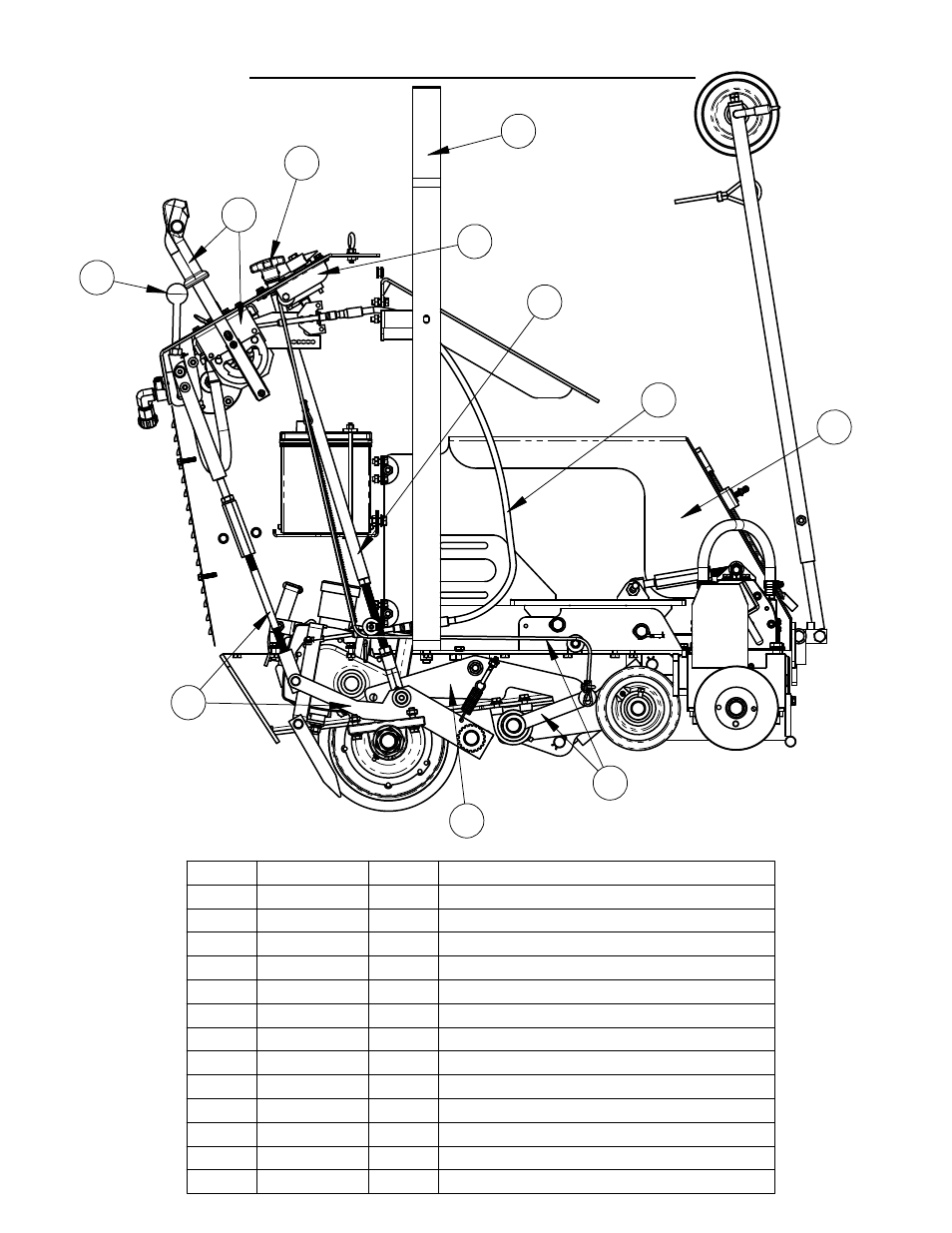

6011502 CC4130E TOP LEVEL ASSEMBLY

ITEM

PART NO.

QTY.

DESCRIPTION

1

6012198

1

Frame Assembly

2

6045352

1

Upright Console Assembly

3

6045038

1

Speed Control Assembly

4

6045497

1

Belt Guard Assy.

5

6045040

1

Depth Stop Assembly

6

6045033

1

Positraction Engagement Assembly

7

6011398

1

Depth Indicator Assembly

8

6012206

1

Lift Bar Assembly

9

6010998

1

Water Hose Assembly, 36"

10

6010896

1

Water Hose, 1/2 x 66"

11

2800072

1

Battery Cable, 30" Negative (Black)

12

2800071

1

Battery Cable, 21" Positive (Red)

13

6048092

1

Battery Cable Assy., Black

3

4

5

7

6

5

3

6

5

7

8

5
