Transmission assembly -34 – Diamond Products CC4130E-XL User Manual
Page 24
2900412
FOR RH THREADED
BOLTS ONLY
2901569
FOR LH THREADED
BOLTS ONLY
1.2"
1"
* NOTE
5/16-18 x 3/4"
Cap Screw, Hex Hd.,
Note
See
Note
See
3
2900019
ITEM PART NO. QTY.
DESCRIPTION
1
6018074
1
DP-3 3 Speed
Transmission
2
6011368
2
Transmission Mount
3
6045368
2
Skid Plate
4
6045364
2
Clamp Mounting
5
2900022
7
Flat Washer, 5/16" SAE
6
2900031
7
Lock Washer, 5/16" Split
7
2900217
4
Cap Screw, Hex Hd.,
5/16-18 x 1-1/4"
8
2900058
4
Flat Washer, 1/2" SAE
9
2900084
4
Lock Washer, 1/2" Split
10
2900466
4
Cap Screw, Hex Hd.,
1/2-13 x 5-1/2"
11
6045369
1
Frame Cover
12
ITEM PART NO. QTY.
DESCRIPTION
13
2503811
1
Taper Bushing, 1-1/2"
w/Setscrews
14
6045158
1
Sheave, 4"-3V-6 Groove
2012
15
6018217
1
Vent Tube Assembly
16
6045490
1
Tension Assembly
17
6010038
2
Inner Flange 6"
18
6010039
1
Outer Flange 6" with Pin
19
6045214
1
Flange Cover Weldment,
6"
20
2900146
1
Cap Screw, Hex Hd.,
5/8-11 x 4"
21
6010898
1
Water Hose, 1/2 x 14",
W/ Clamps
22
2900412
1
Lock Washer, Wedge
5/8"
23
2901569
1
Lock Washer, Wedge
5/8" LH
24
2900130
1
Cap Screw, Hex Hd.,
5/8-11 x 4" LH

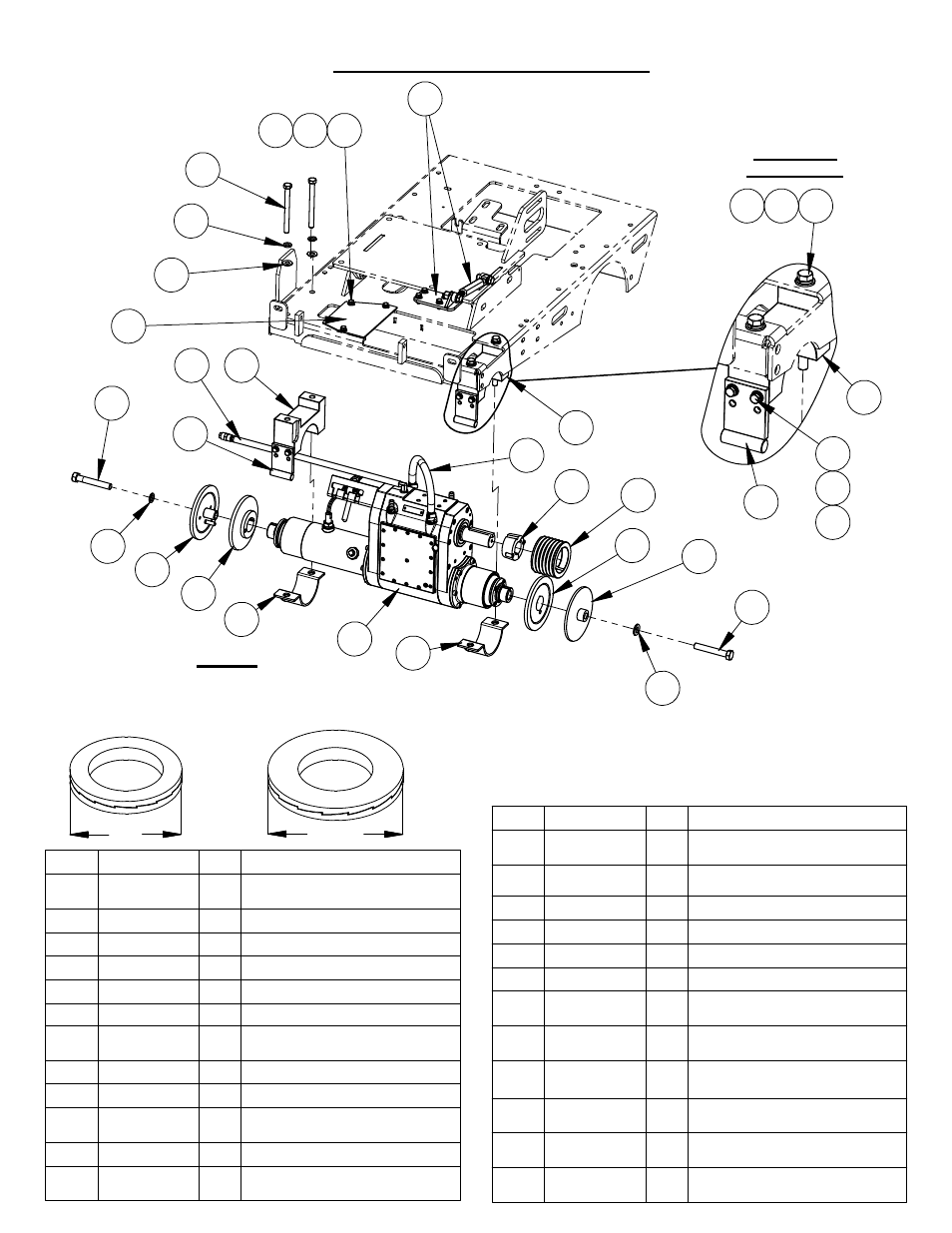

6045489 3 SPEED ASSEMBLY
5
12
1
2
23
*
4
4
3
10
9
8
24
20
14
13
2
17
19
17
6
18
11
21
22
16
15
*
7
5
3
SCALE 1 : 6
9
8
10
6
DETAIL A
2
24
