Diamond Products CC4130E-XL - Manual (Page 50)

1
5
7
6
13 13
11
10
9
12
8
15
18
16
10
14
20
19
4
3
21
2
17
22

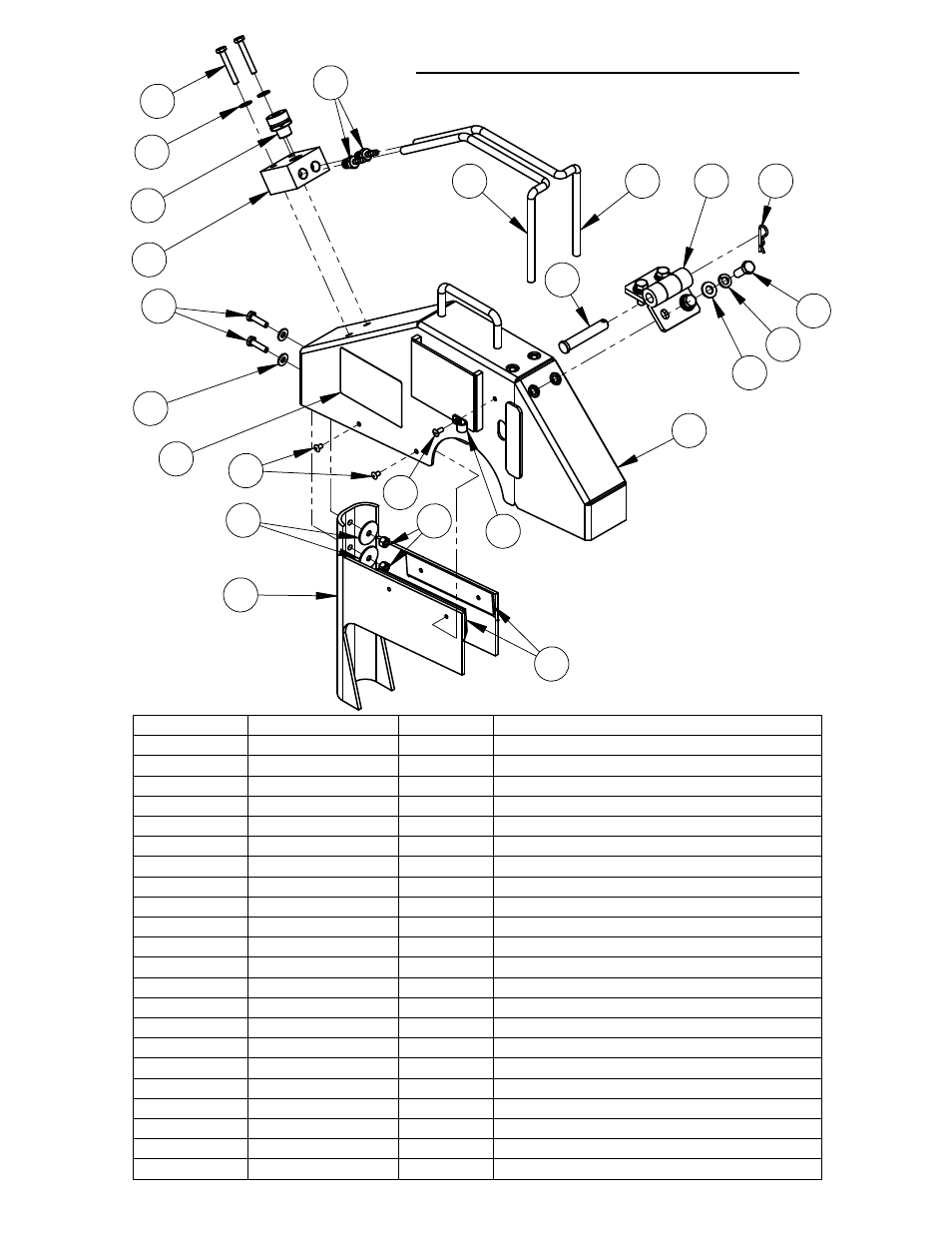

14" Blade Guard Assembly #6045419
ITEM PART NO. QTY. DESCRIPTION
1 6045424 1 14" Blade Guard Only
2 6041135 1 Hinge
3 2900014 4 Flat Washer, 3/8" SAE
4 2900006 4 Lock Washer, 3/8" Split
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045110 2 Hose, 1/4" x 3/8" x 15"
14 3200039 2 Clamp, 3/8"
15 2900201 2 Rivet, 3/16" Dia.
16 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
17 2900083 2 Fender Washer, 1/4" x 1-1/4"
18 2900010 2 Lock Nut, 1/4-20 Nylon
19 6045178 1 Splash Flap (CC4144D)
20 6045179 2 SPLASH FLAP RETAINING STRIP
21 2900071 4 Rivet, 3/16"
22 1802090 2 Label, Wedge Locking Washer
50
