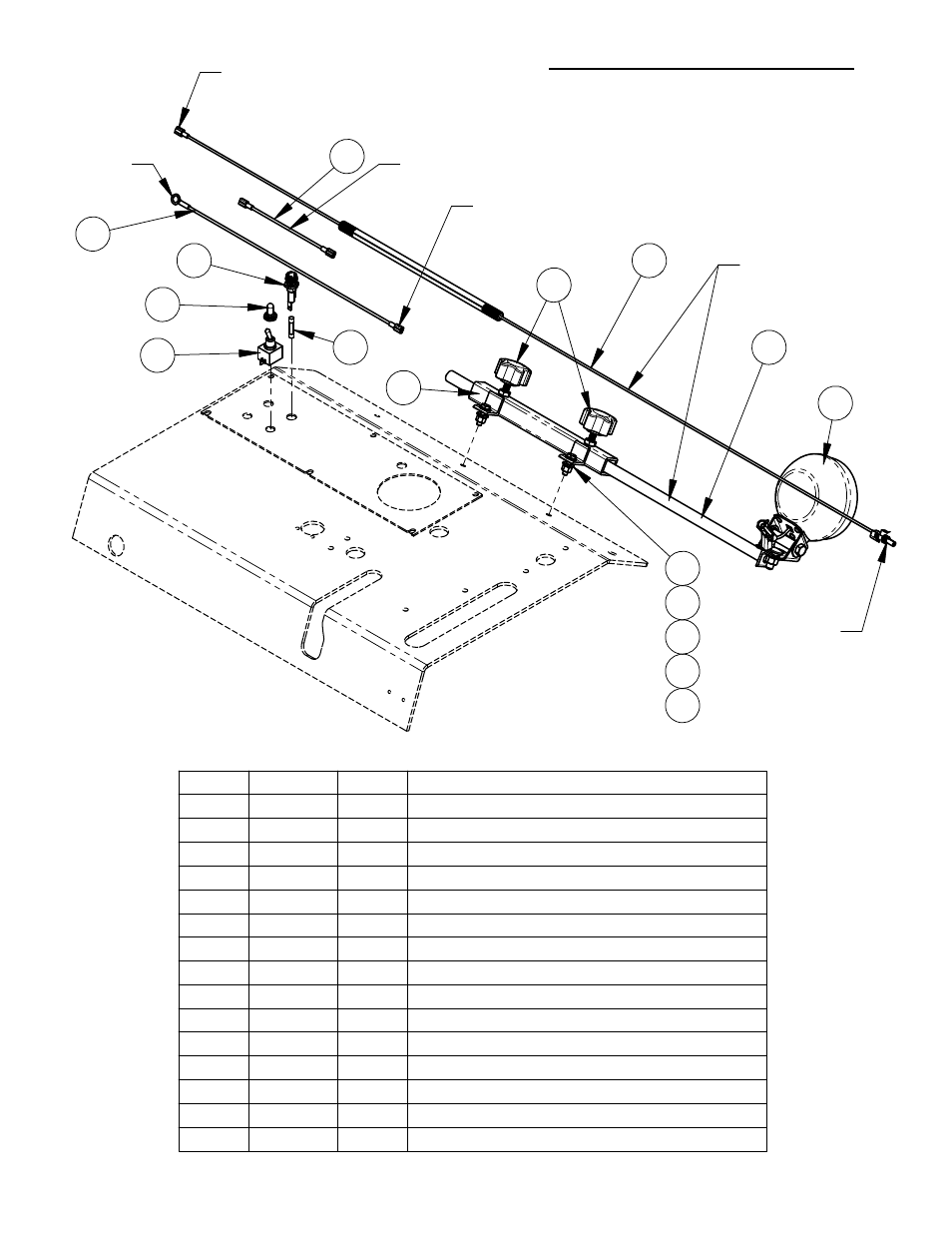

Spotlight option – Diamond Products CC4130E-XL User Manual
Page 55
9
6
TO SWITCH
8
3
TO LIGHT
14
10
FRAME TO FUSE
TOP CENTER OF
RUN THRU HOLE AT FRONT
15
5
13
2
5
7
4
FUSE TO SWITCH
12
11
BATTERY
PASS WIRE
THRU LIGHT BAR.
TO +
1
ITEM
PART NO.
QTY.
DESCRIPTION
1
6010107
1
Light Bar Mount Bracket
2
6010106
1
Light bar
3
6011719
1
Light, 12V Spot Assy.
4
2400157
2
Hand Lock Knob, 5/16-18 x 1"
5
2900009
4
Flat Washer, 1/4" SAE
6
2900008
2
Cap Screw, Hex Hd., 1/4-20 x 1"
7
2900024
2
Lock Washer, 1/4" Split
8
2900010
2
Lock Nut, 1/4-20 Nylon
9
2800062
1
Toggle Switch On/Off
10
2800063
1
Switch Boot
11
2800481
1
Fuse Holder
12
2800794
1
Fuse, 5 Amp
13
6010899
1
Wire Assy., 18 Ga., Red
14
6010999
1
Wire Assy. Red, 14 Gage
15
6011342
1
Wire Assy. Red, 14 Gage
6011490 SPOTLIGHT OPTION
55
