Motor & starter, soft start -49, Jackshaft, Scale 1 : 3 – Diamond Products CC4130E-XL User Manual
Page 46: Detail a, Detail b
QTY.
DESCRIPTION
1
2600320
1
Motor, 30hp Baldor
2
2900058
8
Flat Washer, 1/2" SAE
3
2900026
4
Lock Nut, 1/2-13 Nylon
4
2900119
4
Cap Screw, Soc. Hd., 1/2-13 x 3/4"
5
2500932
1
QD Bushing, SK x 1-7/8"
w/Fasteners
6
2500866
1
Sheave, 3V-6.90-8 Groove QD/SK
7
2500678
4
Vibration Isolator, 3/8-16
8
2800653
1
Soft Start Control Box
9
2900014
8
Flat Washer, 3/8" SAE
PART NO.
ITEM
ITEM PART NO. QTY.
DESCRIPTION
10
2900006
8
Lock Washer, 3/8" Split
11
2900033
8
Hex Nut, 3/8-16
12
2800339
1
Cord Grip, To 7/8", 90 Deg.
13
2800193
2
Lock Nut, 1"
14
6010994
1
Cable, 6 Gage, 4 Wire, 24"
15
2802056
2
Washer, Reducer, 2.62 - 1.36"
16
2800312
1
Connector, 1" Sealtite Elbow
17
2500793
6
V-Belt, 3VX425
18
2500037
1
V-Belt, 3VX375

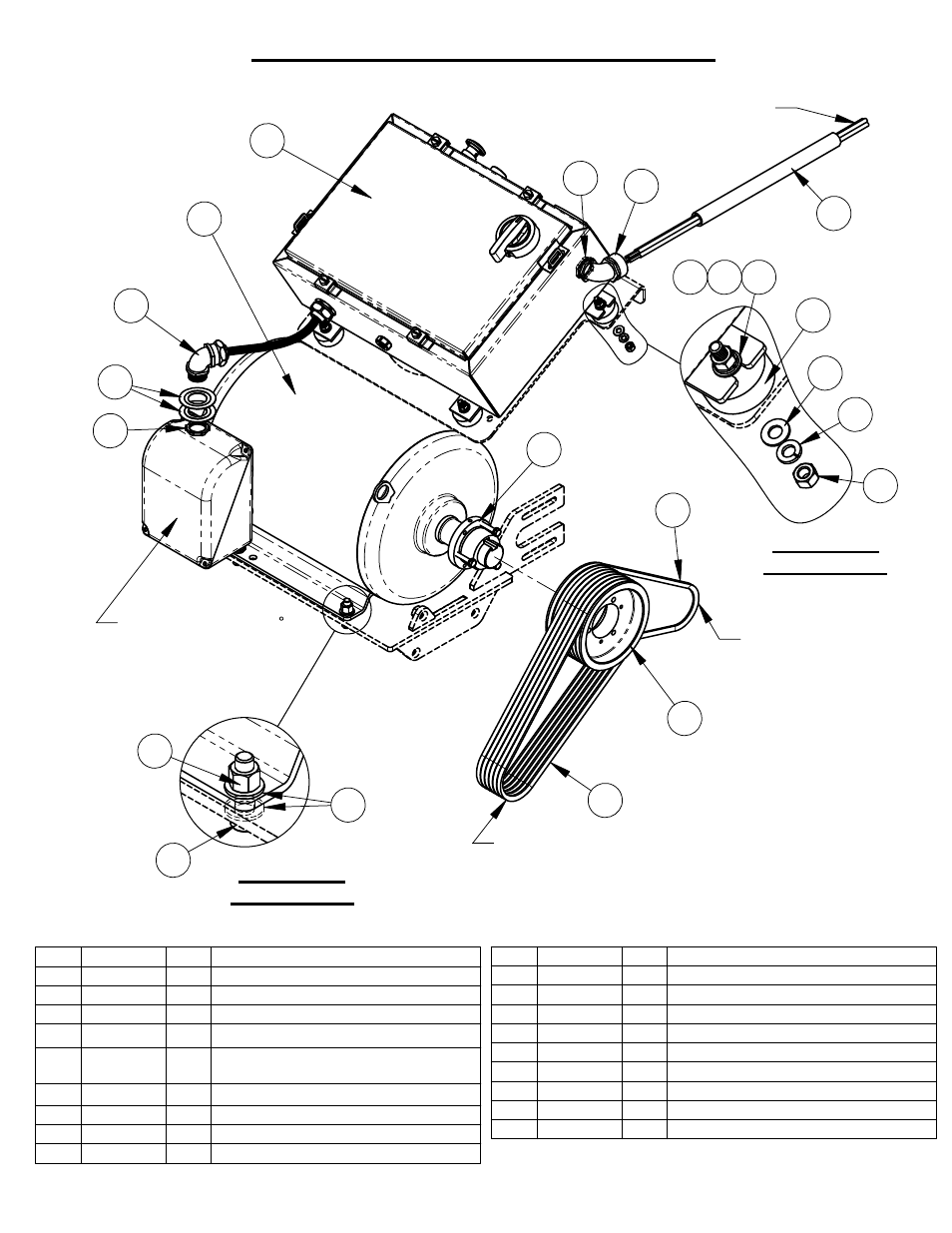

6047058 MOTOR & SOFT START ASSEMBLY
14
12
13
1
13
5
6
8
16
TO CUSTOMER
15
JACKSHAFT
18
17
TO TRANSMISSION
TO
SUPPLIED PLUG
ROTATE BOX 180 ,
CABLE HOLE
TO TOP.
SCALE 1 : 3
3
DETAIL A
2
4
10
11
10
SCALE 1 : 3
7
9
DETAIL B
9
11
46
