ITEM PART NO. QTY. DESCRIPTION
1 6045426 1 26" Blade Guard Only
2 6041135 1 Hinge
3 2900006 4 Lock Washer, 3/8" Split
4 2900014 4 Flat Washer, 3/8" SAE
5 2900005 4 Cap Screw, Hex Hd., 3/8-16 x 1"
6 2900607 1 Clevis Pin, 1/2" x 2-3/4"
7 2900262 1 Hairpin Cotter
8 6045162 1 Water Manifold
9 3200002 1 Fitting, 3/8" M. Pipe to 3/4" M. Garden
10 2900009 4 Flat Washer, 1/4" SAE
11 2900392 2 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
12 3200019 2 Fitting, 1/4" M. Pipe to 1/4" Hose Barb
13 6045106 2 Hose, 1/4" x 3/8" x 25"
14 3200039 4 Clamp, 3/8"
15 2900201 4 Rivet, 3/16" Dia.
16 2900008 2 Cap Screw, Hex Hd., 1/4-20 x 1"
17 2900083 2 Fender Washer, 1/4" x 1-1/4"
18 2900010 2 Lock Nut, 1/4-20 Nylon
19 6045174 1 Splash Flap (CC4144D)
20 6045172 2 Splash Flap Retaining Strip (Long)
21 2900071 8 Rivet, 3/16"
22 1802090 2 Label, Wedge Locking Washer
8
12
6
2
4
21
7
13
13
10
9
20
10
16
19
17
15
5
14
11
3
1
18
22

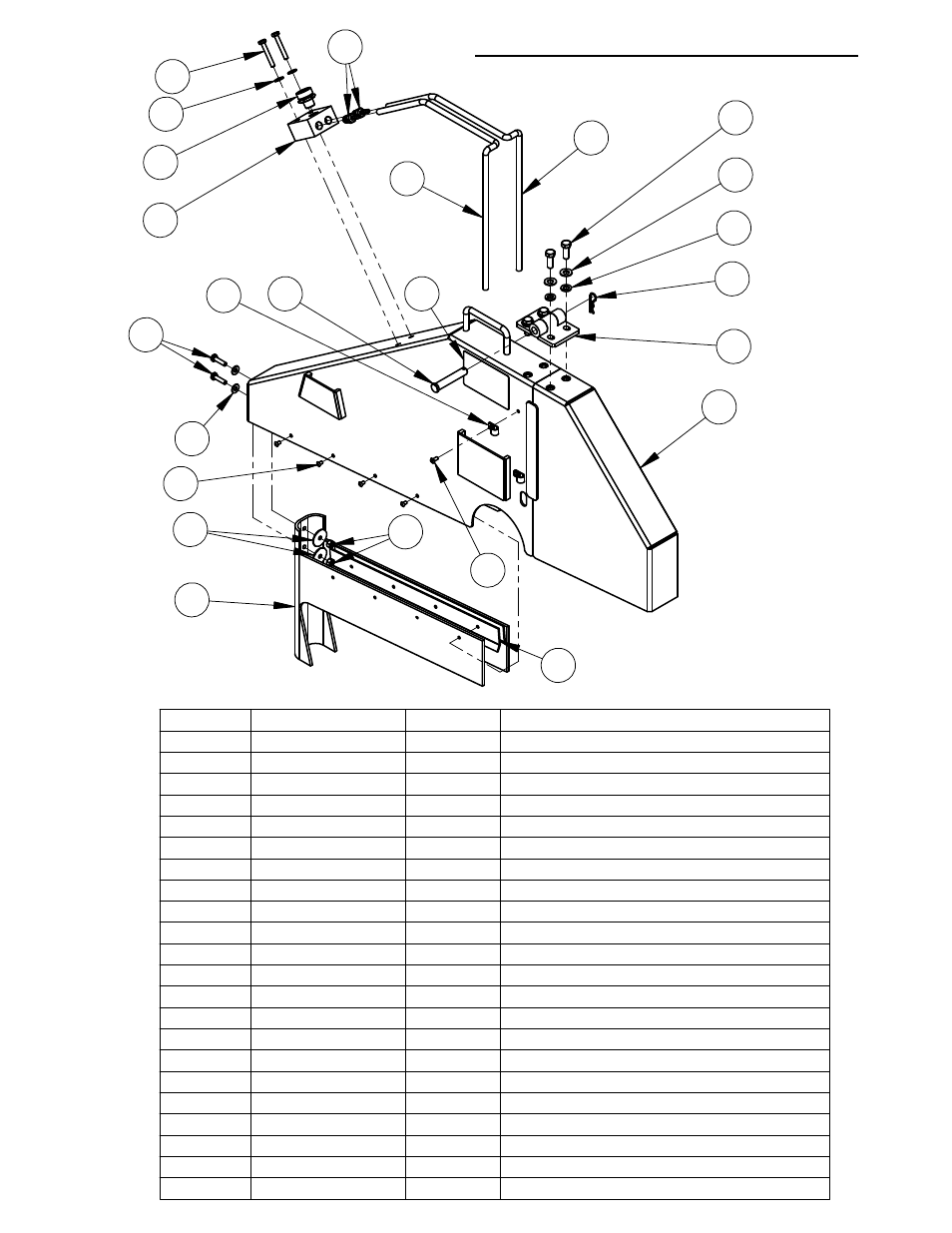

26" Blade Guard Assembly #6045421
