2
„ Scheduled recording (00:00~23:00 set by hour )
„ Search for recorded video files by date/time/event
„ Input/Output: 4 sensor inputs and 1 relay output control
„ Audio In/Out: 4 audio in and 1 audio out

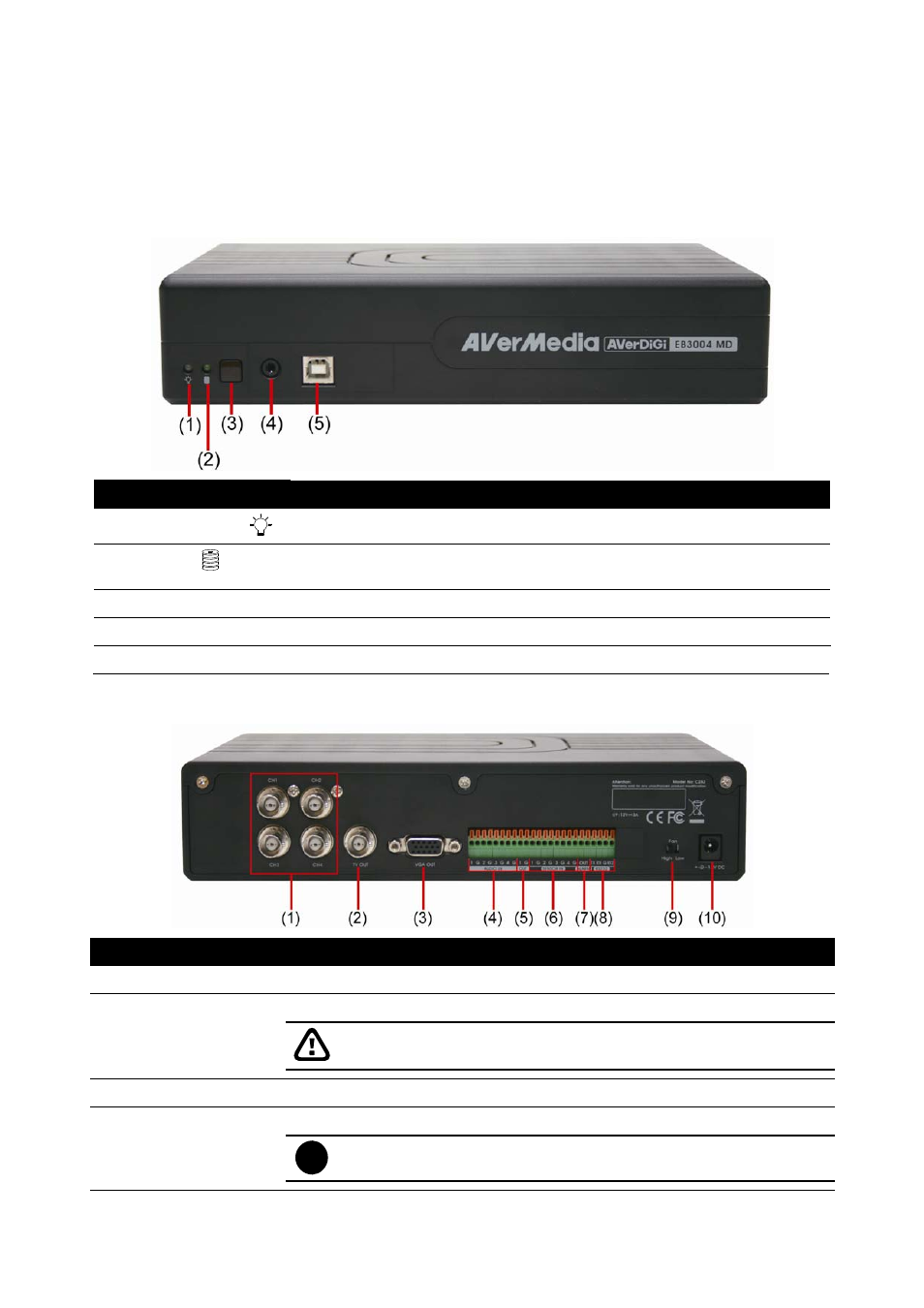

1.3 Front Panel
Name Function
(1) DVR Power LED
Light when the unit is power on
(2) HDD LED
Indicate the hard disk running state. Light when the HDD is running
(Read/Write)
(3) IR Sensor Receive signal from the remote control to operate the unit
(4) IR Sensor Port To connect extended IR sensor cable(optional)
(5) USB 2.0 Port Connect to PC for video transfer or playback
1.4 Back Panel
Name Function
(1) CH1/CH2/CH3/CH4 Input the video camera signal and display it on channel 1/2/3/4
(2) TV Out Output the video signal to other video output device through BNC port
The DVR unit support 2 video output ports and you can only select
to output the video either from the VGA OUT or VIDEO OUT
(3) VGA OUT Output the video signal to a CRT or LCD monitor
(4) Audio Out Input the audio signal from audio output device such as microphone
i
The audio input device has its own power supply is necessary.
