HVLS-1000 Series Fluid Section Manual
Rev. 05/2012 Page | 28
Optional Packing & Packing Sets:
02158-4
Packing Set - Standard
HVLS-1040 CUP SEAL – MAGNAPAK – use with special packing nut & bushing
HVLS-1010-U PACKING, PER EACH - UHMW
Optional Piston Cups / Cup Seals:
HVLS-1022-U
Piston Cup Seal – UHMW
Magnapak Fluid Sections: (see HVLS-1040-CK)
The Magnapak fluid sections replace the packing set and piston cups with a different setup.
Most of the procedures will be the same as above procedure except as shown below.
1. Lightly grease the Cup Seals (HVLS-1040) with Red Grease (6706-2-1).
2. Install the two Cup Seals (HVLS-1040) into the top of the Outlet Body.
3. Pack the Bushing (HVLS-1032) with Red Grease (6706-2-1) and install into the Outlet Body
on top of the Cup Seals.
4. Lightly grease the threads of the Retaining Nut (HVLS-1031) and thread into the top of the
Outlet Body snug.
Note: Only use PAT-LS-OIL or Gun Oil (6706-3-XX) to lubricate the Magnapak Seal
set in the Retaining Nut.
o
PAT-LS-OIL 8 Ounces
o PAT-LS-OIL-1GL 1 Gallon
o PAT-LS-OIL-5GL 5 Gallons
o 6706-3-1 1 Ounce Bottle – Pro Gun Oil
o 6706-3-8 8 Ounce Bottle – Pro Gun Oil
o 6706-3-16 16 Ounce Bottle – Pro Gun Oil
o 6706-3-32 32 Ounce Bottle – Pro Gun Oil

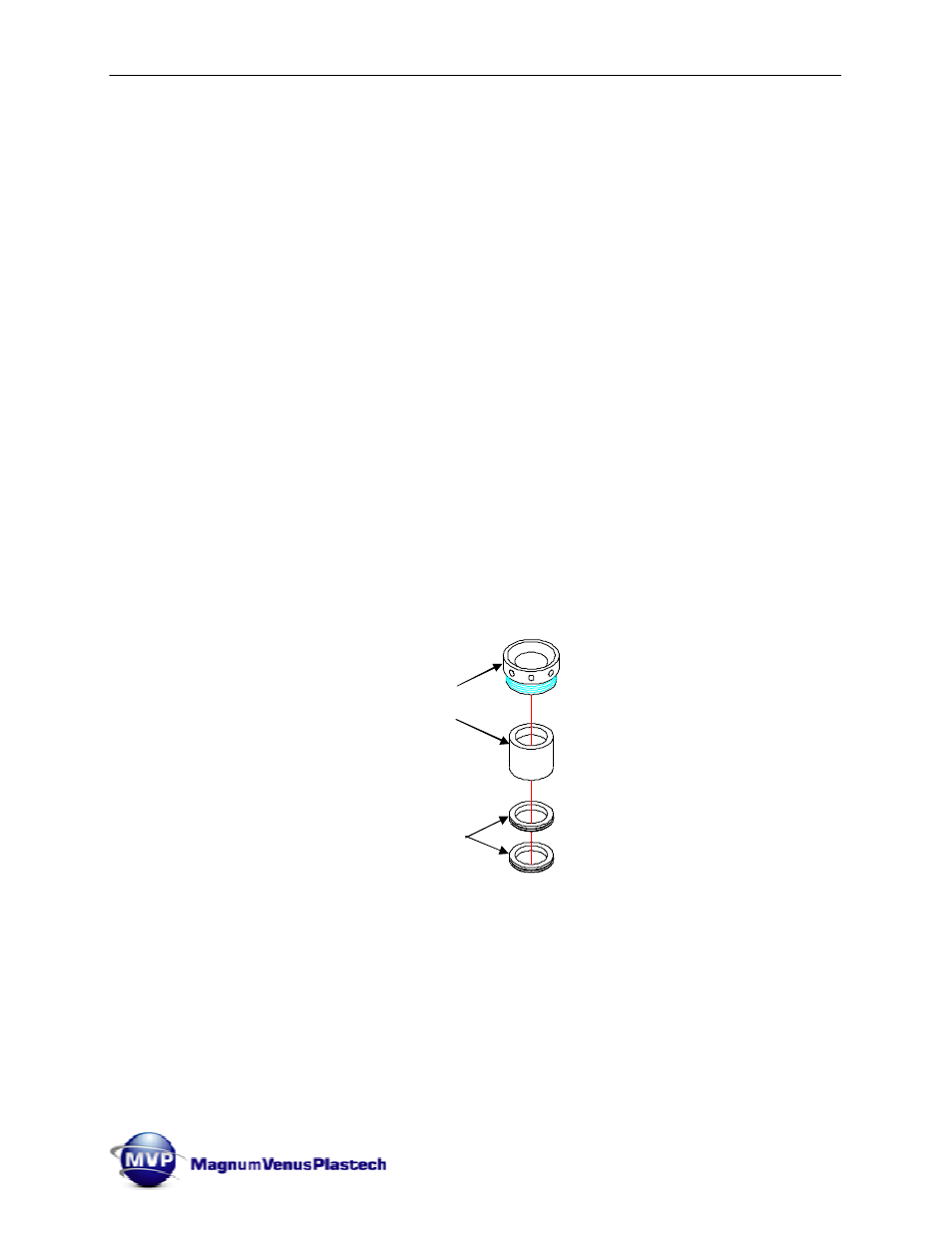

Retaining Nut
Bushing
Cup Seal
